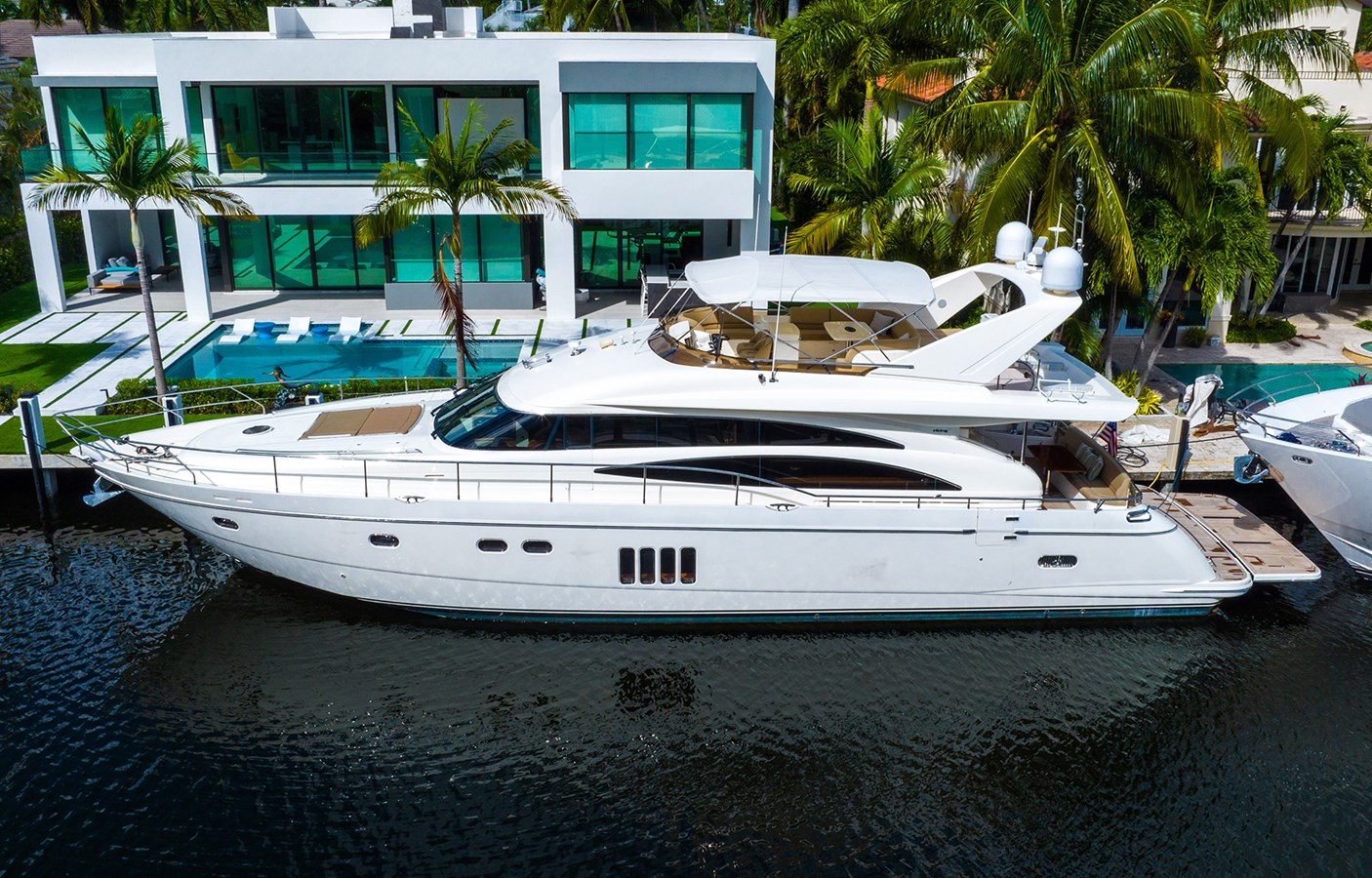

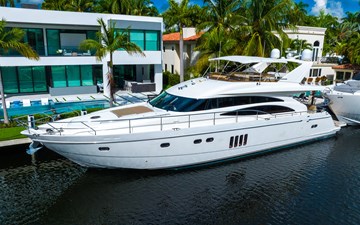

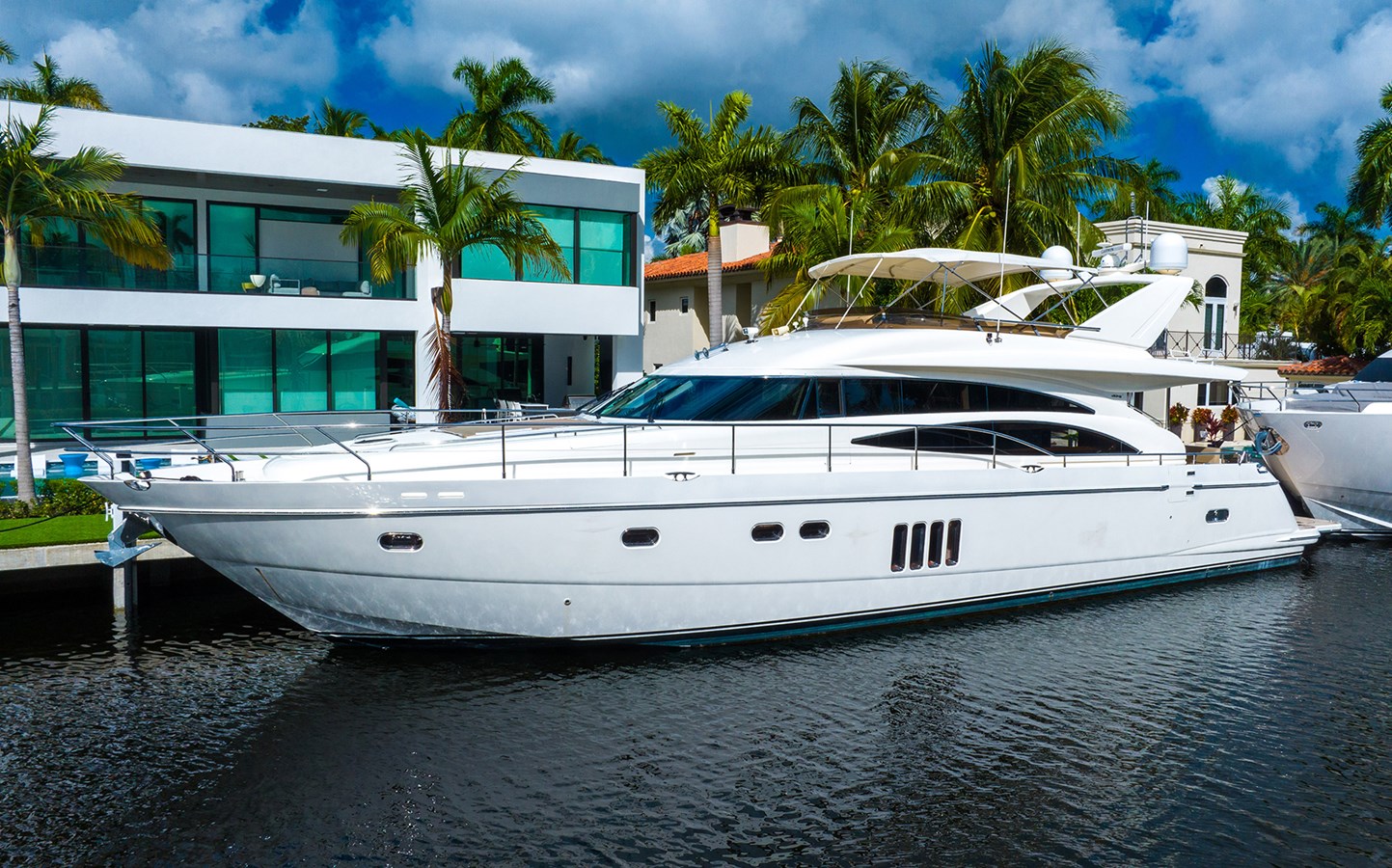

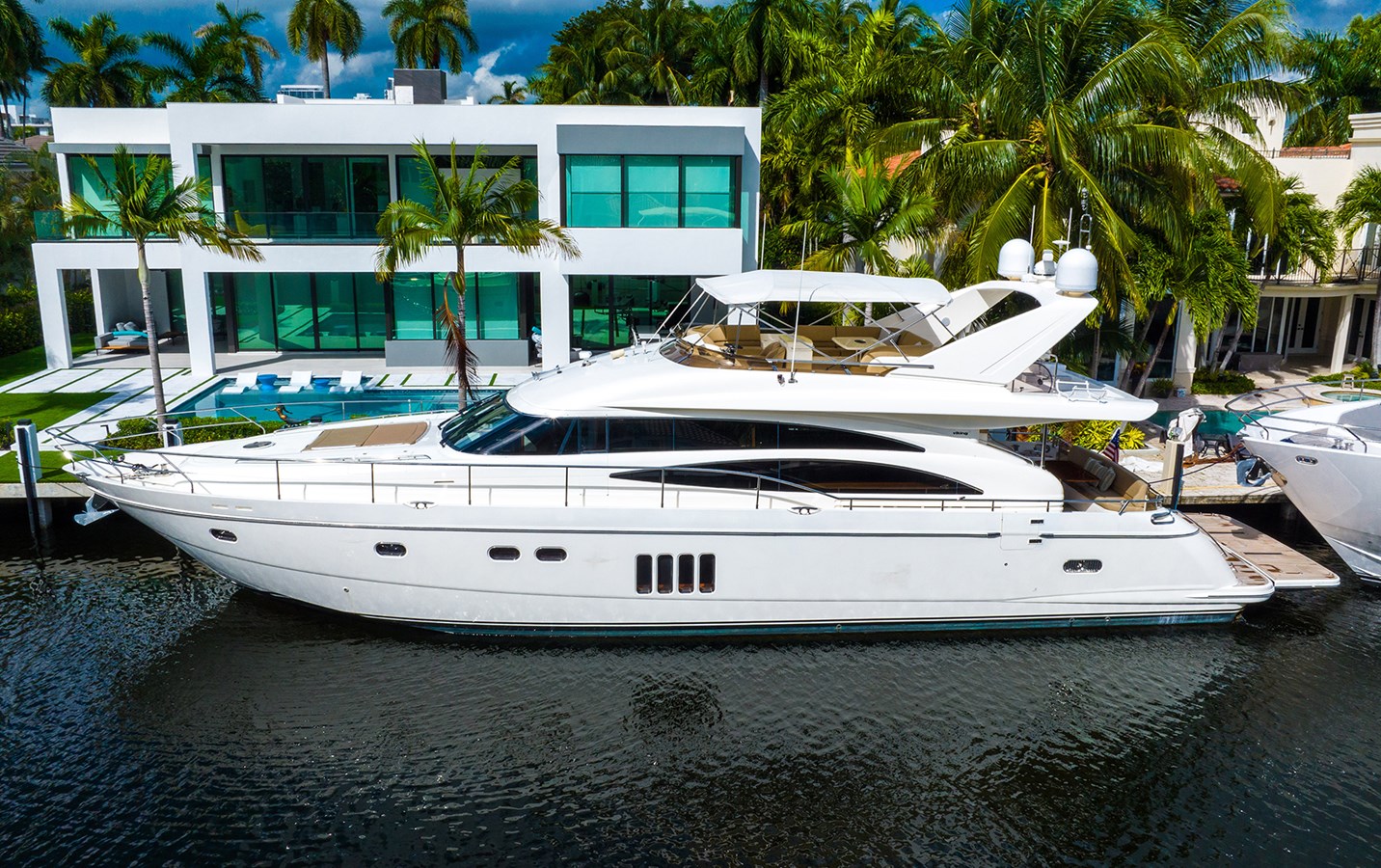

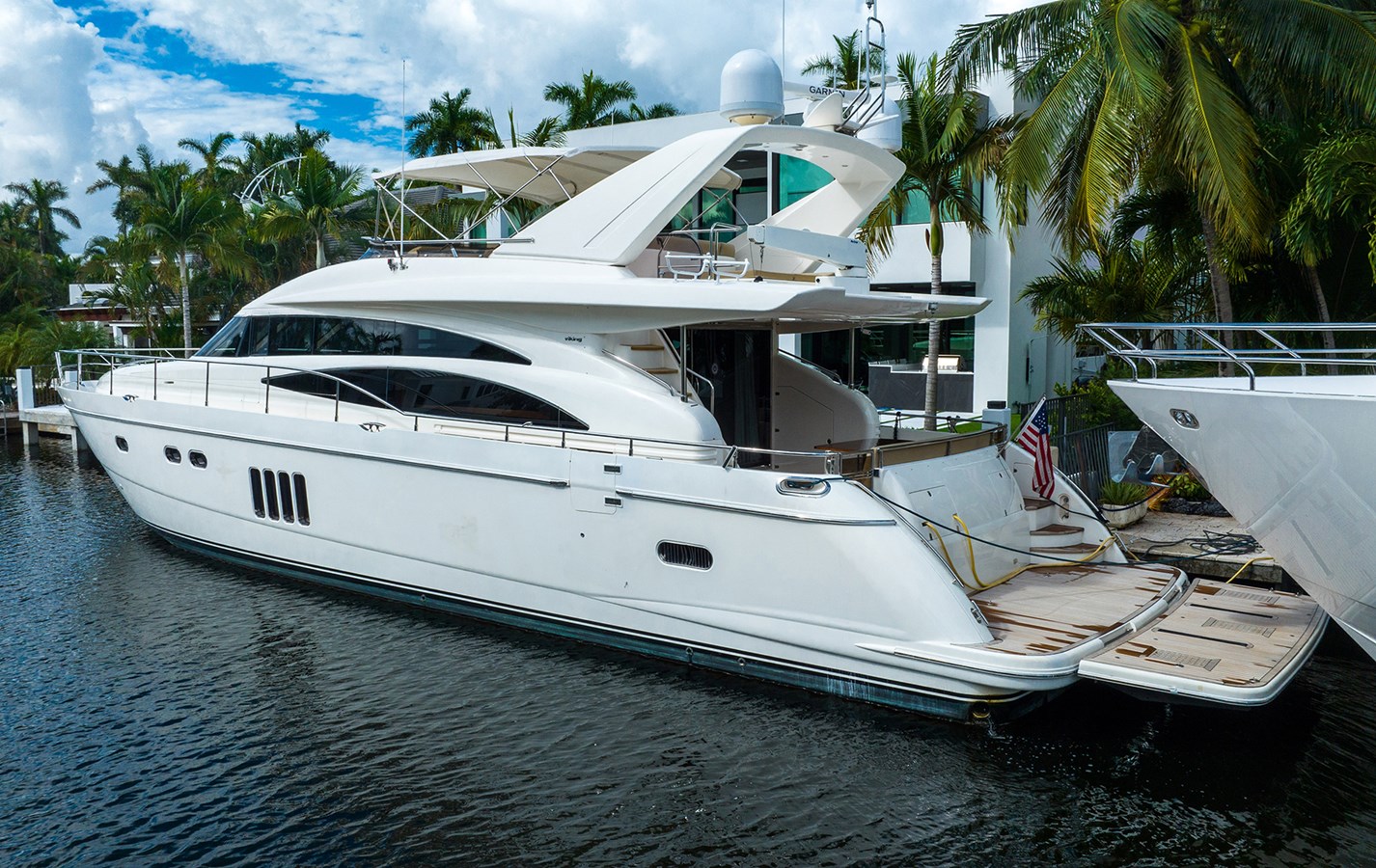

EMPIRE SUN

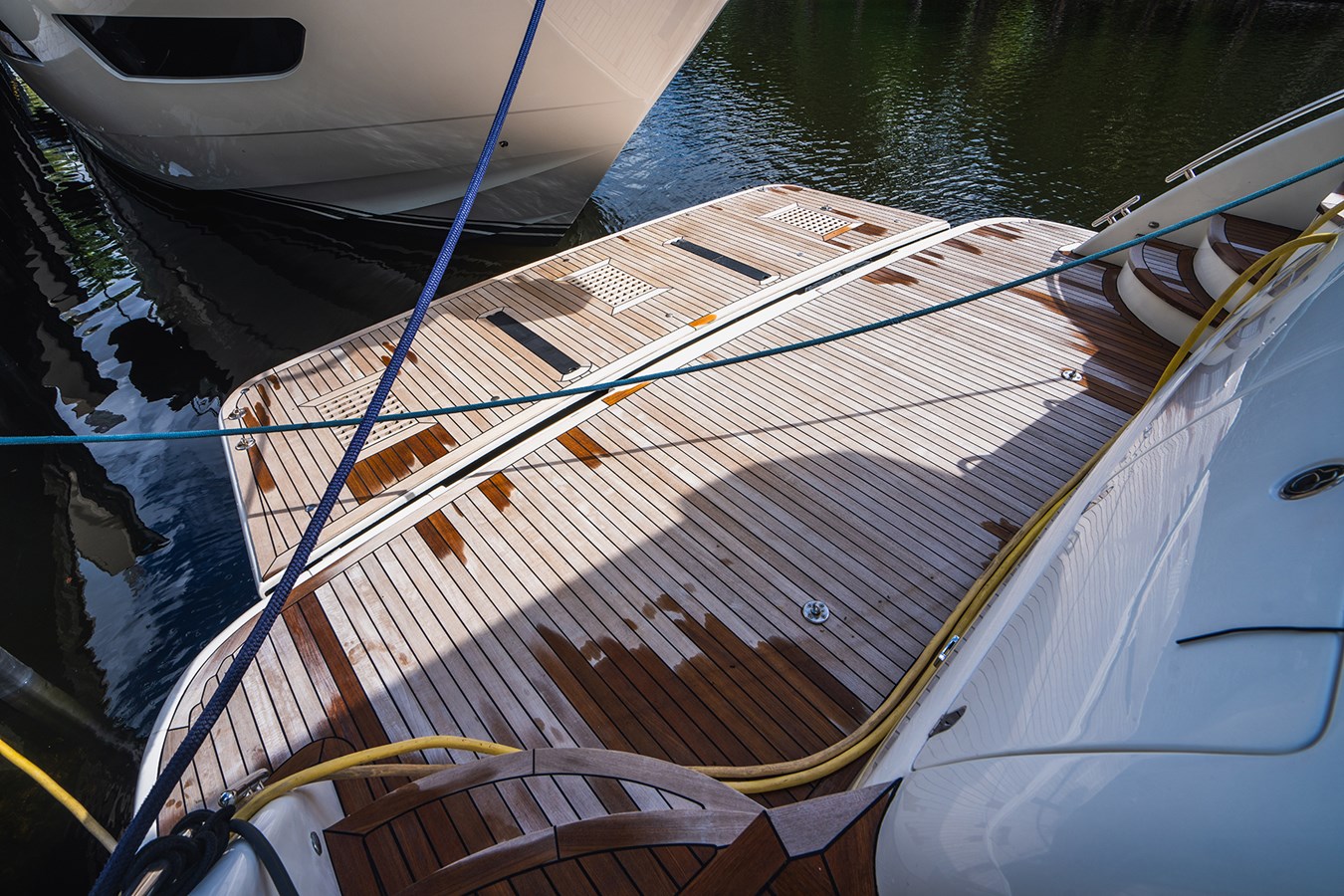

Features of this yacht include MAN diesels with 1,800 hours, two Seakeepers, new headliner in 2022, AC chiller system upgrade 2021, new Garmin electronics in 2019, new hydraulic swim platform in 2018, all new air handlers, teak decks replaced, new carpets, two sets of linens for beds included – 1 stock, 1 custom (see photos), 5 staterooms, 4 heads.

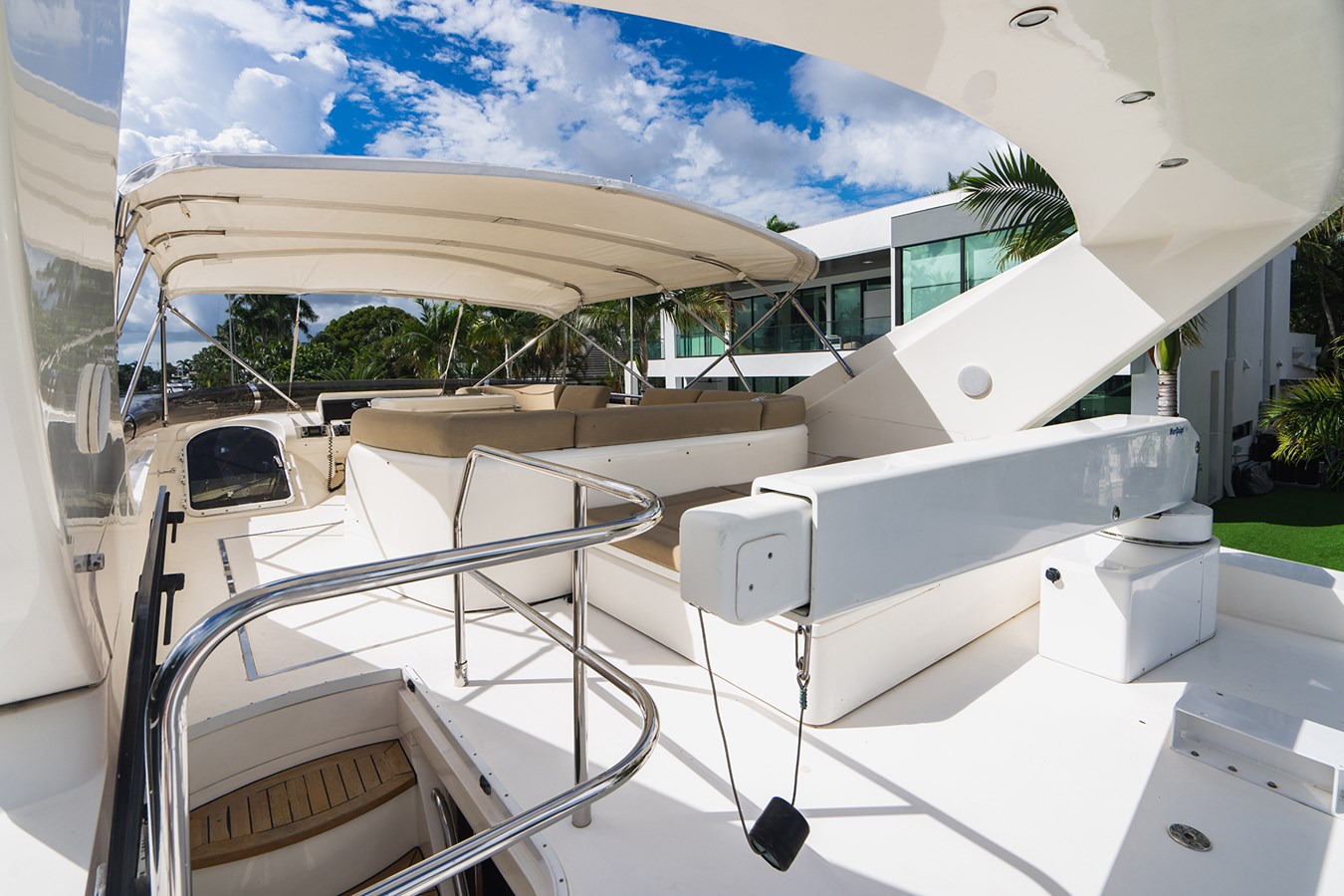

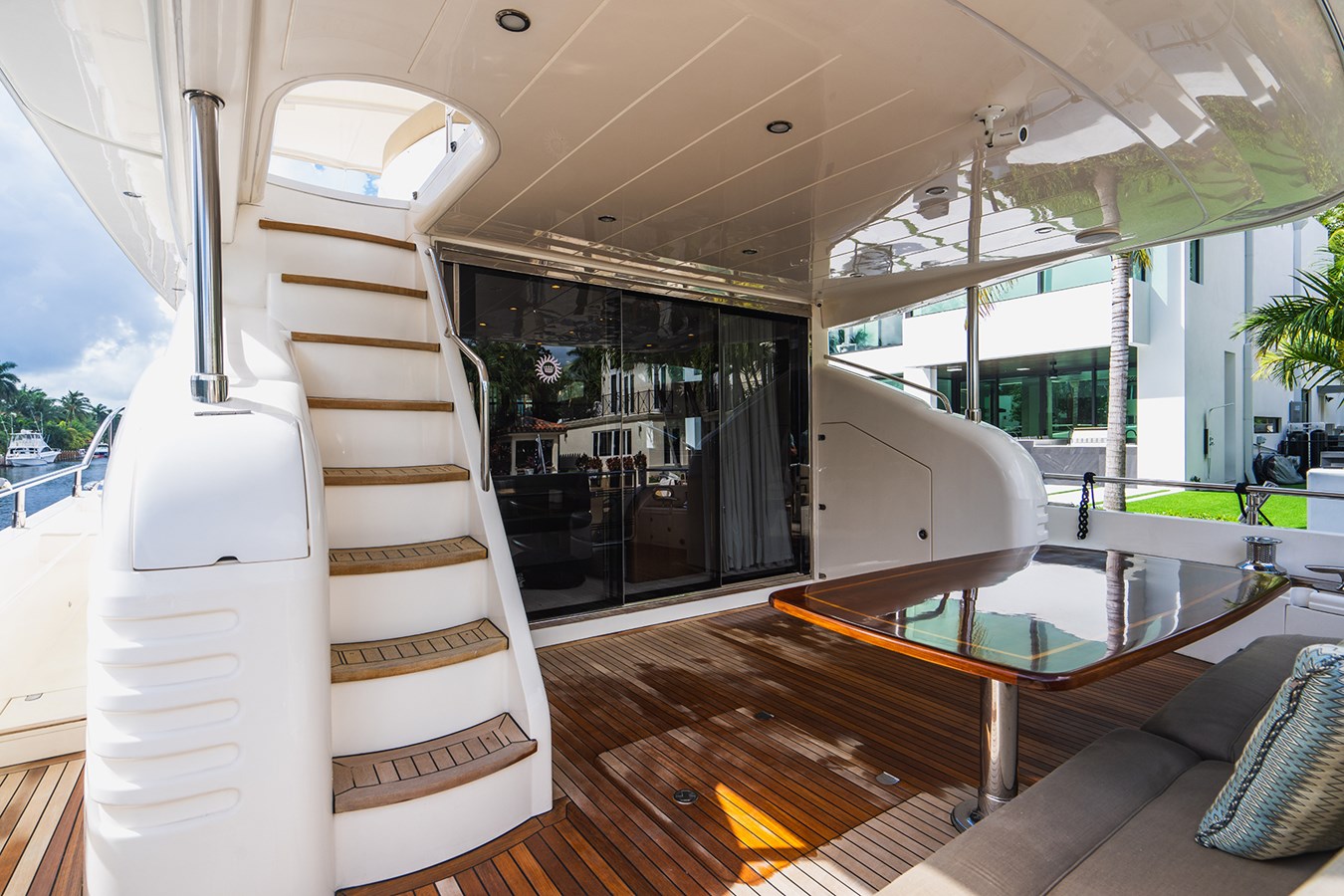

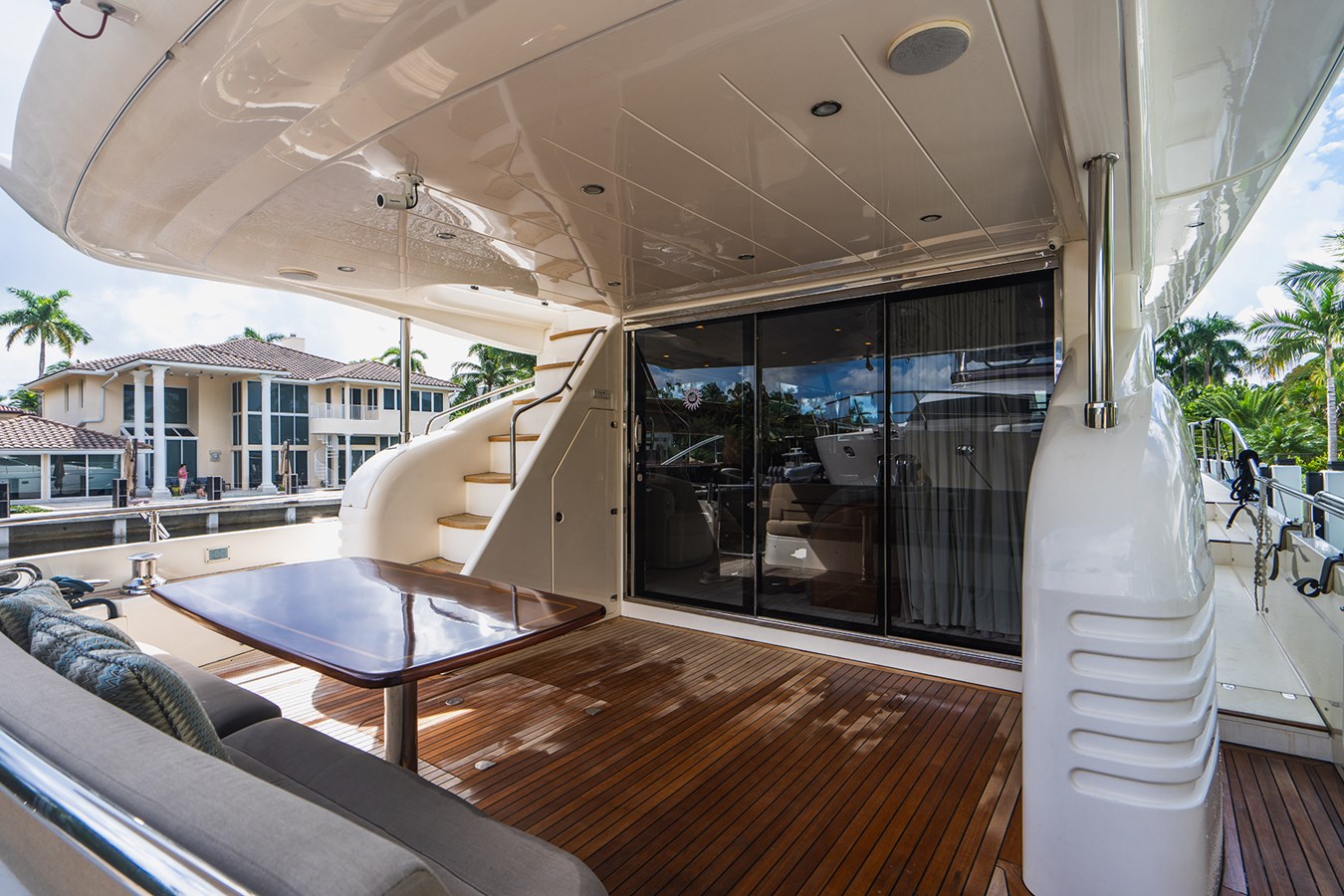

Exterior

• Rocket type rod holders

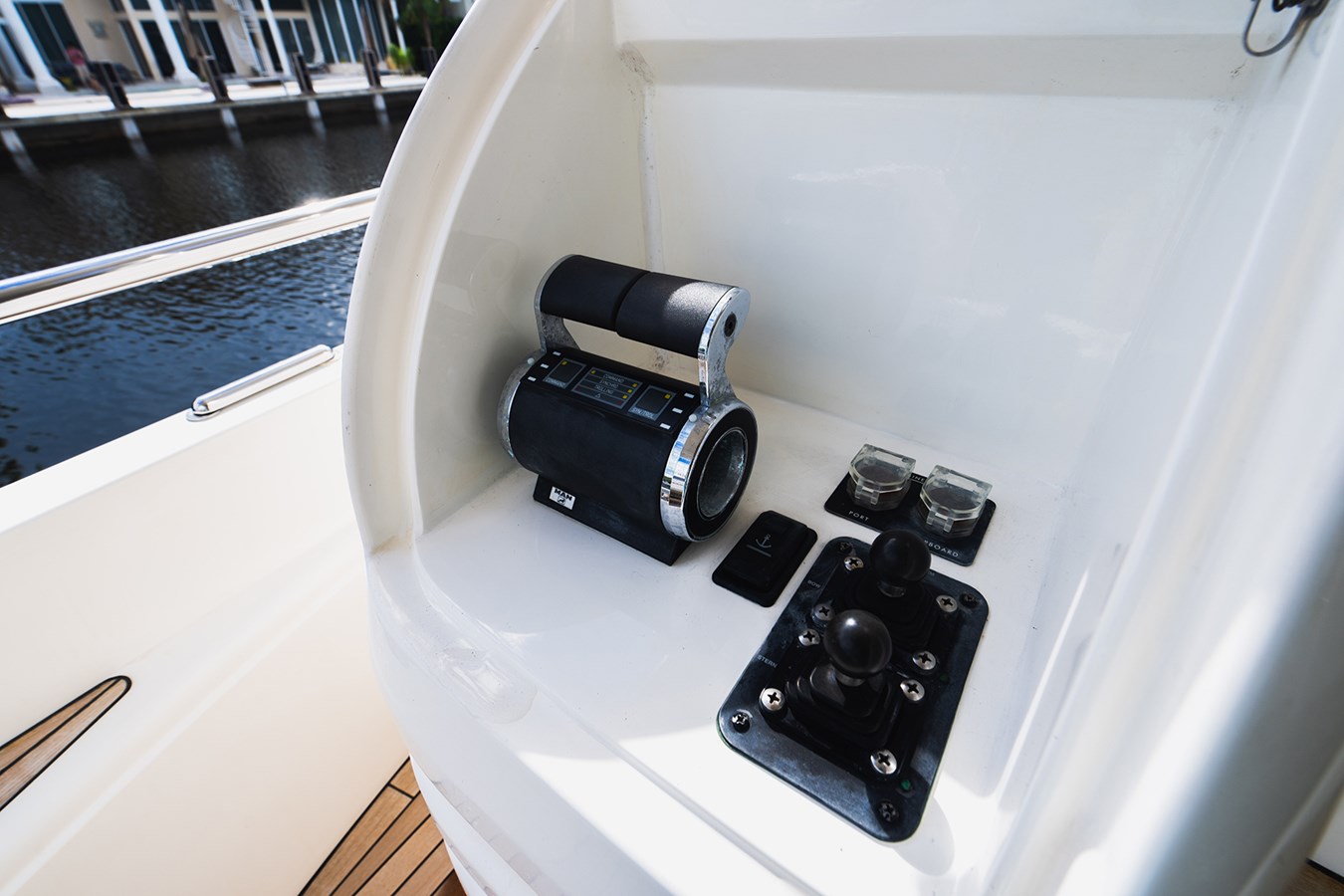

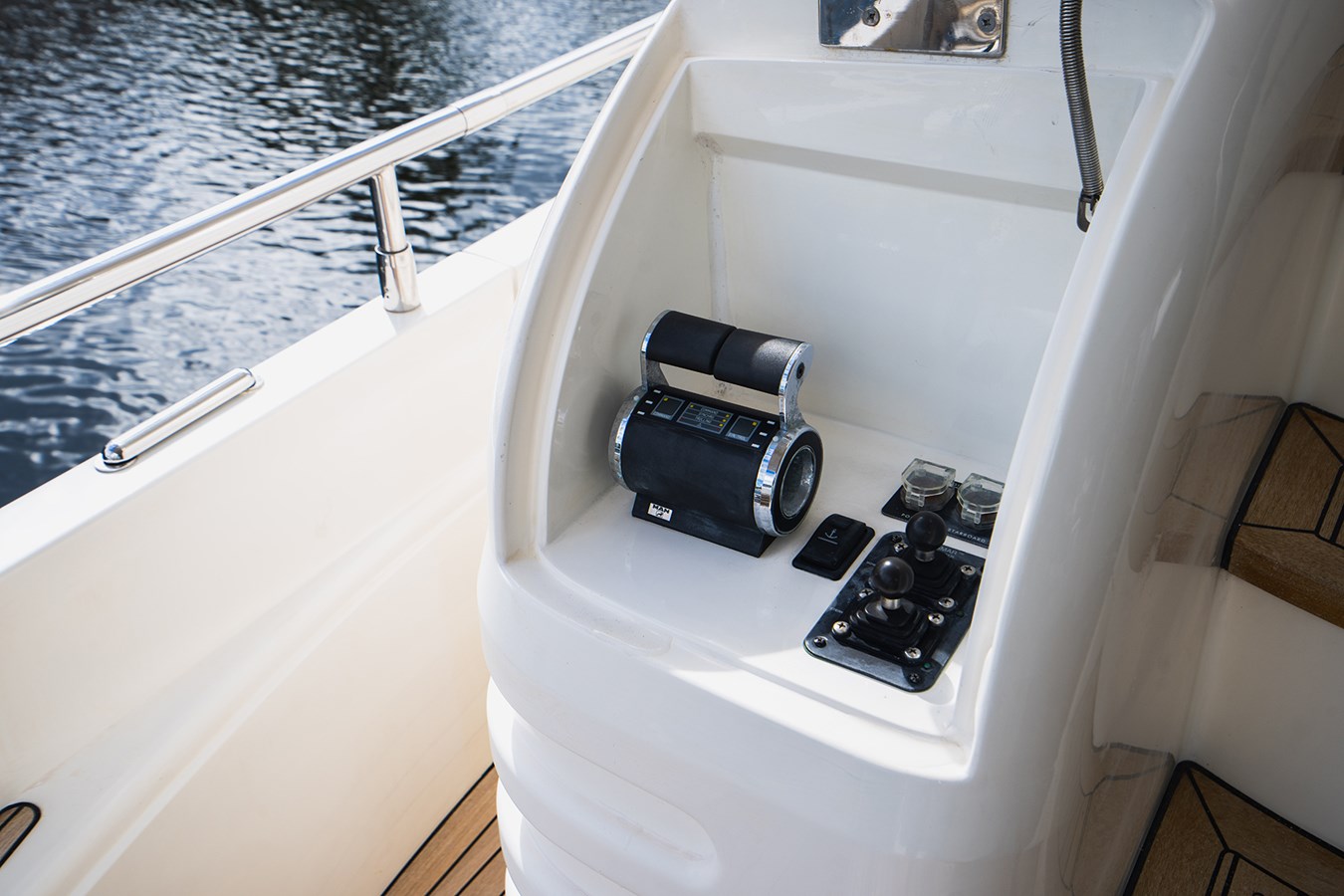

• Cockpit engine controls: Aft deck to port

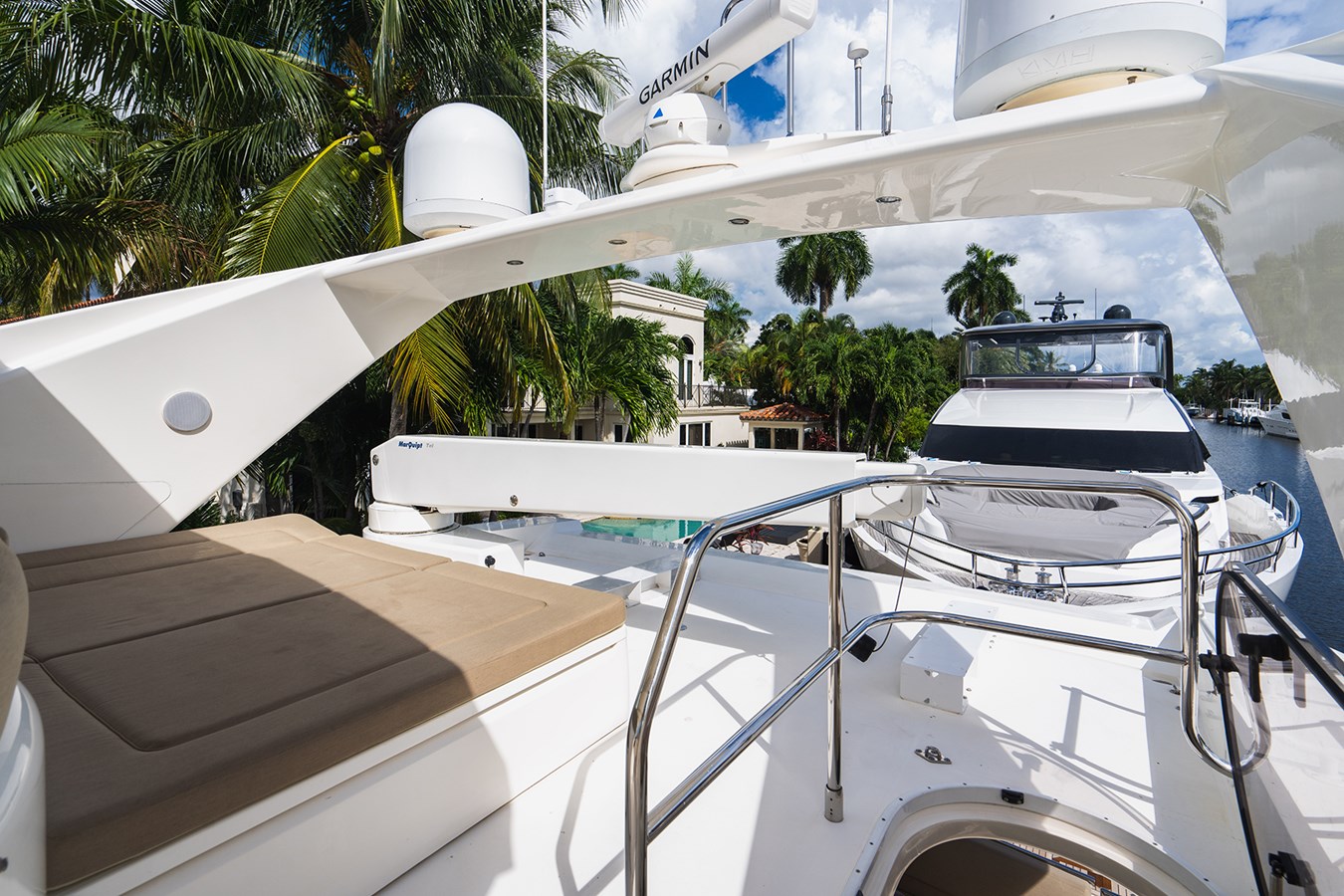

• Radar arch: Yes
• Mast: For lights

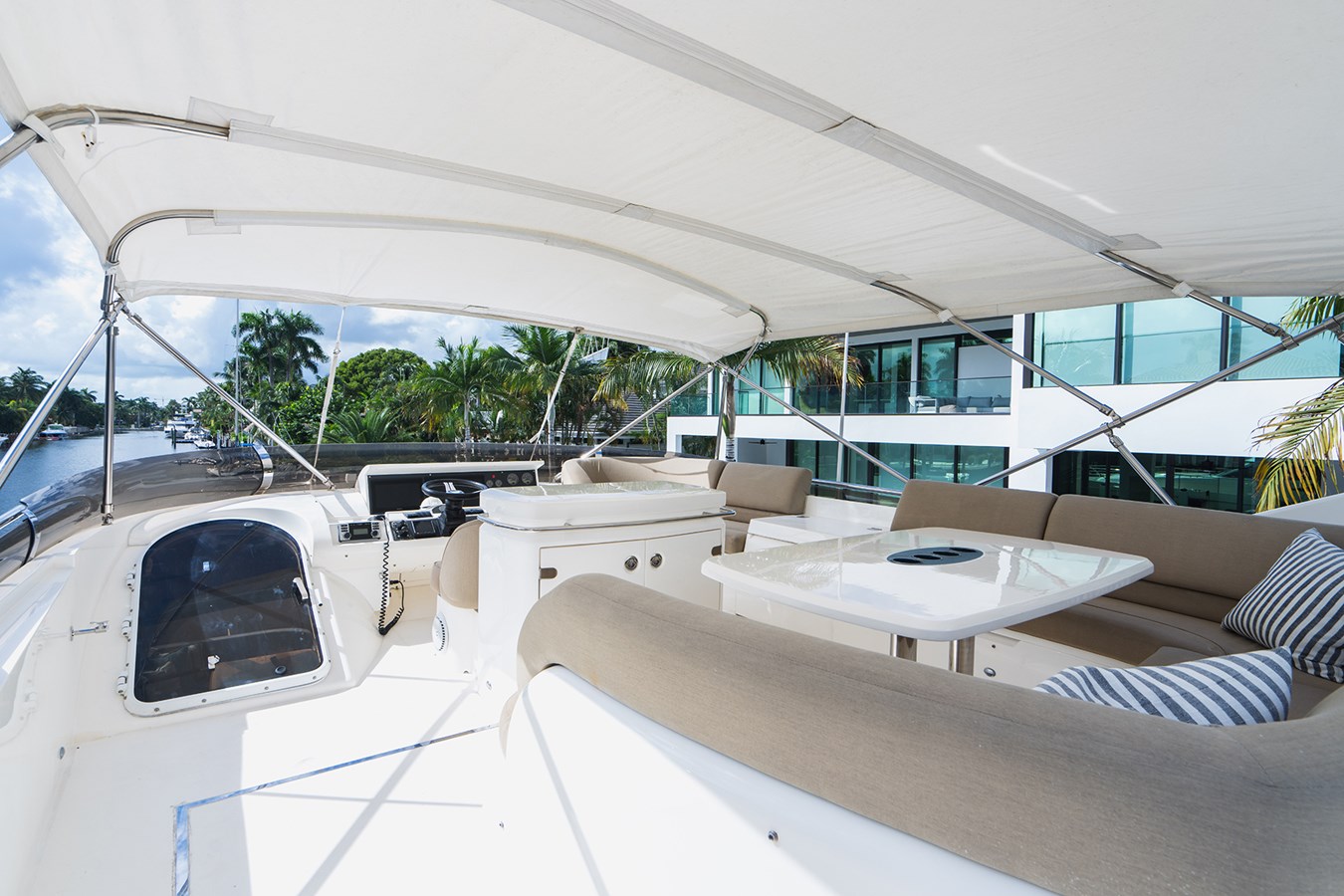

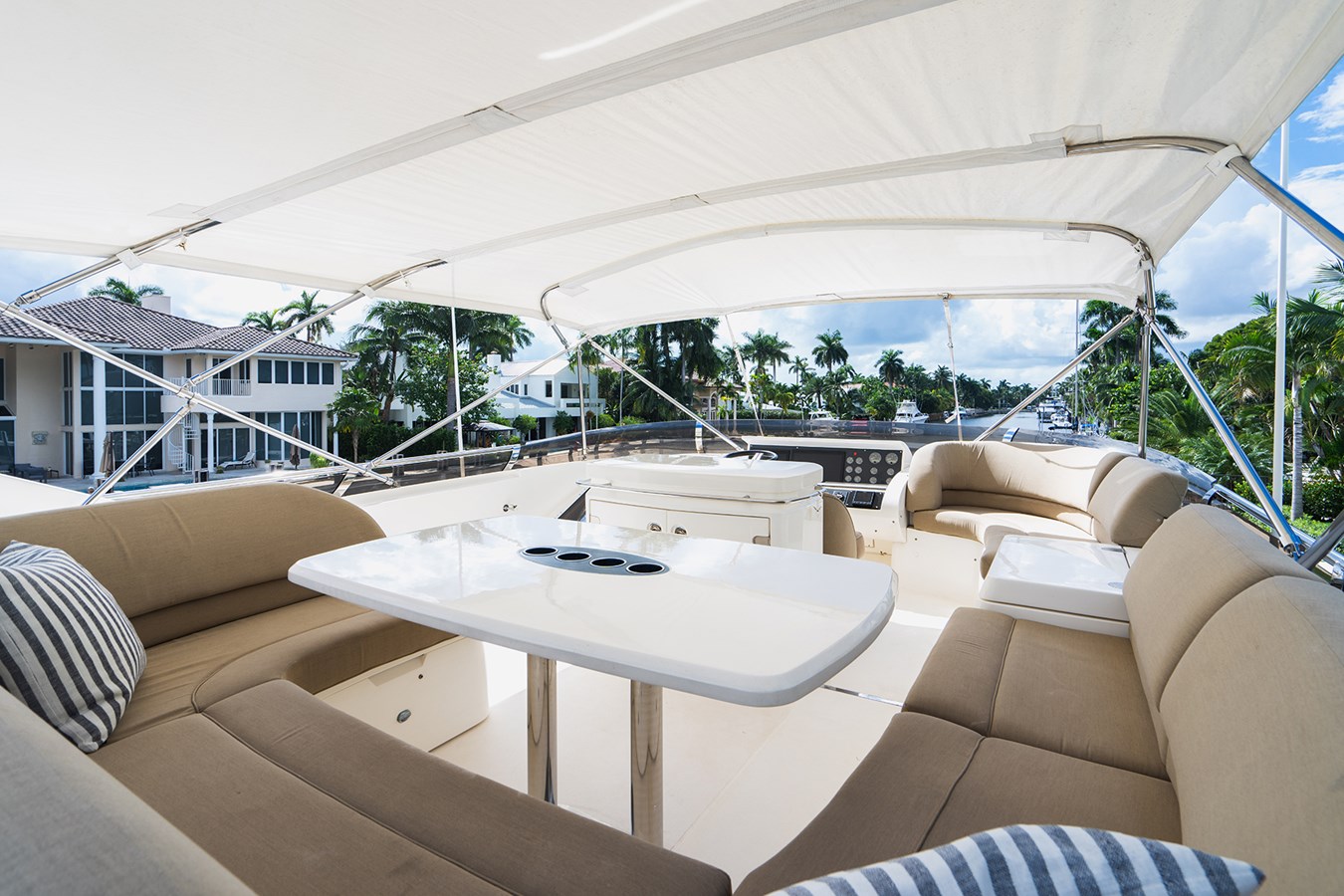

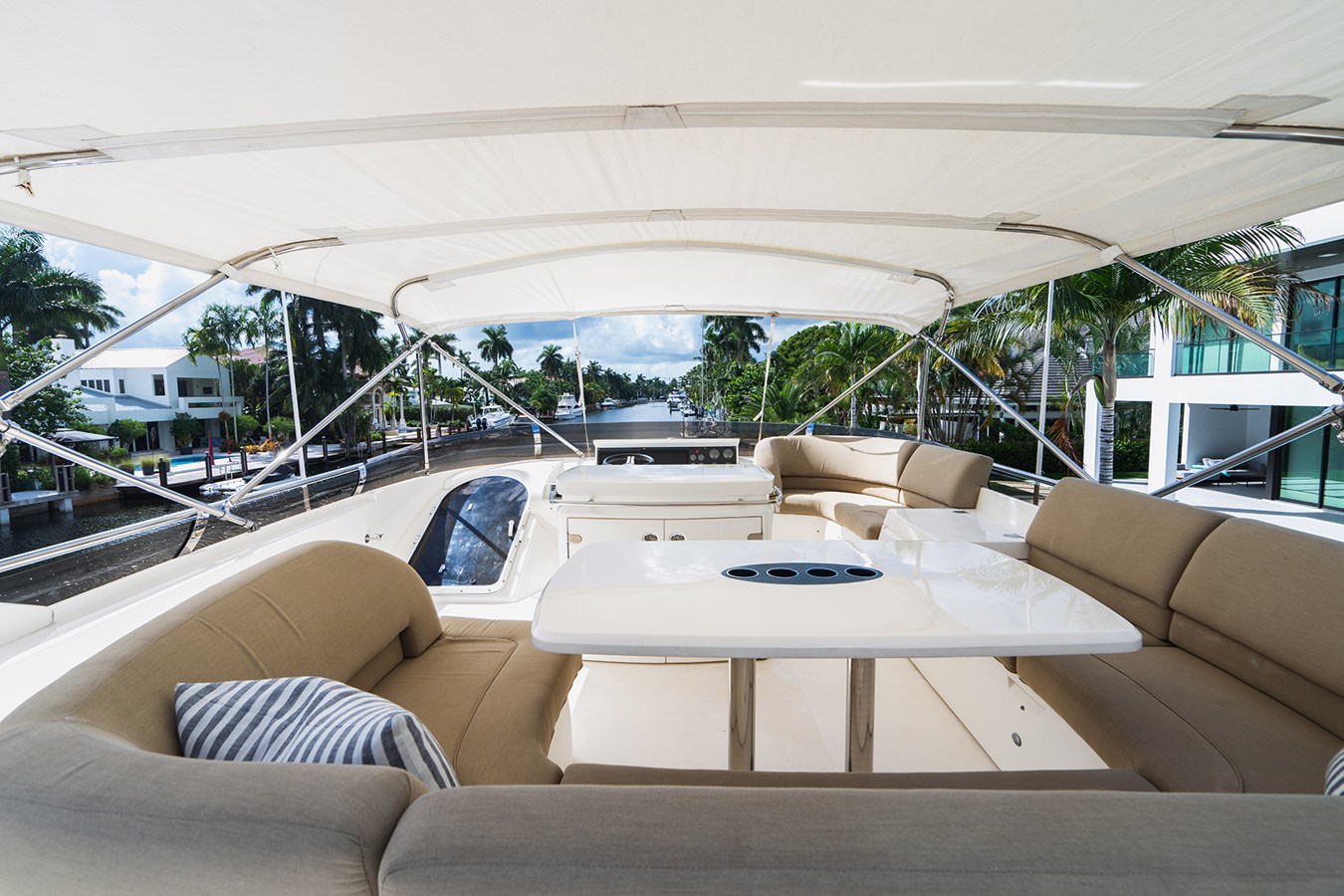

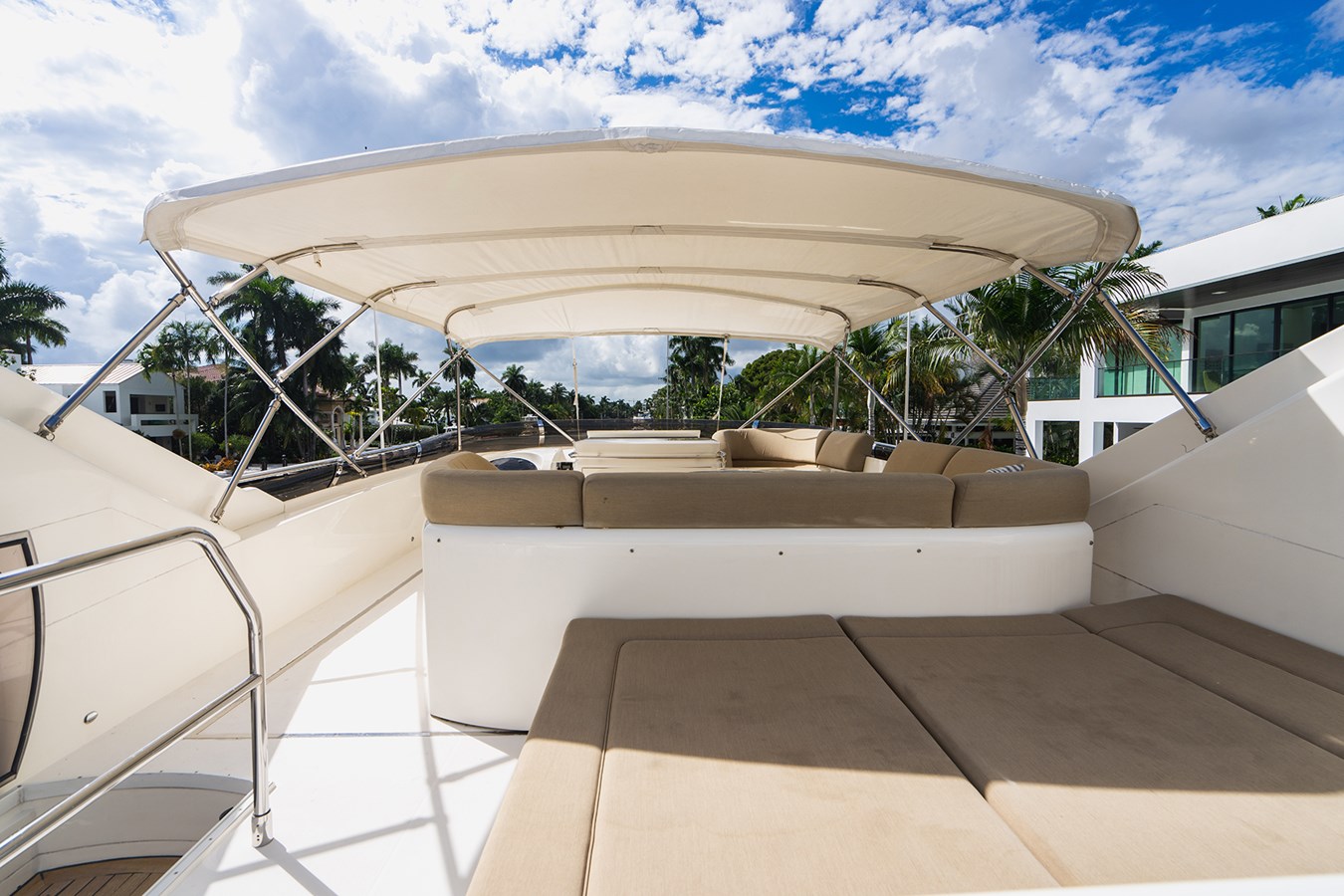

• Bimini: White, over fly bridge
• Bimini frame: Stainless steel
• Ground tackle: Galvanized plow type w/300’ chain (approx. length)

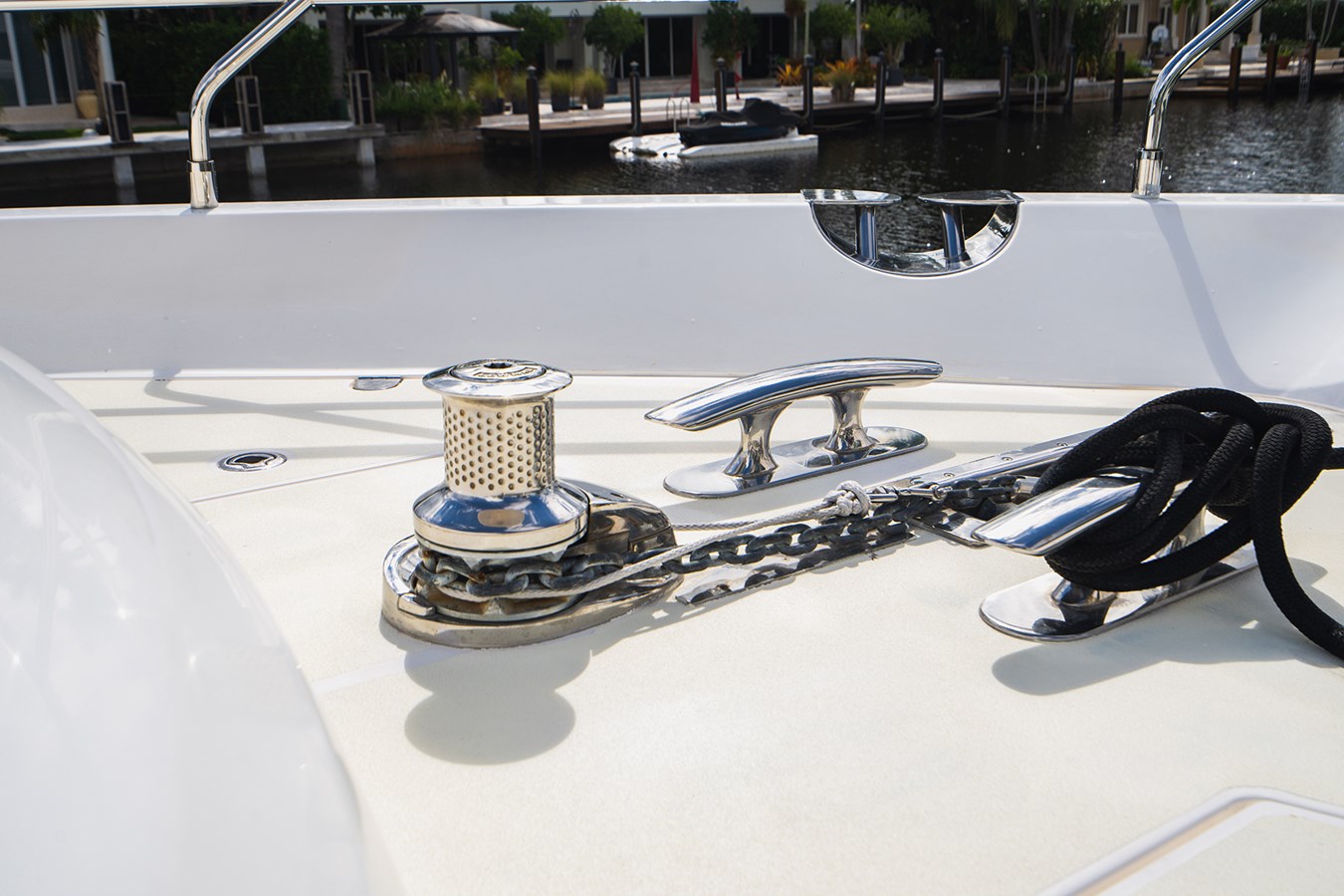

• Anchor windlass: Lewmar, vertical, electrical
• Deck winches: 2x Lewmar to port & starboard on aft deck

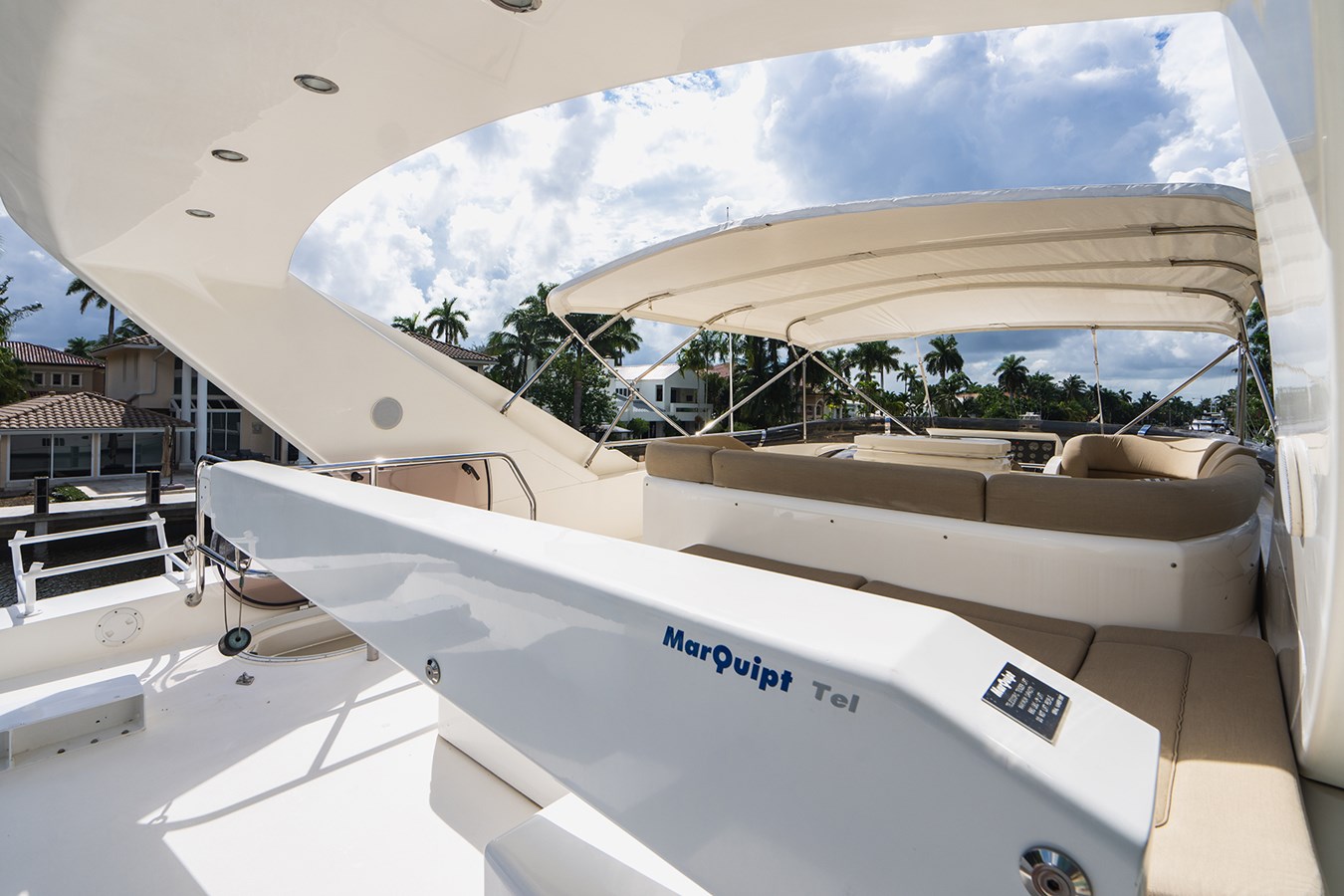

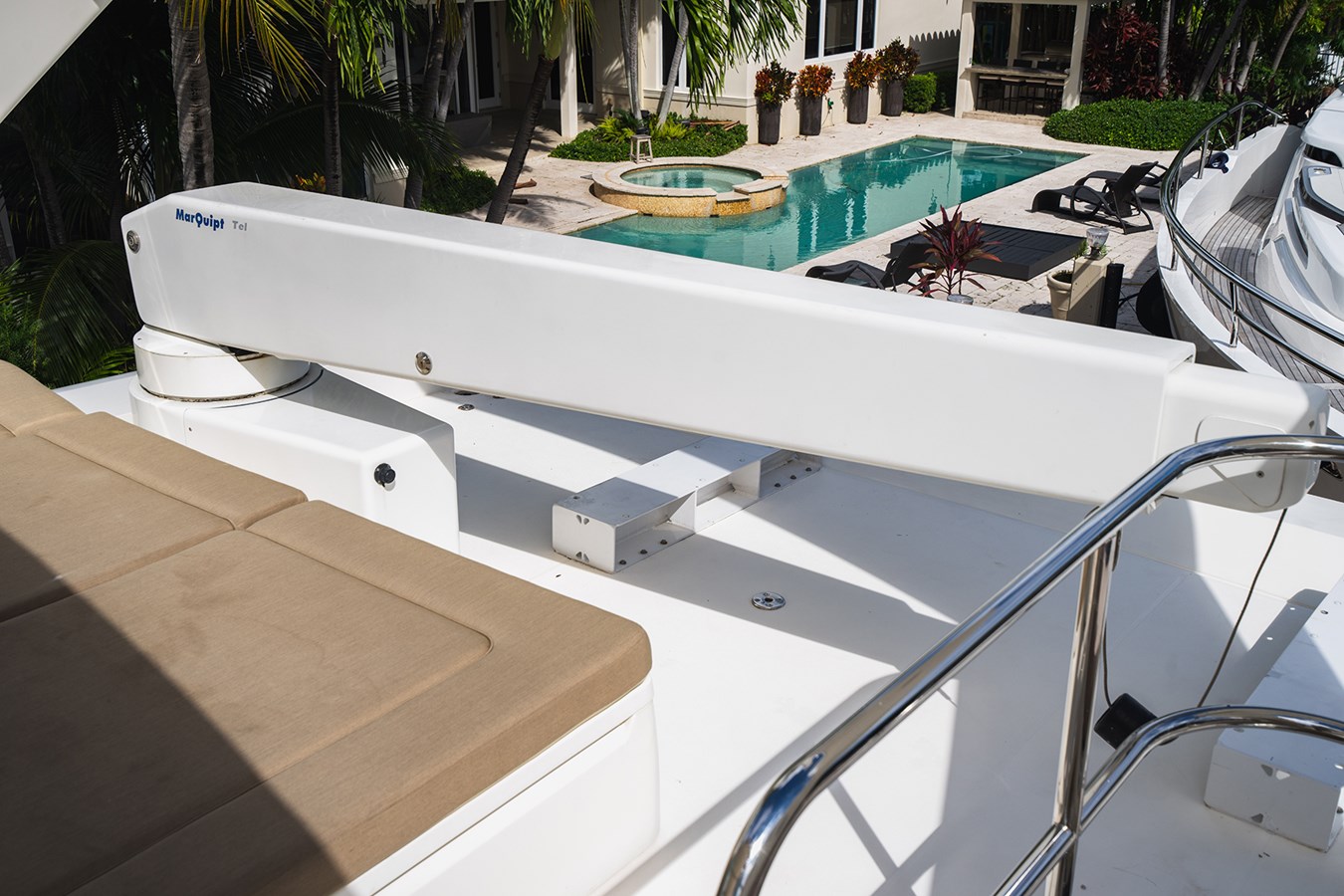

• Dinghy davit: Marquipt w/full powered functions
• Passarelle: “Obacmare” stainless steel w/ teak inlay

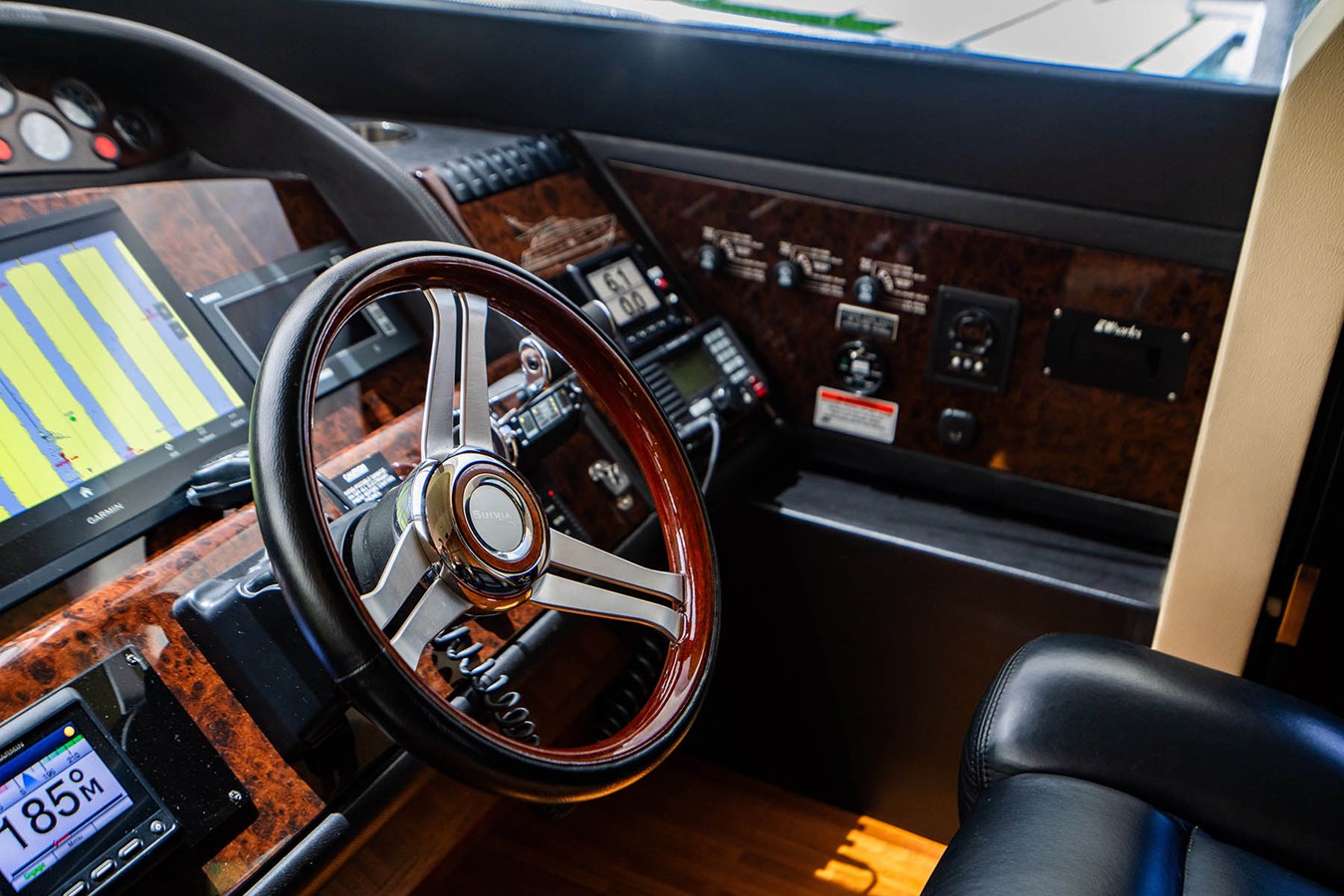

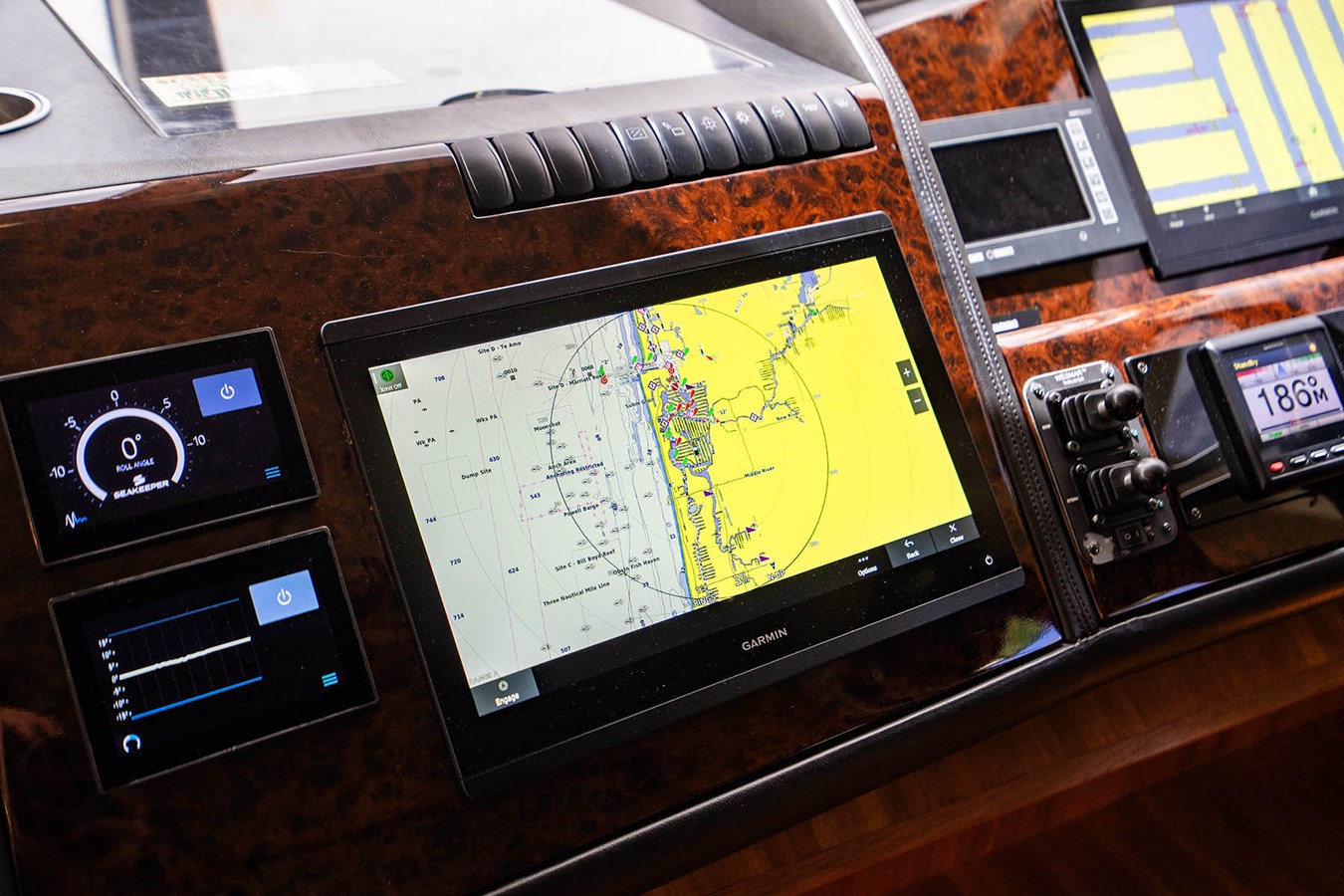

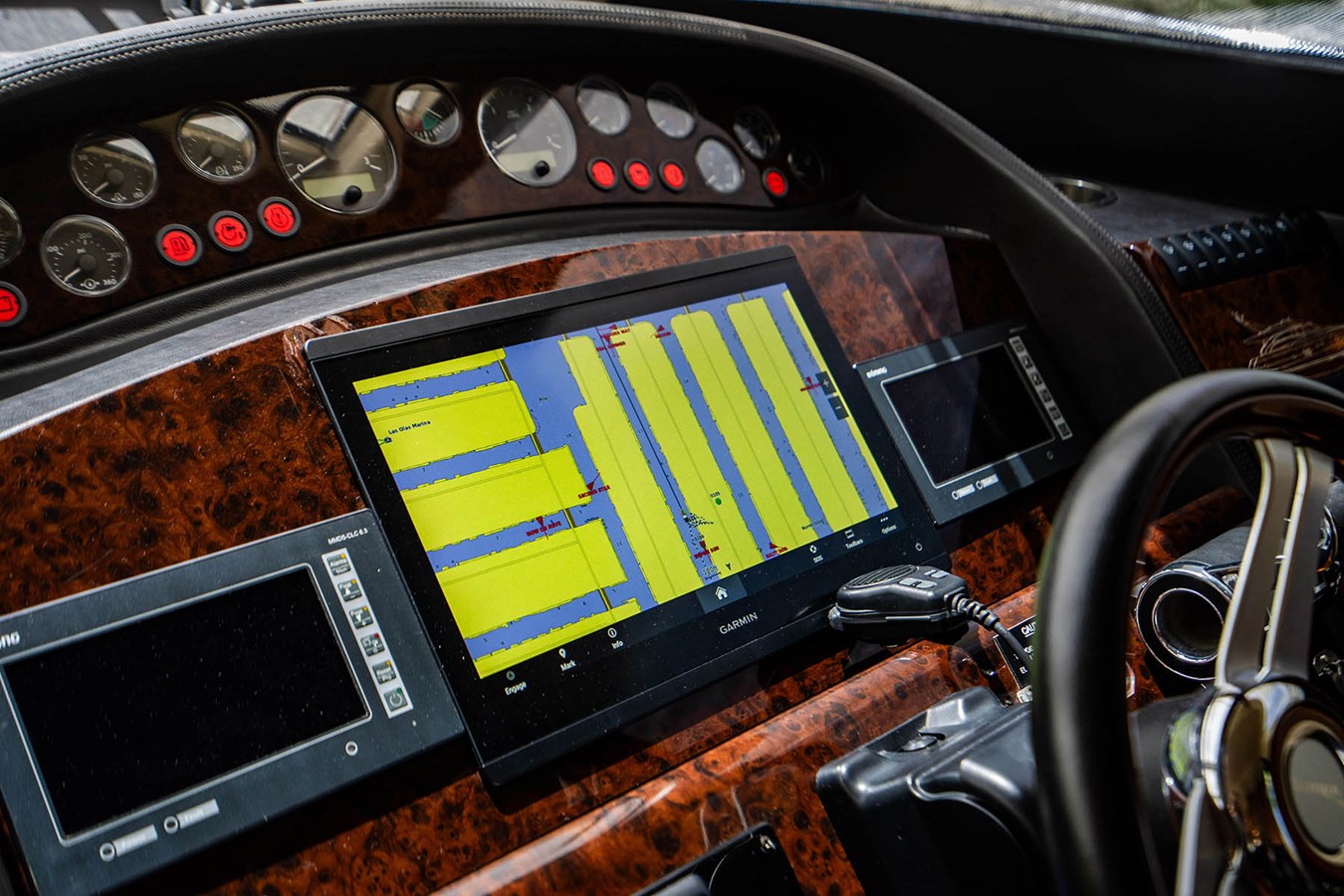

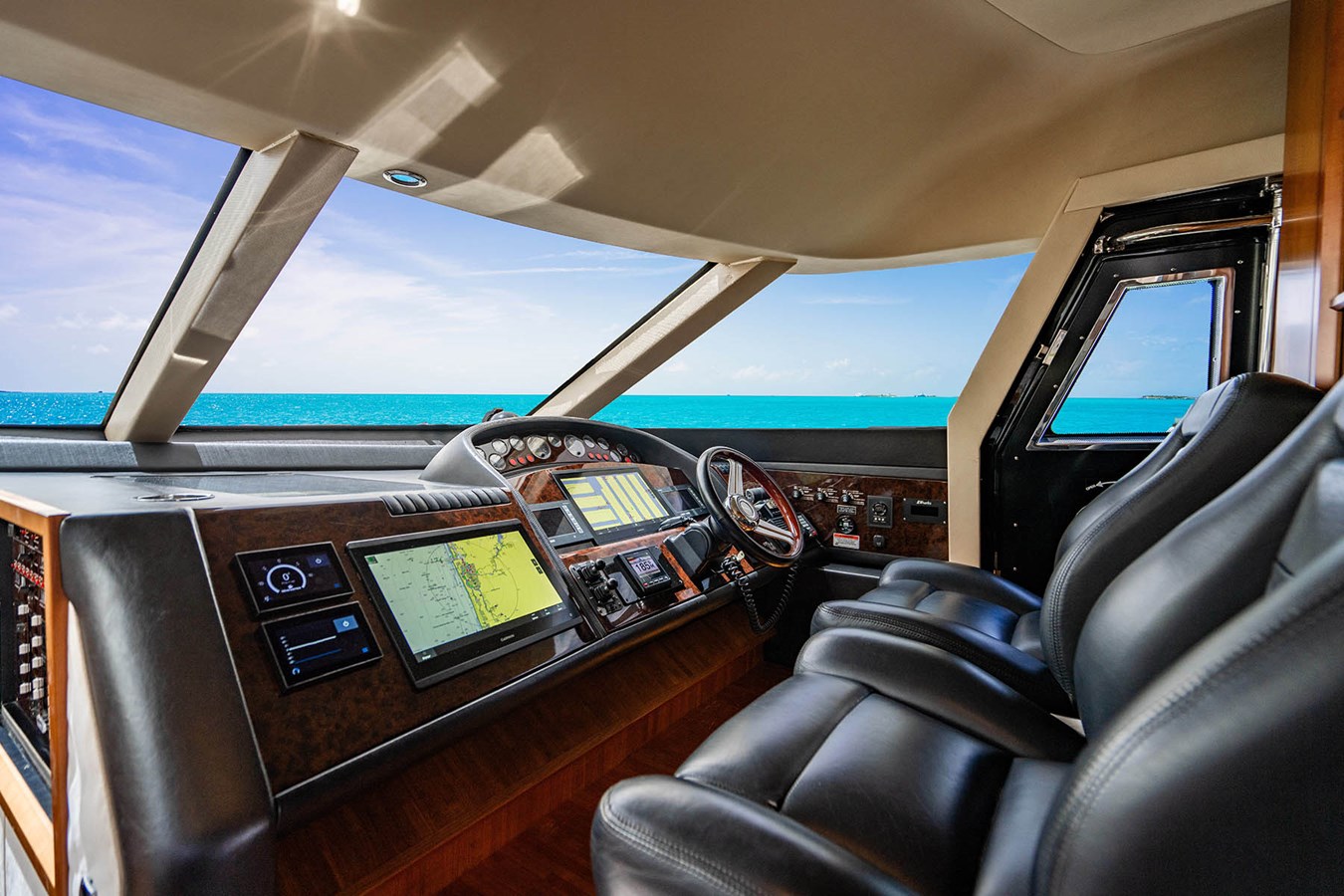

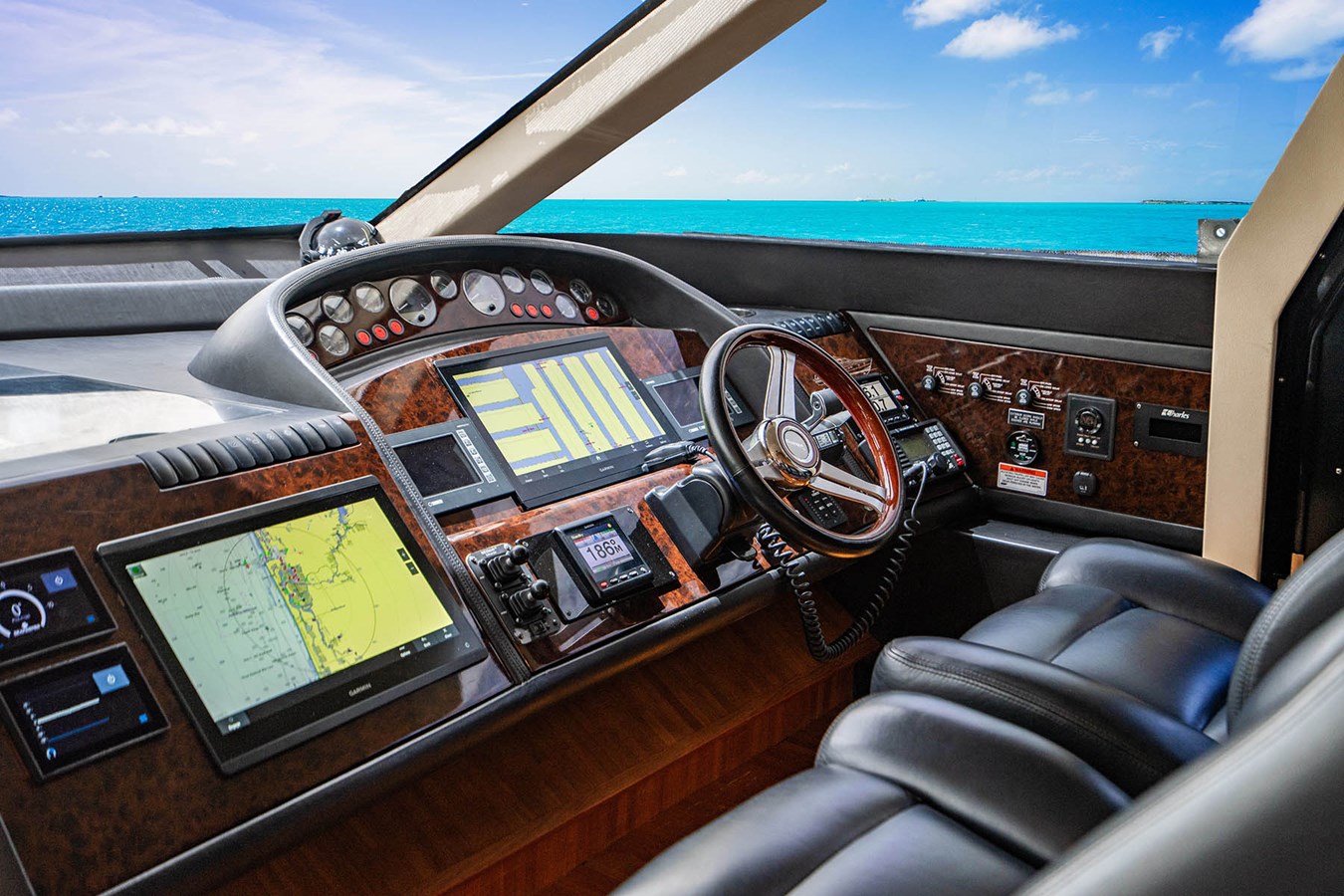

Electronics: Lower Station

• Compass: 4” Plastimo
• Autopilot: Garmin GHC 20
• Radar: Garmin 72 Mile
• AIS: Garmin AIS 800
• GPS: Garmin 8616
• GPS: Garmin 8616 xsv
• Chart Plotter: In above GPS’s
• VHF: ICOM IC-M604
• Hailer: In VHF
• Cell Phone: Owners Portable
• Fishfinder: In GPS’s
• Depthfinder: In GPS + Garmin GMI 20
• Speed log: As above
• Sw. temp. guage: As above

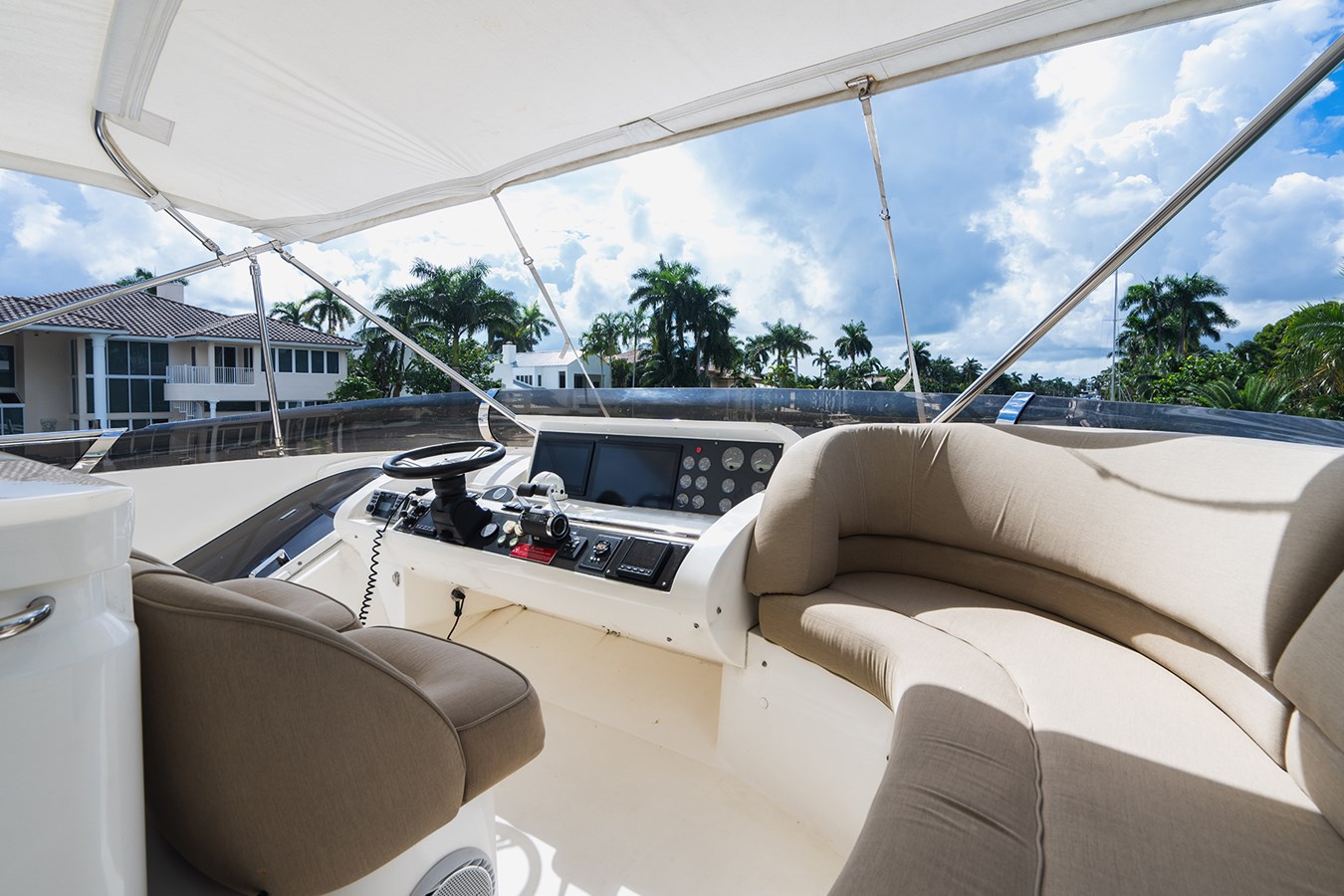

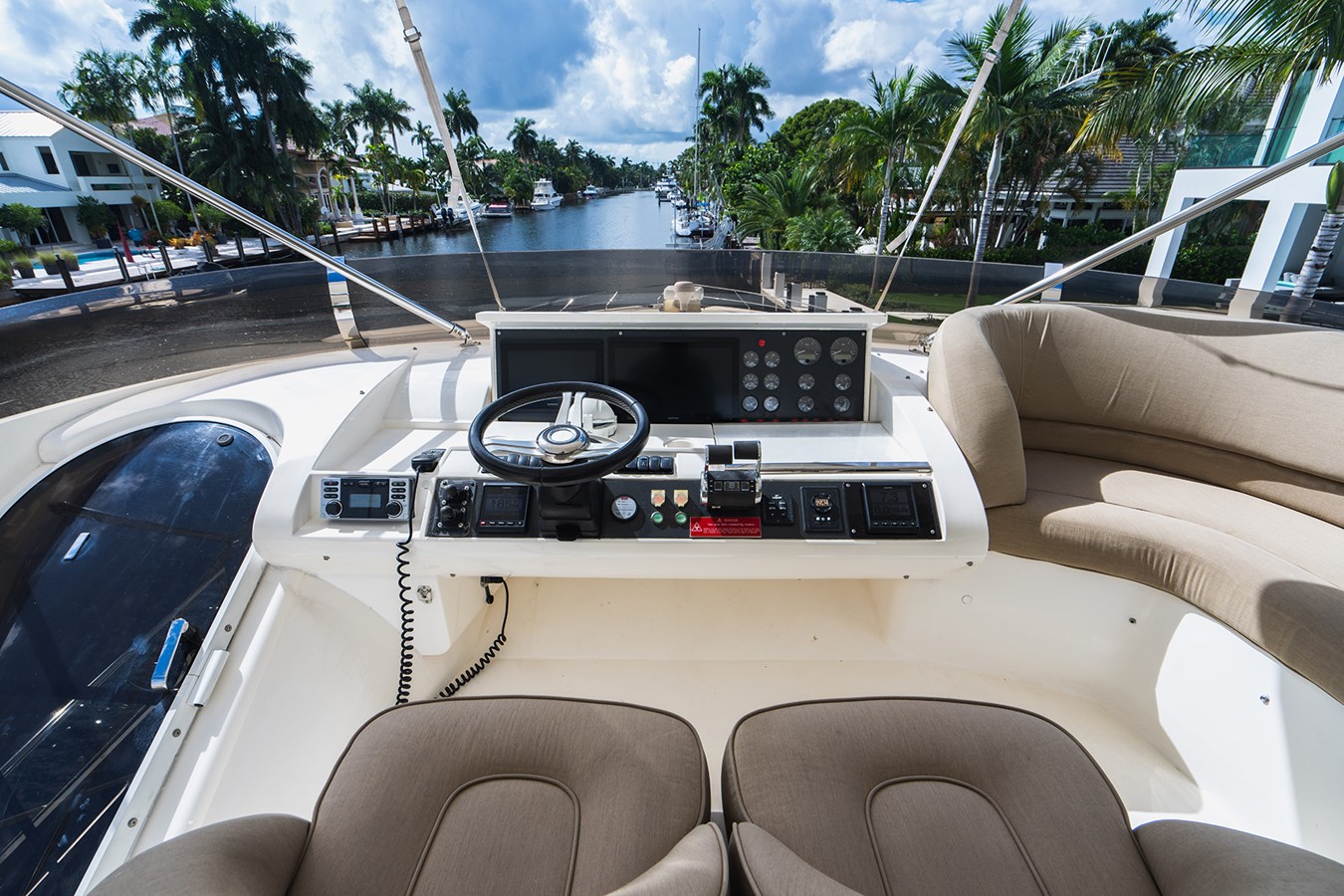

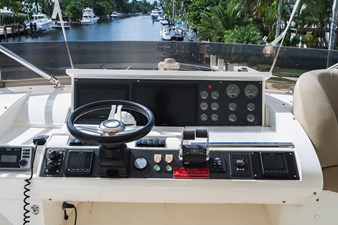

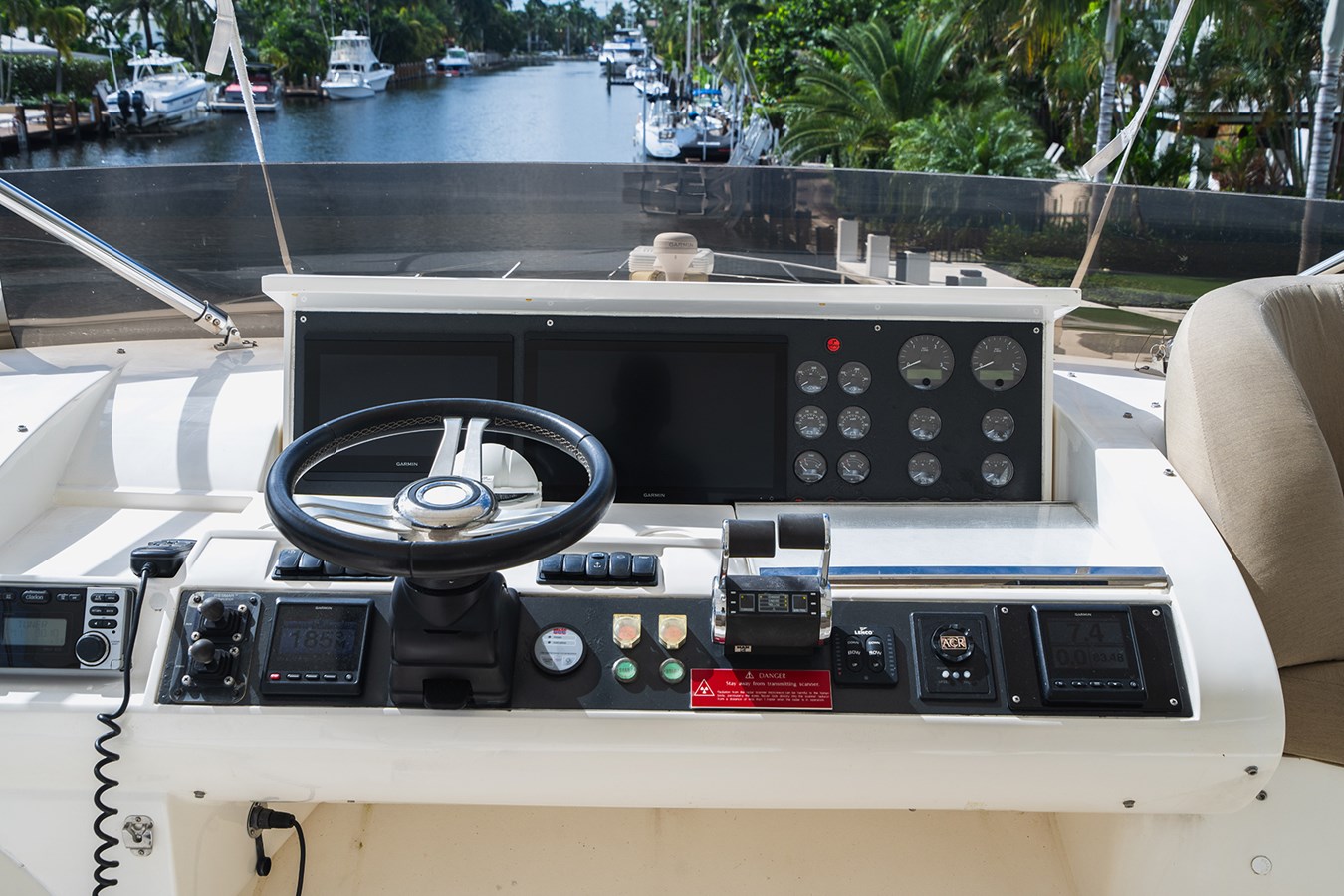

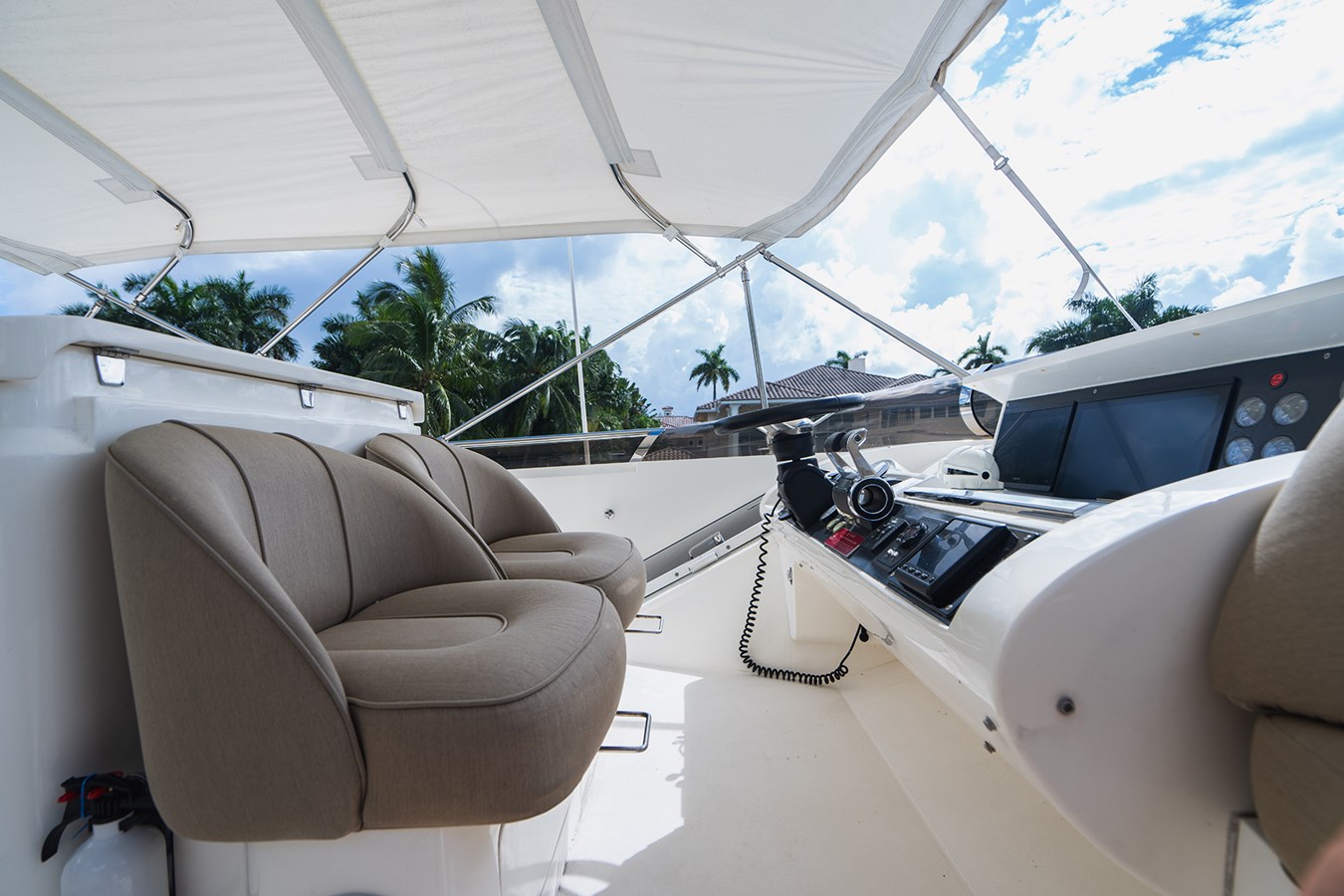

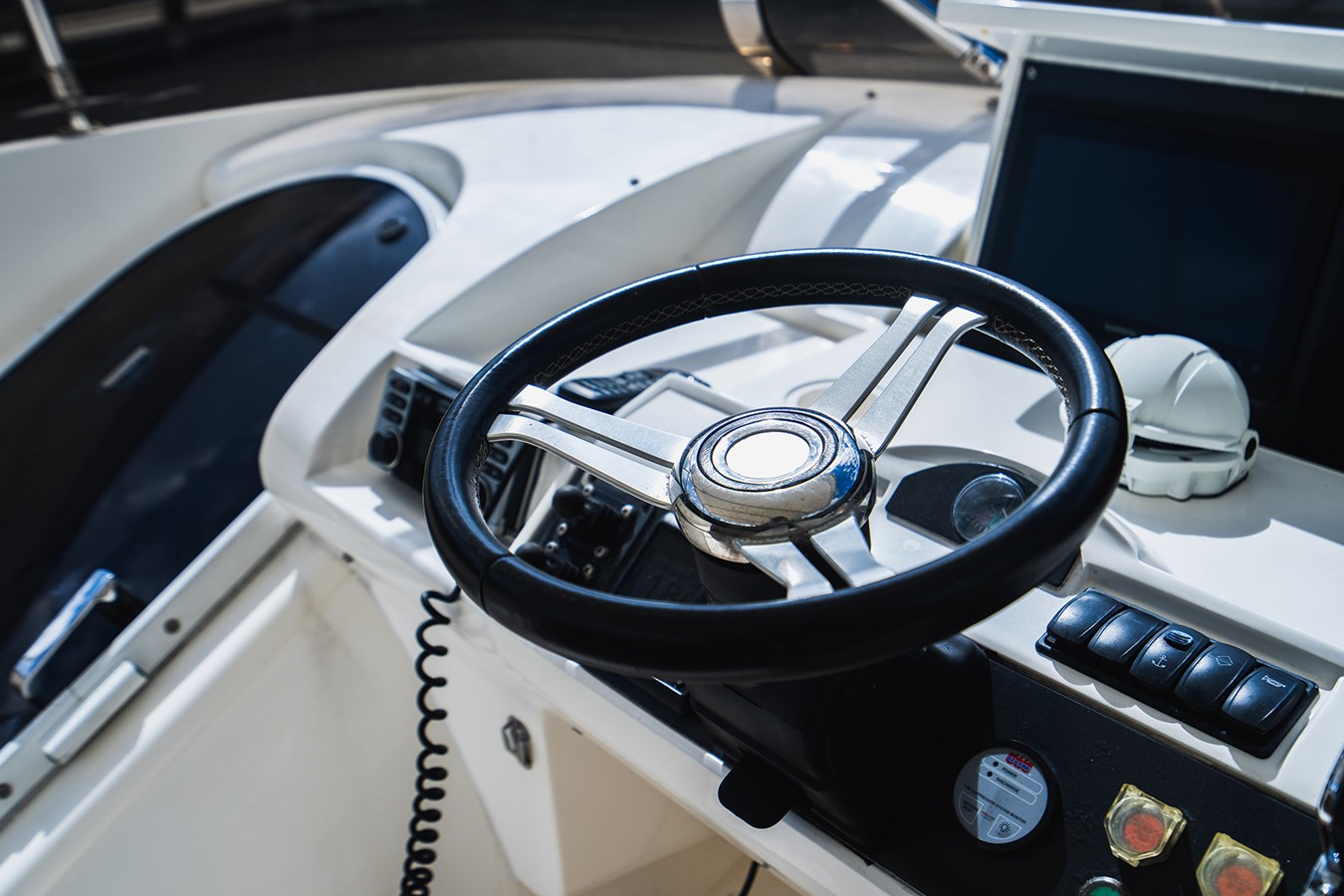

Electronics: Upper Station

• Compass: 4” Plastimo
• Autopilot: Garmin GHC 20
• Radar: Garmin repeater
• GPS: Garmin 8612
• GPS: Garmin 8616
• Chart Plotter: In above GPS’s
• VHF: ICOM CommandMic III
• Hailer: In VHF
• Fishfinder: In GPS’s
• Depthfinder: In GPS + Garmin GMI 20
• Speed log: As above
• Sw. temp. guage: As above

Electronics: Misc

• Other: Paradox “Gost” monitoring system
• TV/VCR/DVD: Samsung TV, Bose DVD in salon
• TV/VCR/DVD: Samsung TV, JVC DVD in master, VIP, & starboard staterooms
• TV/VCR/DVD: Samsung TV, JVC DVD in crew cabin
• SAT TV: KVH TracVision
• Stereo: Bose A/V receiver in salon
• Stereo: JVC AM/FM/DVD in master, crew, VIP, & starboard staterooms
• Stereo: Clarion AM/FM/CD on fly bridge
• Other: CCTV system with four cameras

Fire Fighting & Safety Gear

• Hand ext’sher: Six, 2.5 lb dry powder
• Built in system: 3X “Seafire” FM 200
• Location: Tanks in engine room, lazarette, & below helm
• Manual release: On aft deck
• Automatic release: Yes
• Remote indicator: Both helms
• Shut-downs: Vent fans, vent flaps, main engines, & generator
• Aux. fire pump: Deck wash downs
• Manual bilge P/PS: Yes, w/ manifold
• El. bilge pumps: Submersible style
• Bilge alarms: Yes
• Life jackets, type “I”: Eight
• Life jackets, type “II”: Eight
• Life rings: One
• Flares, red hand held: Four
• Flares, orange hand held: Two
• Flares, cartridges: Four + one gun
• EPIRB: “ACR” battery
• First aid kit: Yes
• U.S.C.G. notices: Yes
• Smoke detectors: Yes
• Bell: Yes
• Horn: Yes
• Rules of the road book: Yes
• Running lights: All working
• Anchor lights: Working
• Searchlights: “ACR”
• Other: Four under water lights at the transom

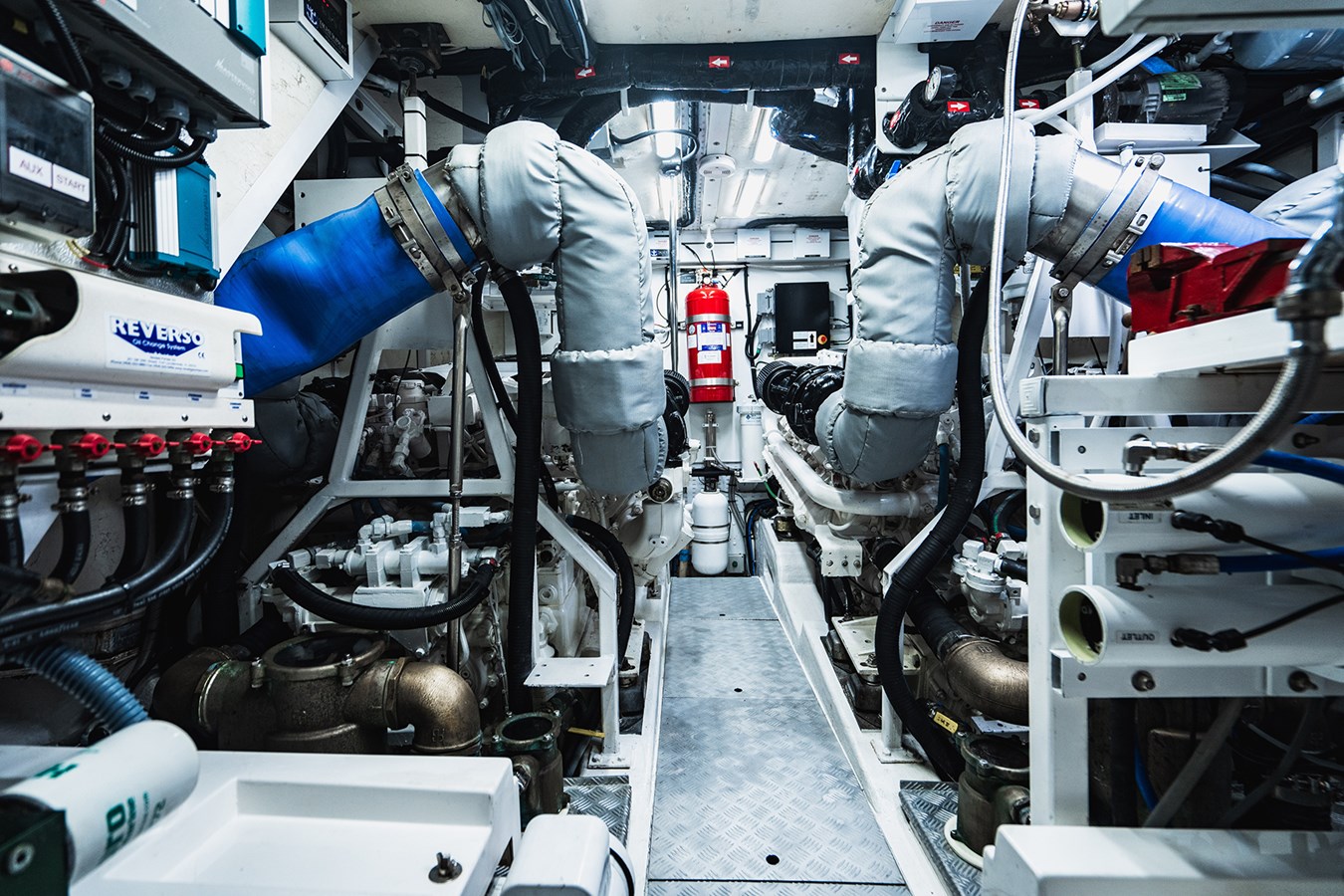

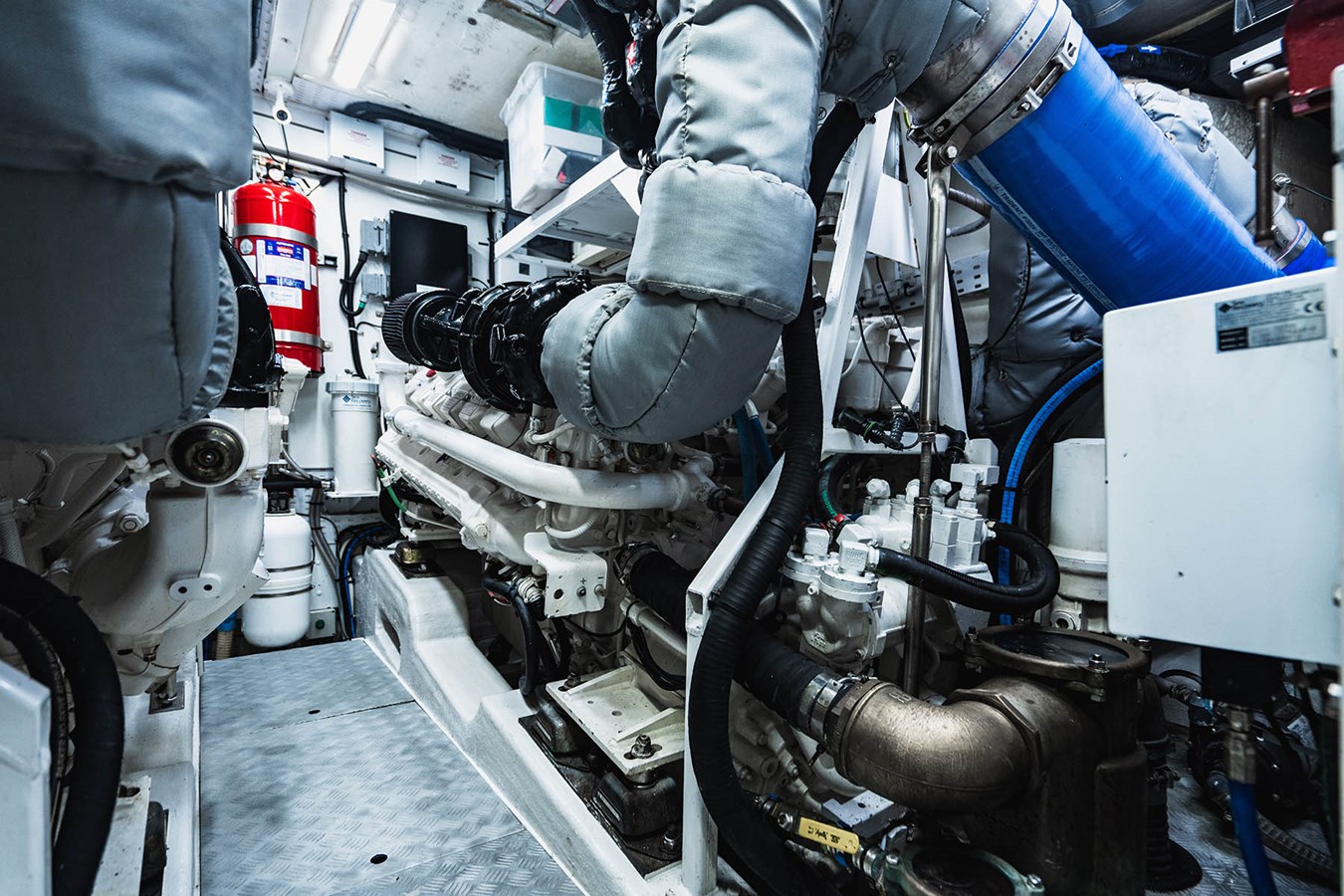

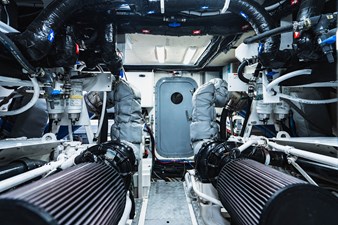

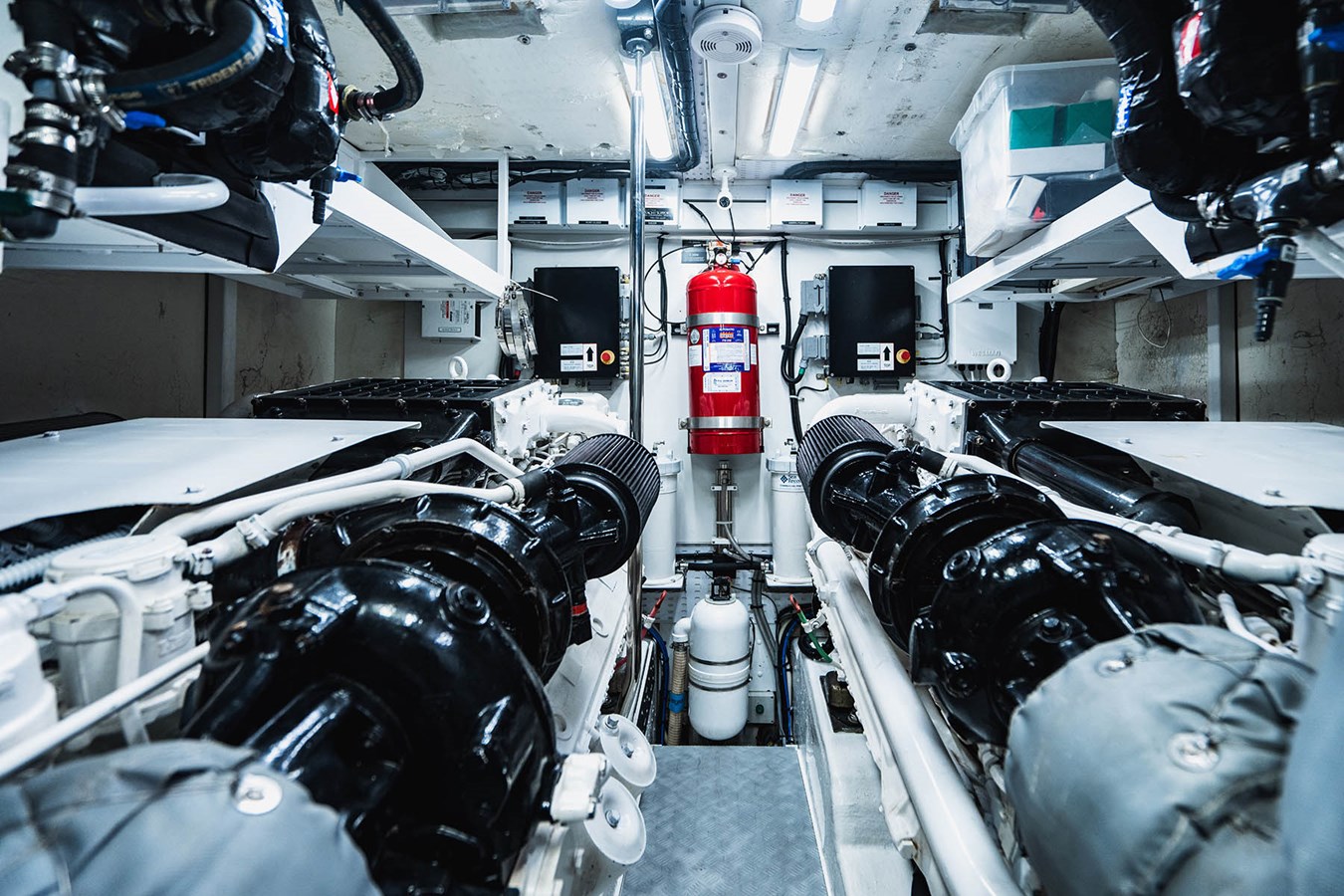

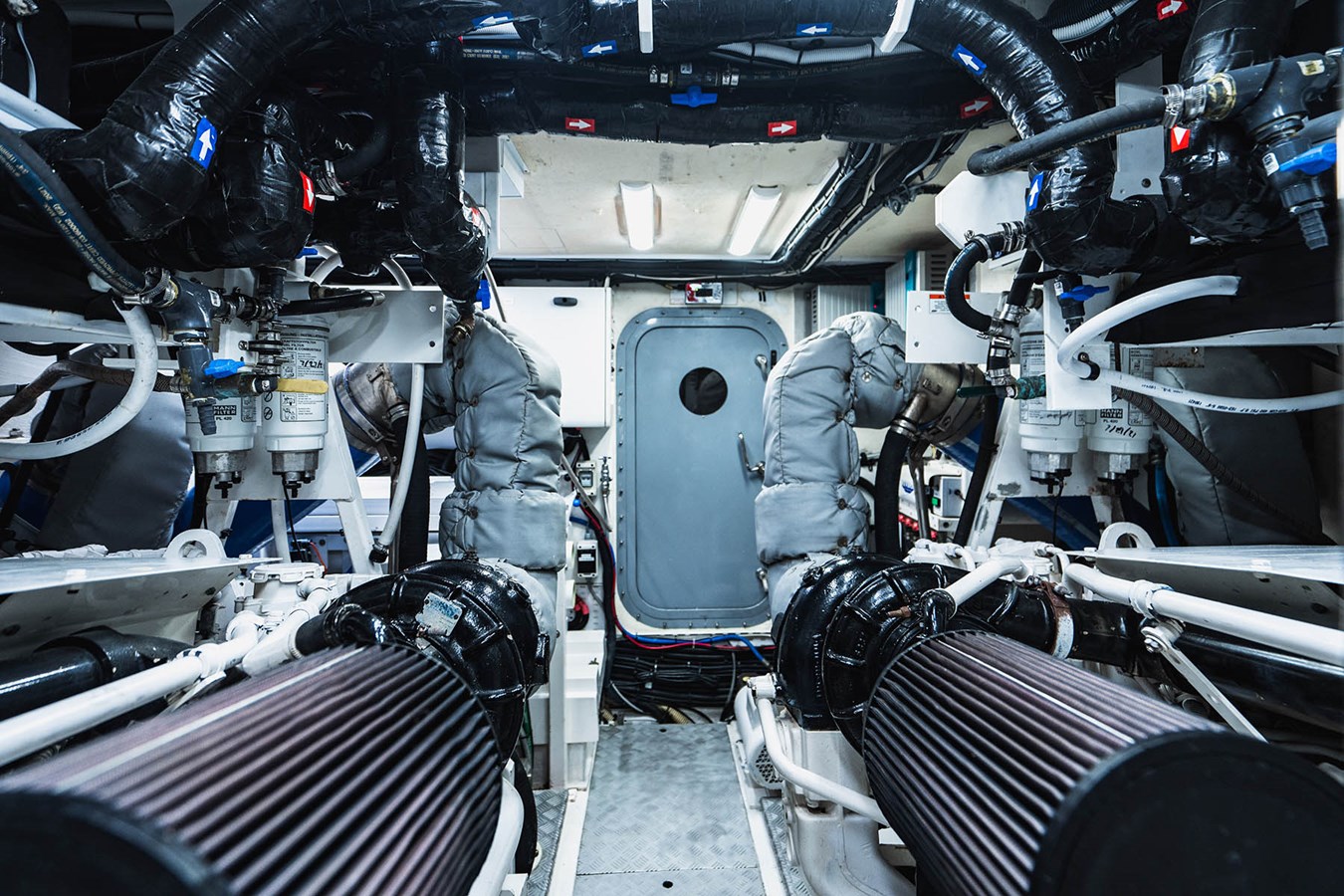

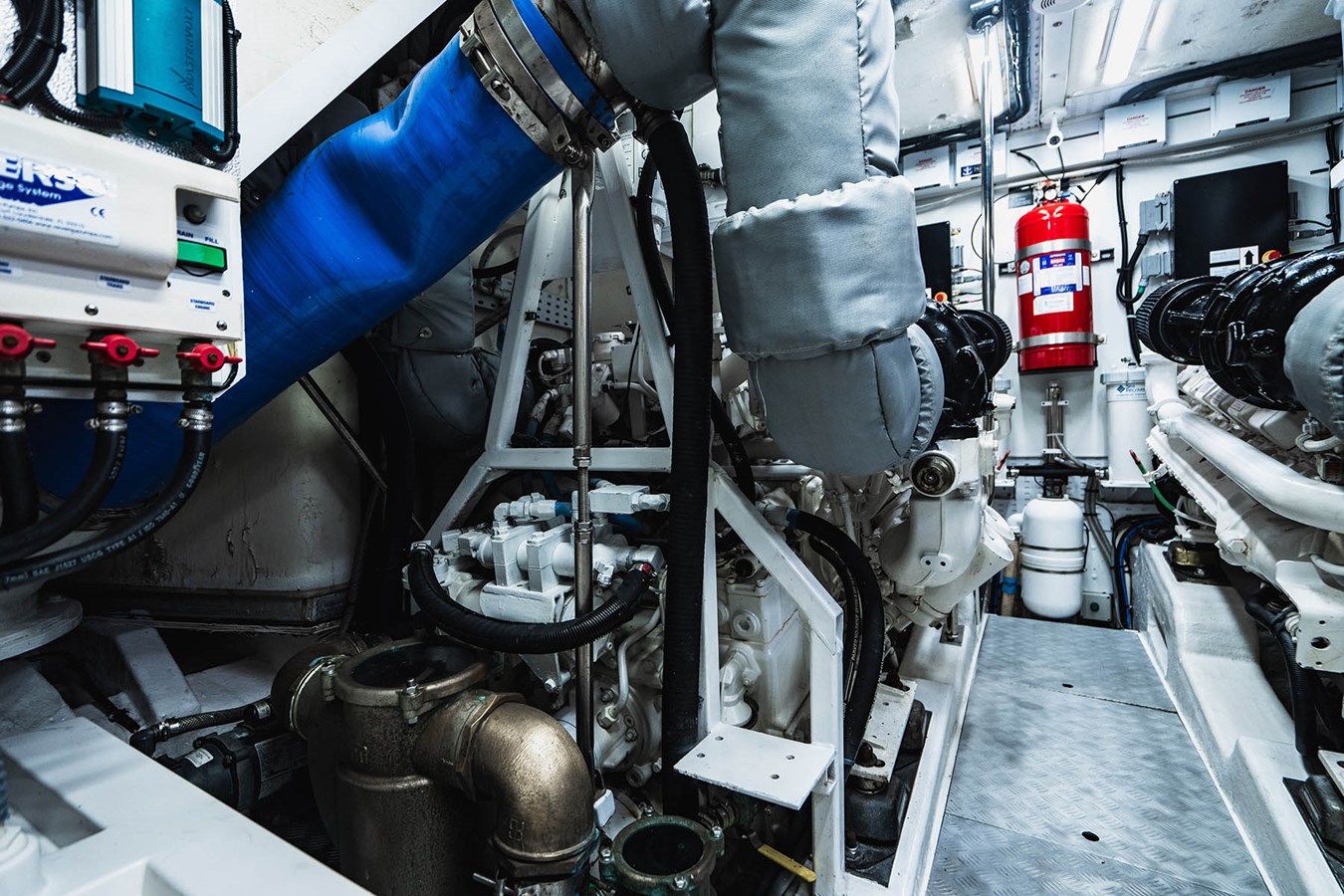

Machinery

• Engine location: Aft, below deck
• Number & type: Two diesel
• Make: MAN
• Model: D2842LE423
• Engine hours: Port: 1647 / Stbd. 1652
• Hp: 1360, 1000 kW each
• RPM: 2300
• Cruise speed: 28 knots, reported
• Max speed: 32 knots, reported
• Alarm systems: Yes
• Engine bed: Fiberglass stringers with aluminum over + flexible mounts
• Cooling system: Fresh water
• Fuel temp: Mechanical
• Filters: Twin MAN bowls in-line with bowl on engines
• Exhaust line: Hose + fiberglass tube
• Exhause muffler: Yes
• Synchronizer: Electronic

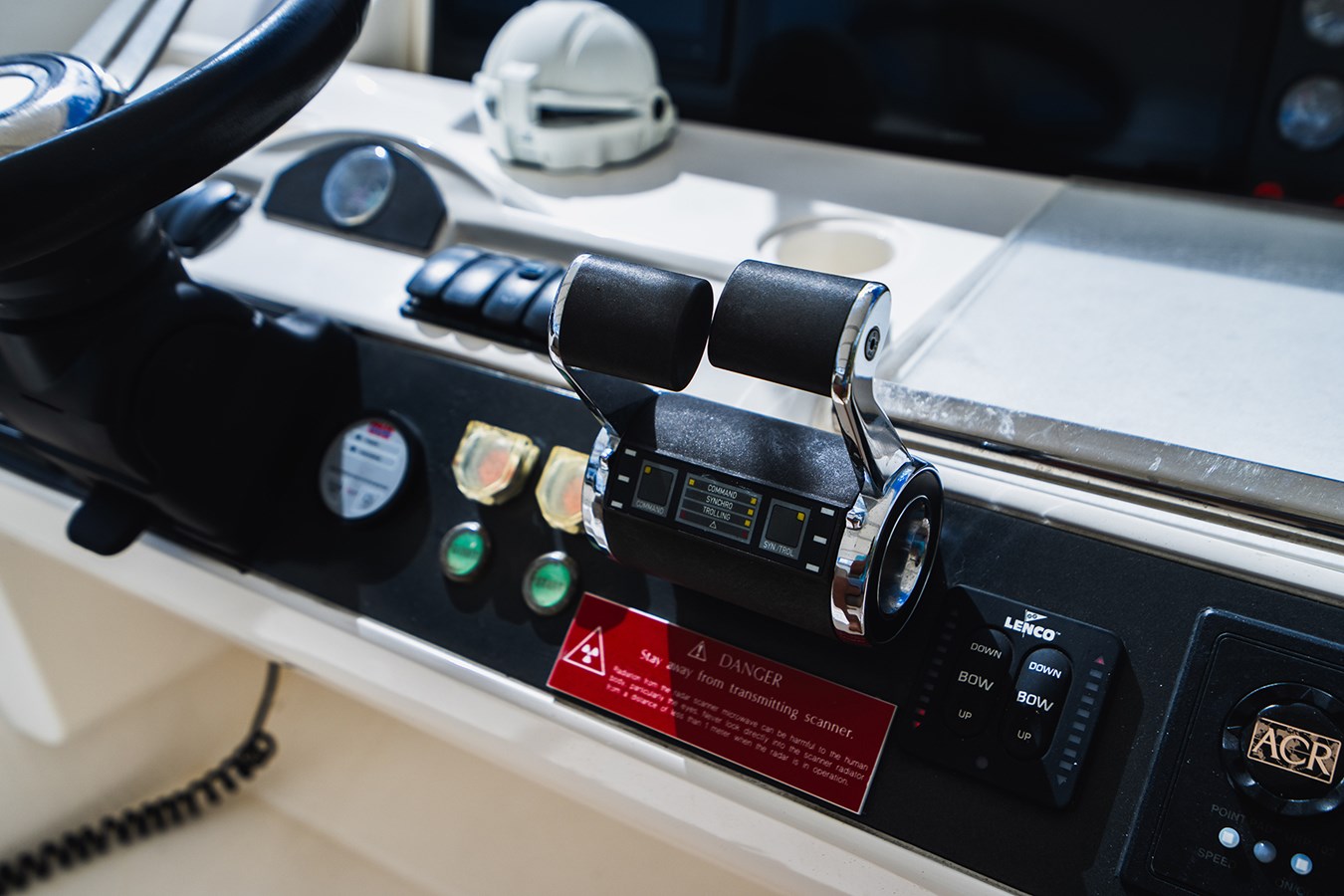

• Controls: Single lever electronic
• Shaft log type: Bronze
• Bearings: Cutlass
• Stuffing box: “Tides” seal type

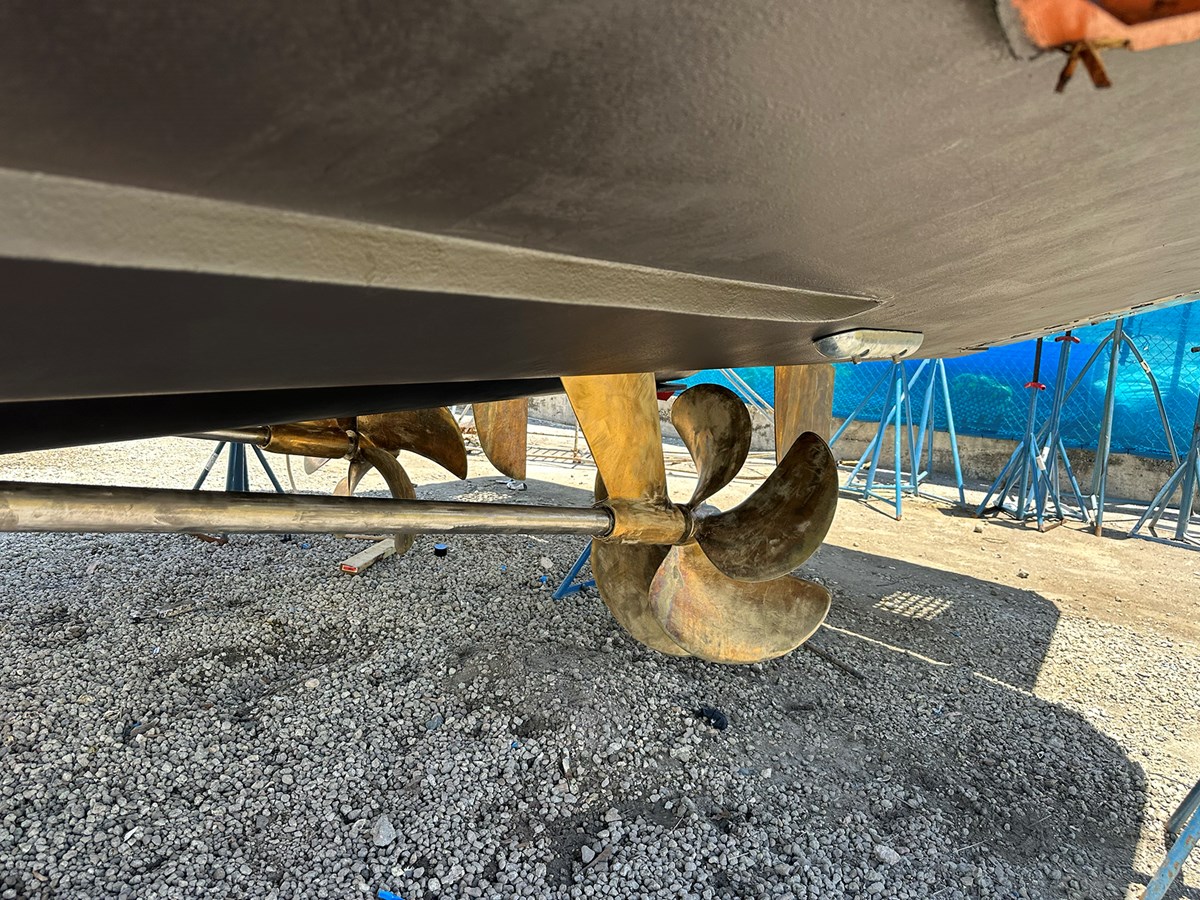

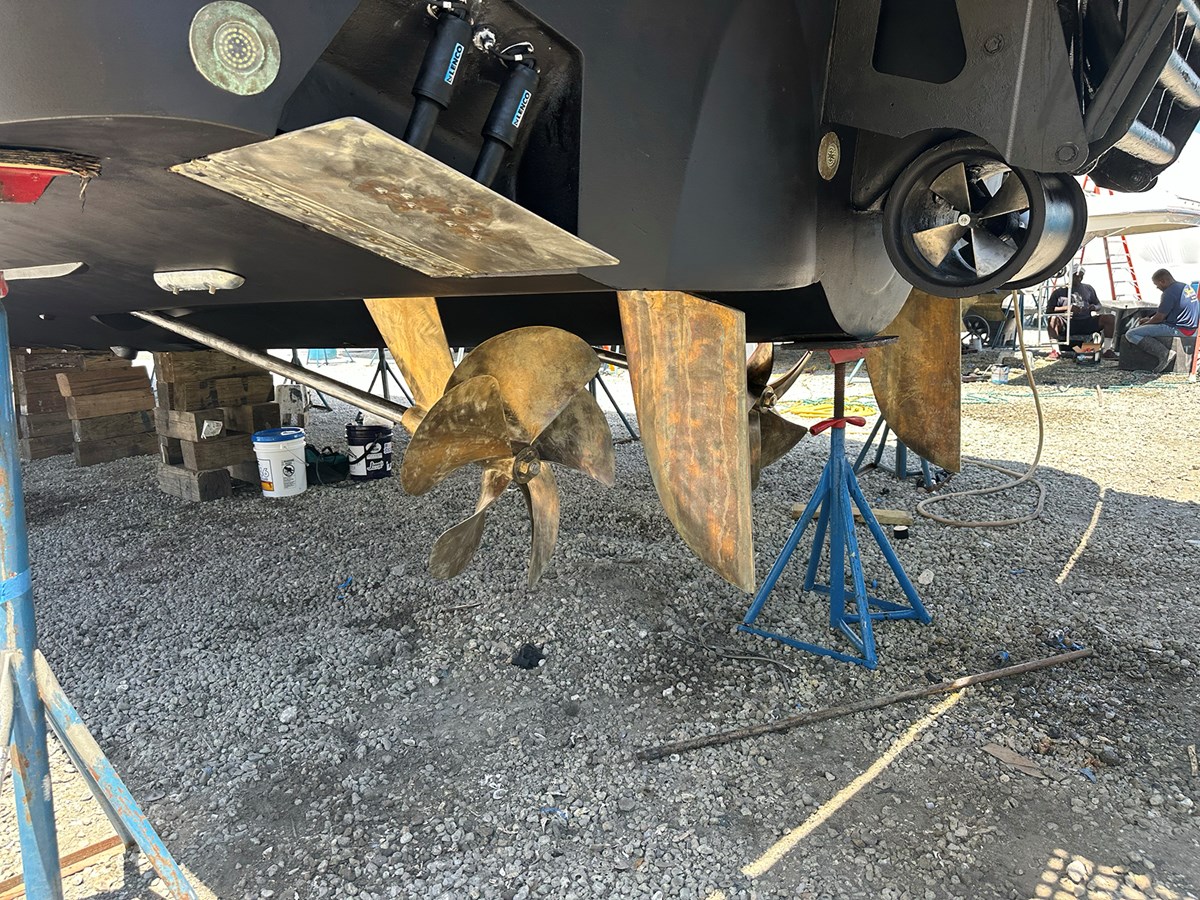

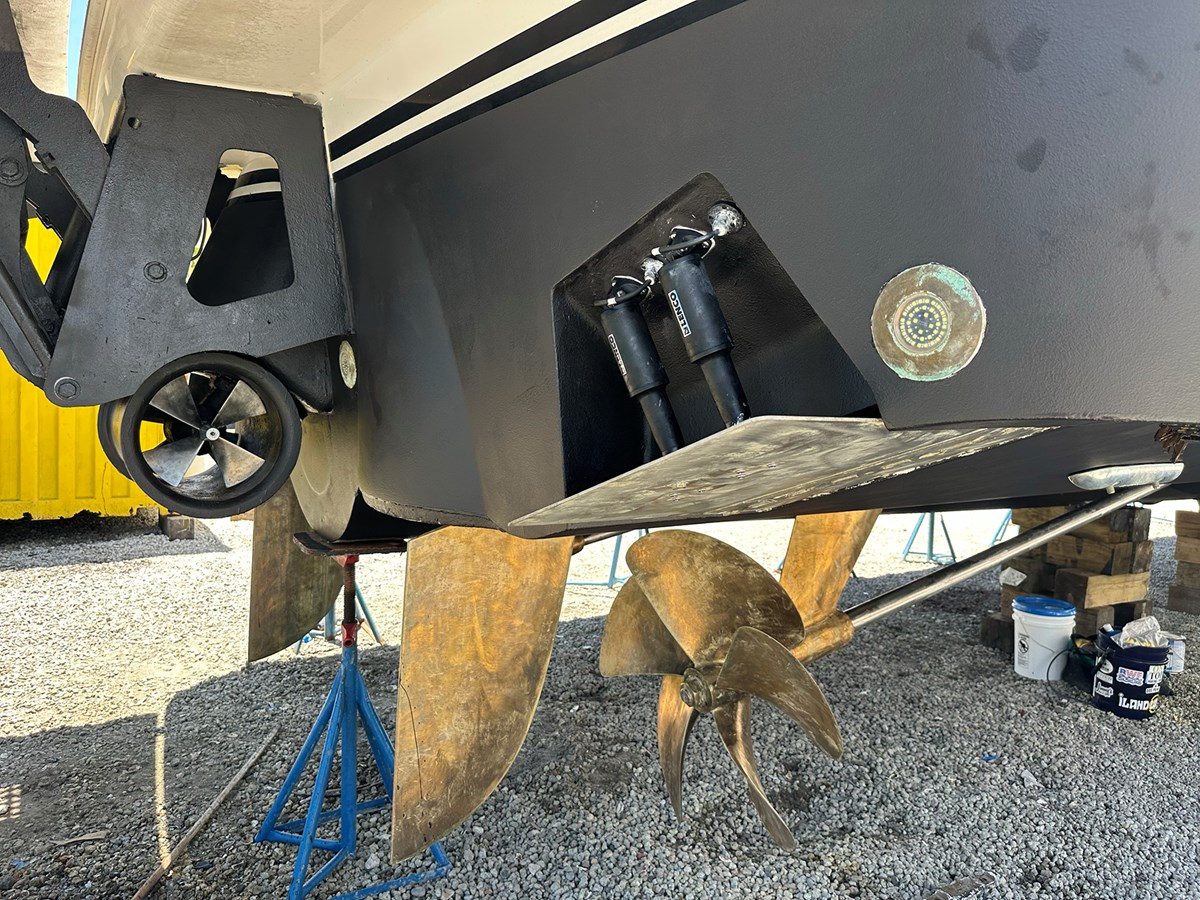

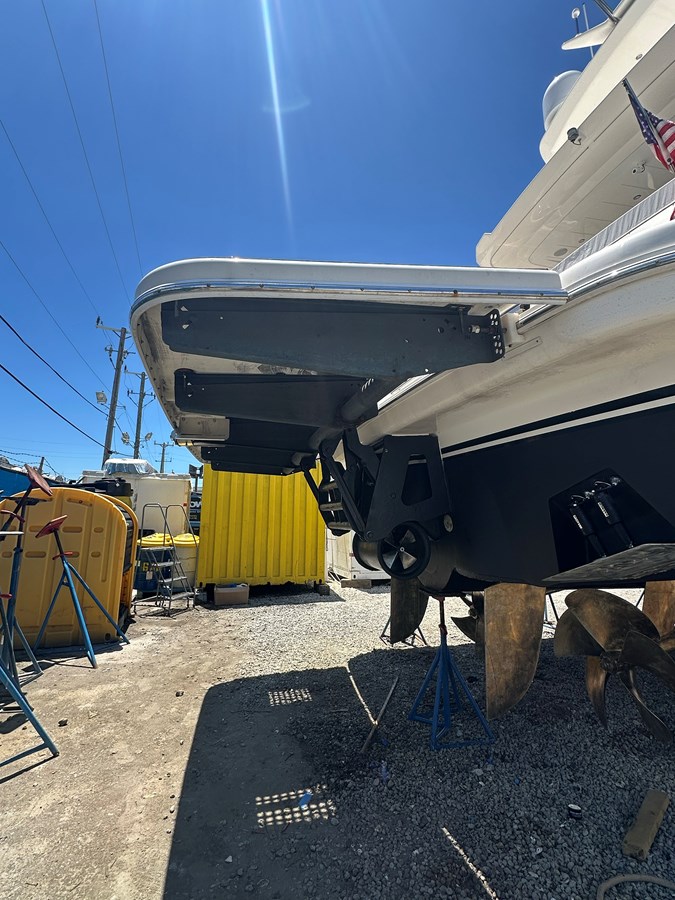

• Propellers: Five blade nibral, 37” x 51”, reported
• Propeller shafts: Stainless steel, 75mm diameter, reported
• Struts: Bronze 19” x 12”, reported
• Strut bearings: Cutlass, not sighted
• Prop protection: Hull, keel & strut, not sighted
• Rudder: Bronze spades 15” x 31”, reported
• Rudder stuff box: Bronze

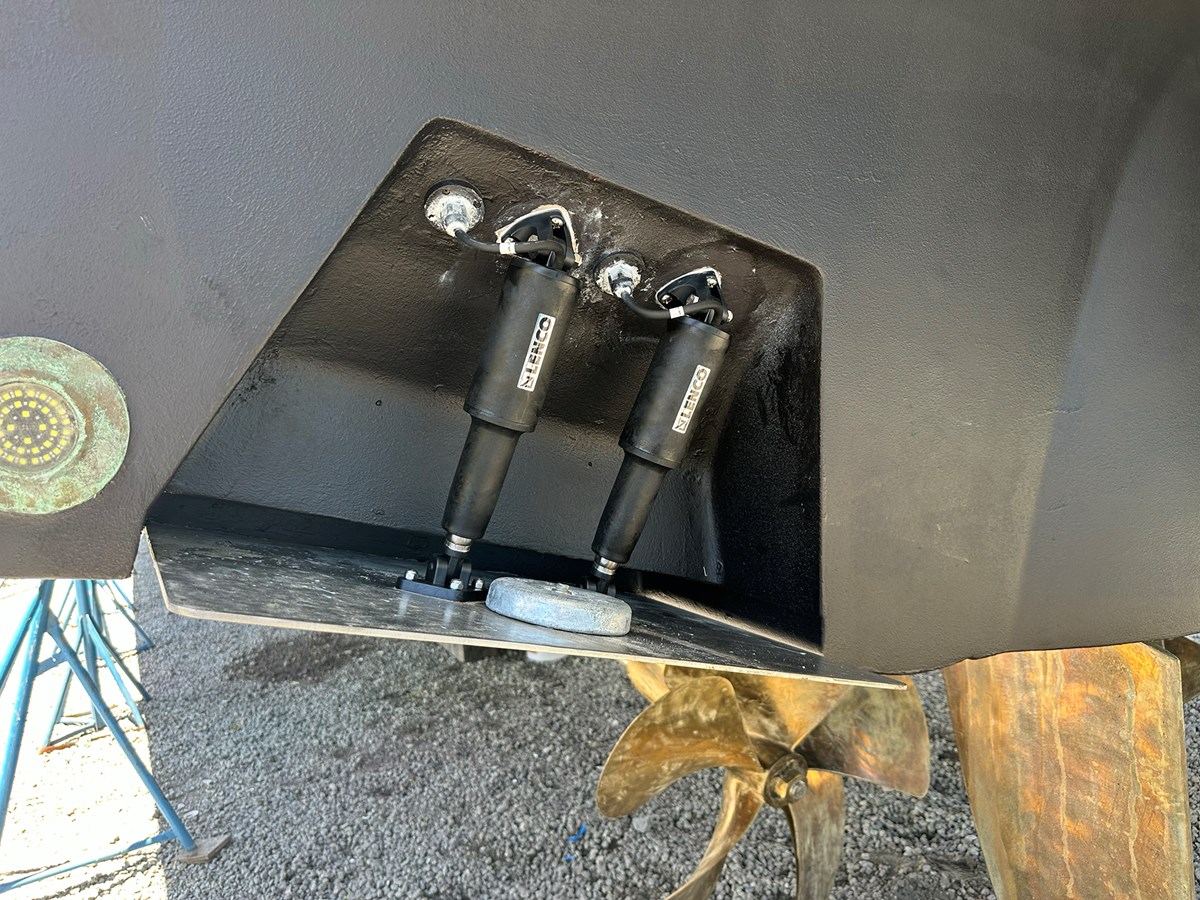

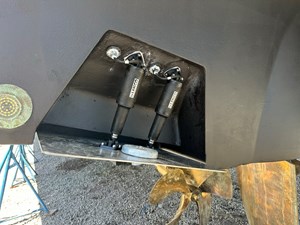

• Trim tabs: Stainless steel double ram 17” x 23”, reported

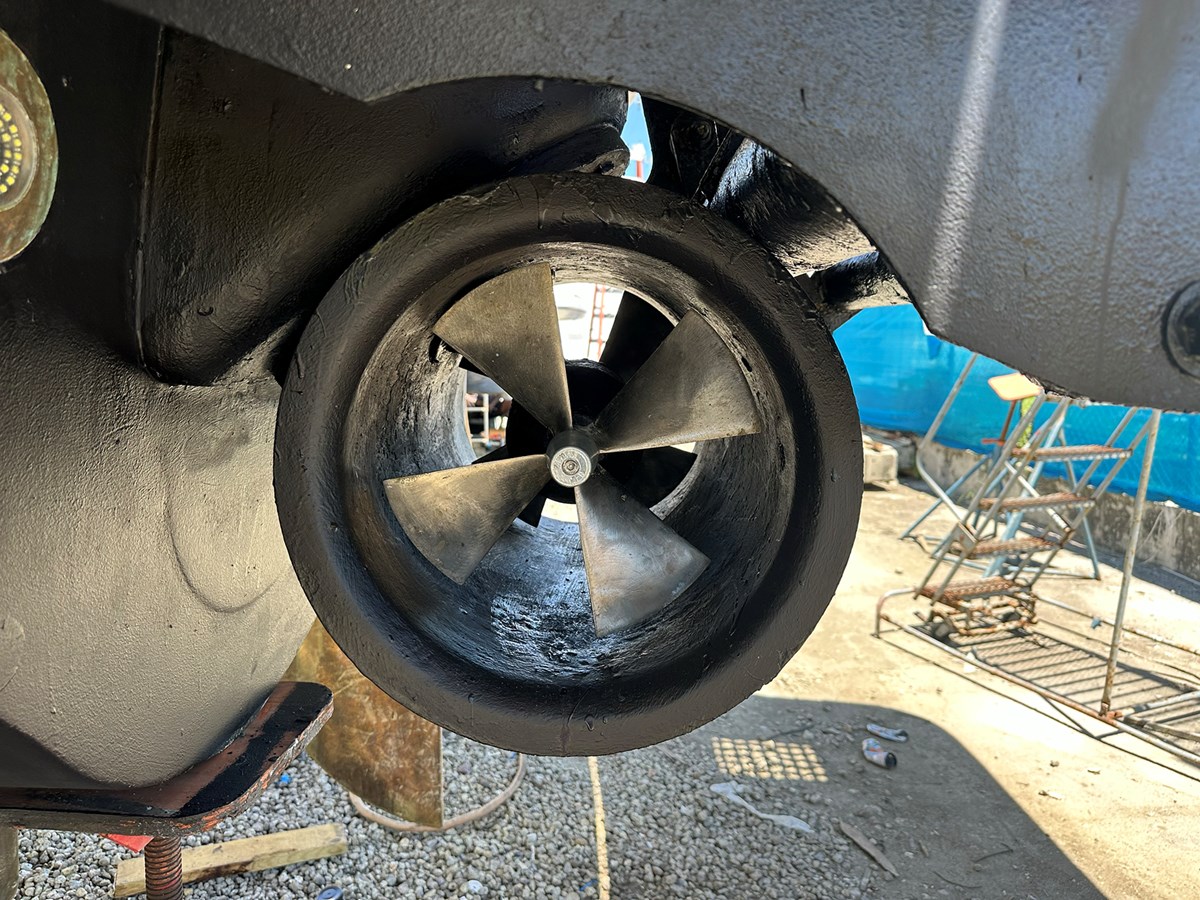

• Bow thruster: “Wesmar” electrical, twin 4 blade in 10” tube, reported
• Stern thruster: “Wesmar” electrical, twin 4 blade in 10” tube, reported
• Stabilizers: 2x Seakeeper 6 & 9
• Other: Reverso oil change system

Transmissions

• Type: ZF
• Model: ZF 2000
• Reduction ratio: 2.519:1

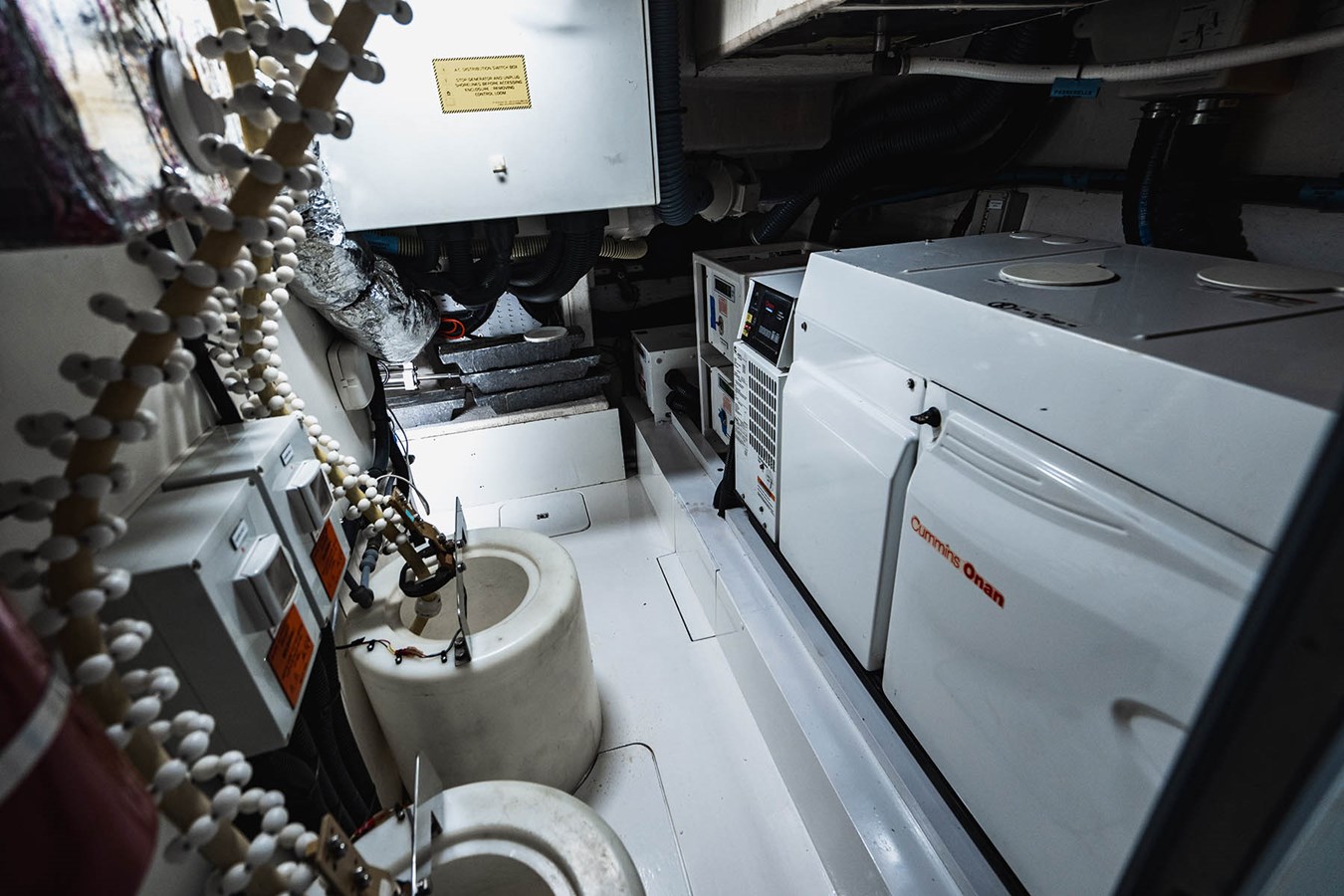

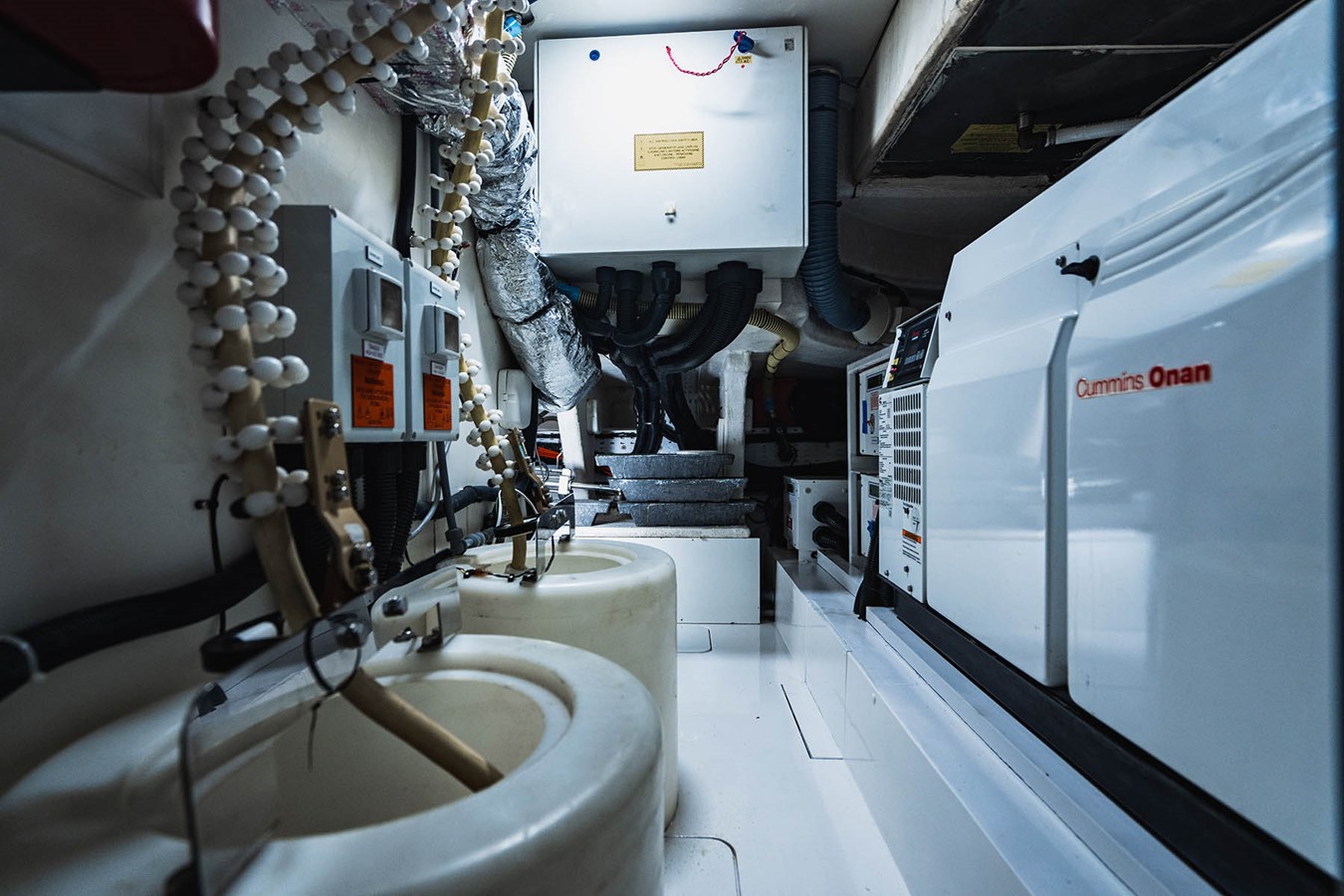

Generators

• Aux. generator: Onan / Hours: 3938
• Location: In lazarette
• Model: 27.5MDKBT-6768A
• Kilowatts: 27.5
• Voltage: 120/240
• No. cylinders: Four
• RPM: 1800
• Cooling system: Fresh water
• Exhause line: Hose
• Exhaust muffler: Aqualift
• Fuel pump: Electrical
• Filters: Separ in-line w/bowl on engine
• Actual output: 243 Voltz / 60 Hz / 57 amps

Electrical

• 12 Volt charger: 10 amp Mastervolt
• 24 Volt charger: 2x 75 amp Mastervolt
• 48 Volt charger: 2x 20 amp interacter, reported
• DC converter: Newmar
• Shore transformers: “Asea”
• Battery installation: 4 x 12 Volt in forward bilge for bow thruster
• Battery installation: 6 x 12 Volt aft of starboard engine
• Battery installation: 4 x 12 Volt aft of port main
• Battery installation: 1 x 12 Volt in lazarette for generator
• Battery installation: 4 x 12 Volt in lazarette for stern thruster
• Battery switches: Remote type + three approved type
• Drip pans: Fiberglass boxes with lids + brackets, secure
• Lights: 24 Volt DC & 110 Volt AC
• 250 Volt shore receptacles: Two x 50 amp on power reels
• Phone / TV receptacles: Yes
• 50 amp cables: Two x 250 Volt x 75 ft on power reels

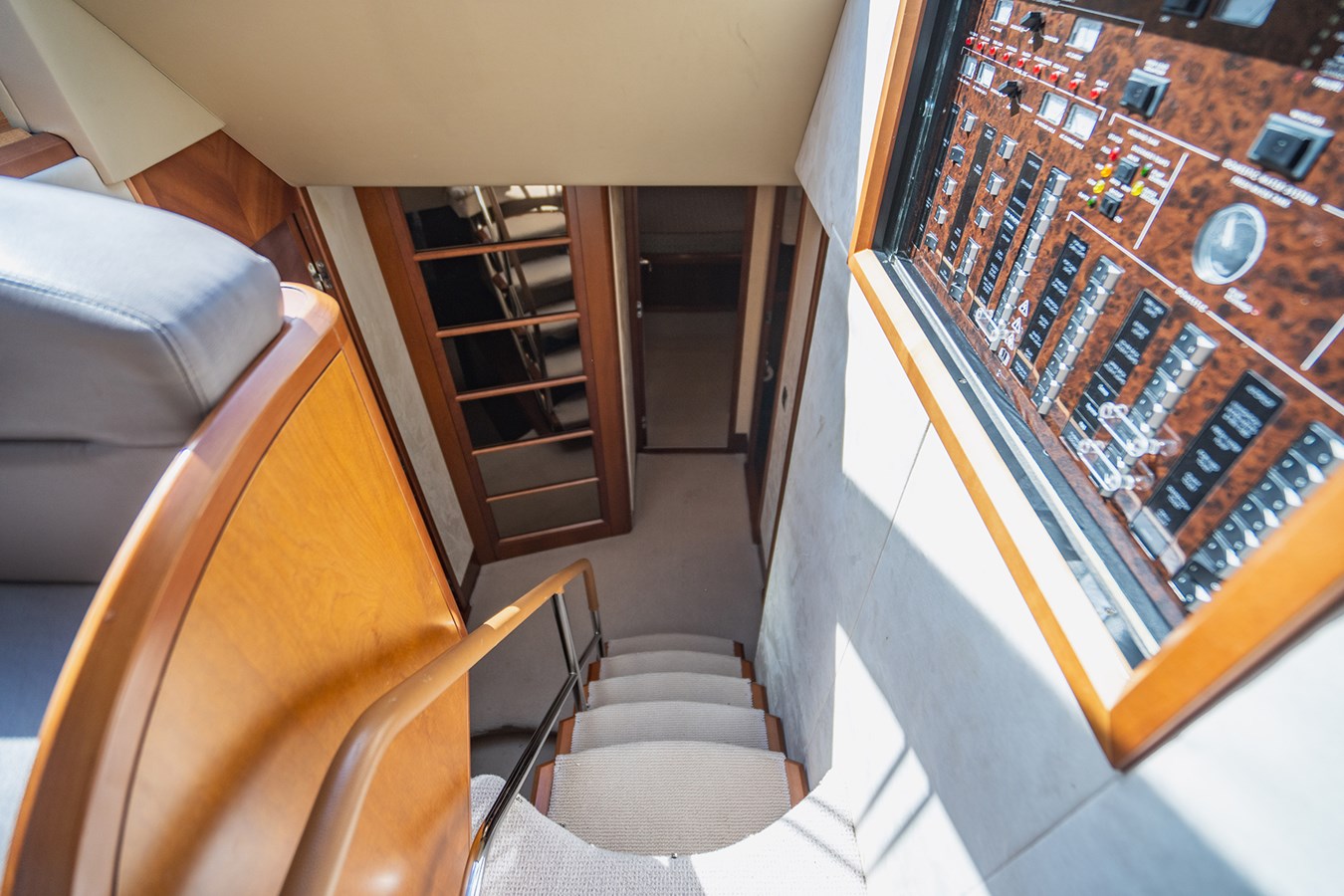

• AC. switchboard: Lazarette & lower helm
• DC. switchboard: As above
• Circuit breakers: Yes
• Lightening arrester: Bonding system
• Air conditioning system: “Dometic” & “Aqua Air”
• Reverse cycle heating: In the above
• Steering gear: Electric, hydraulic

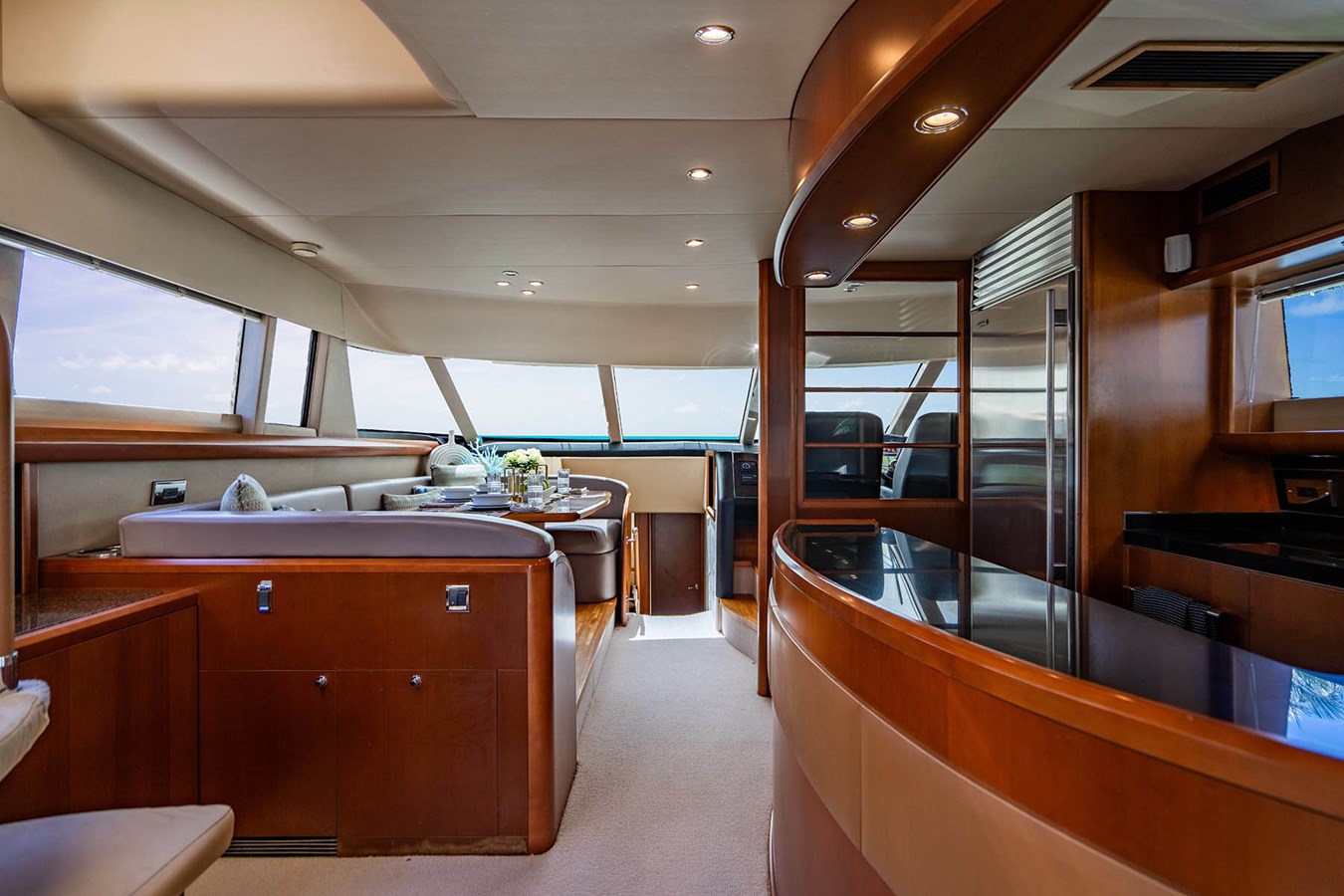

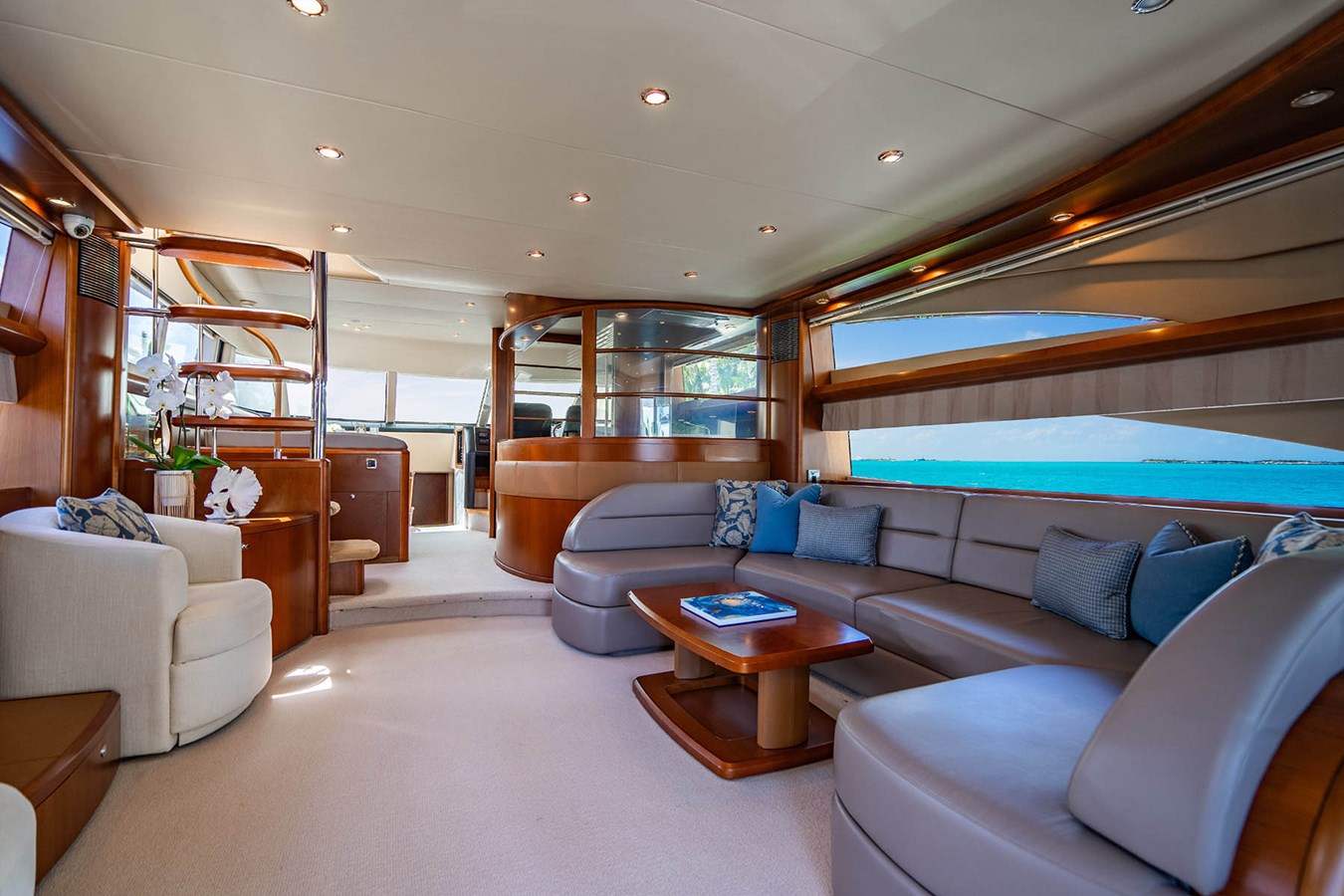

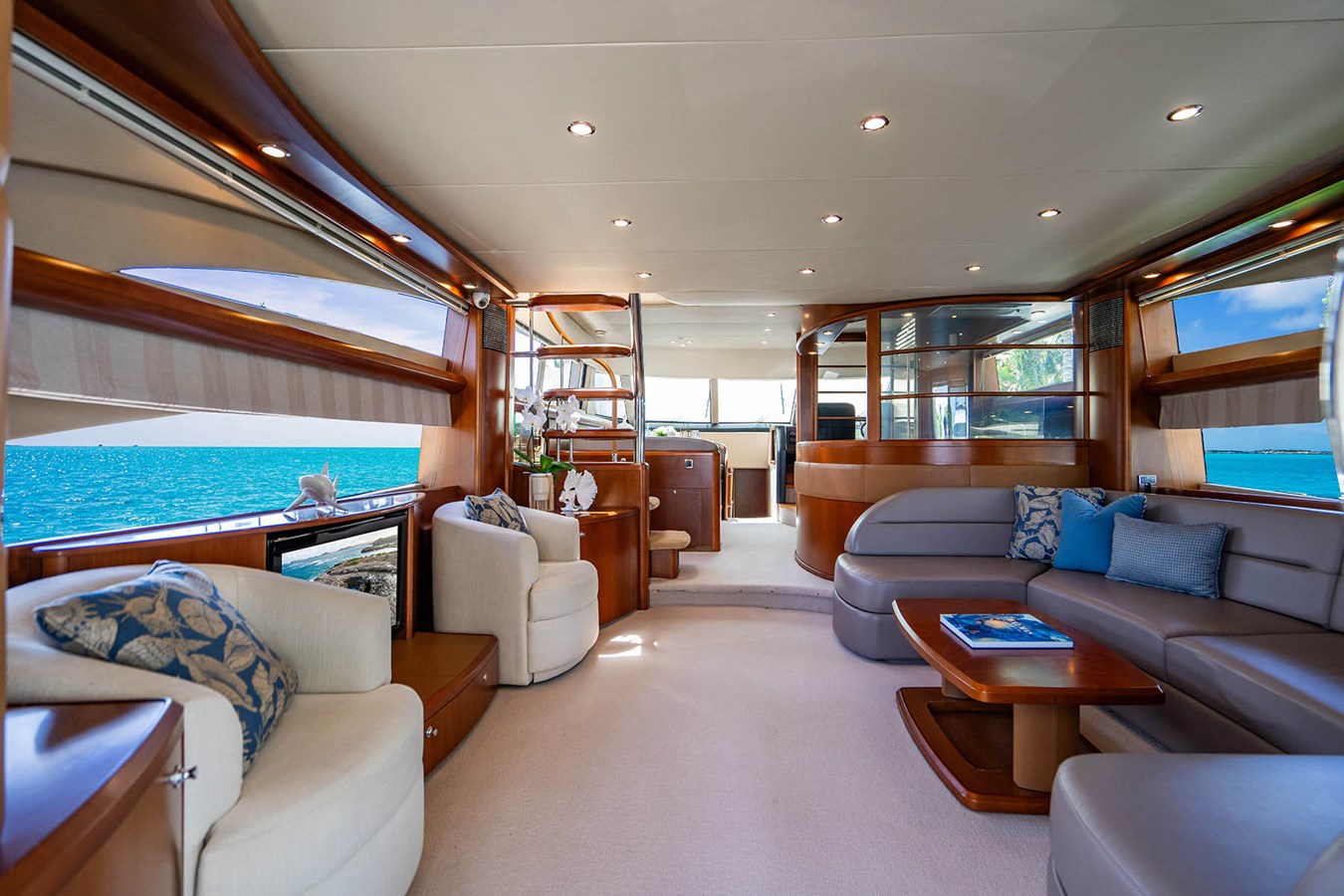

Interior

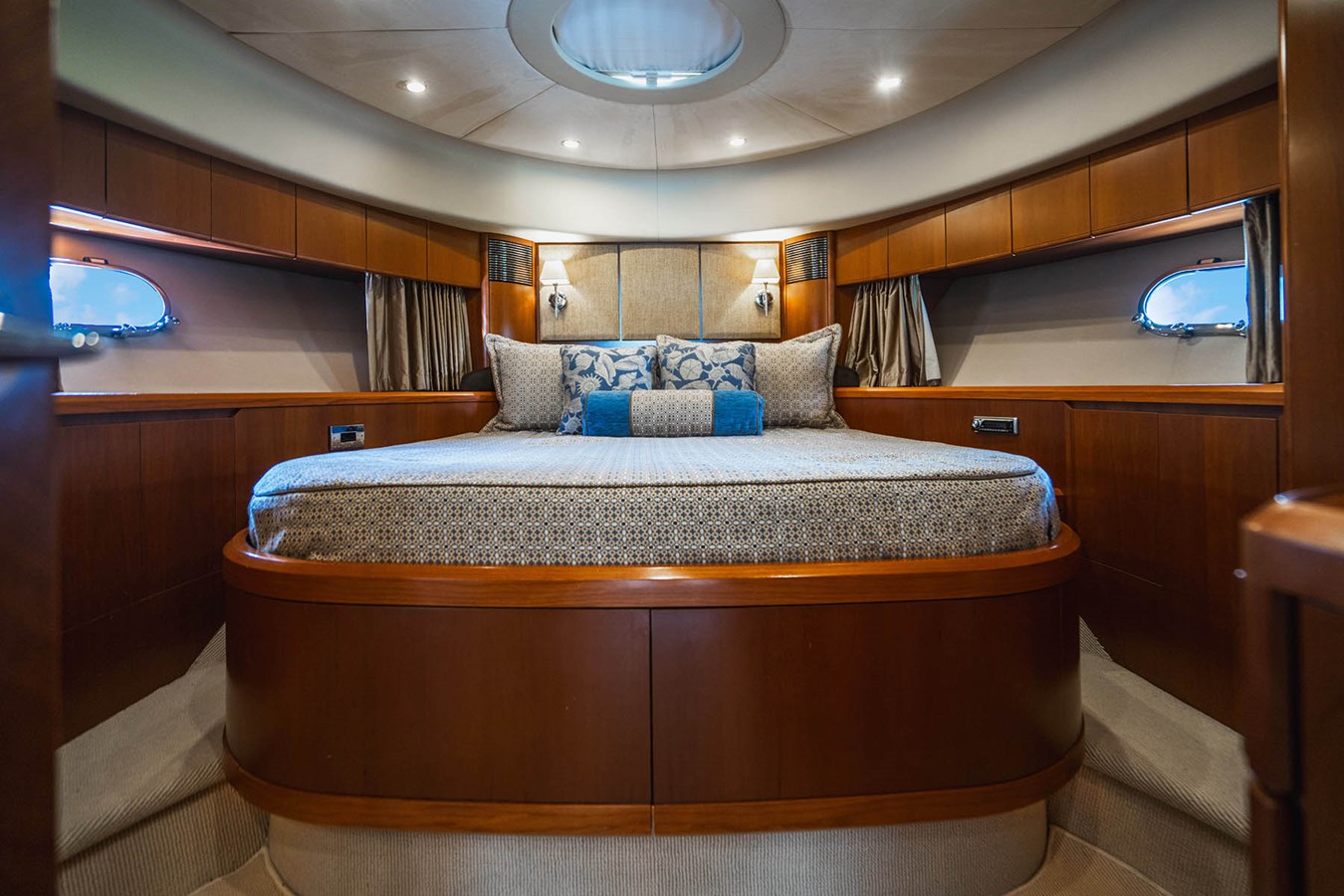

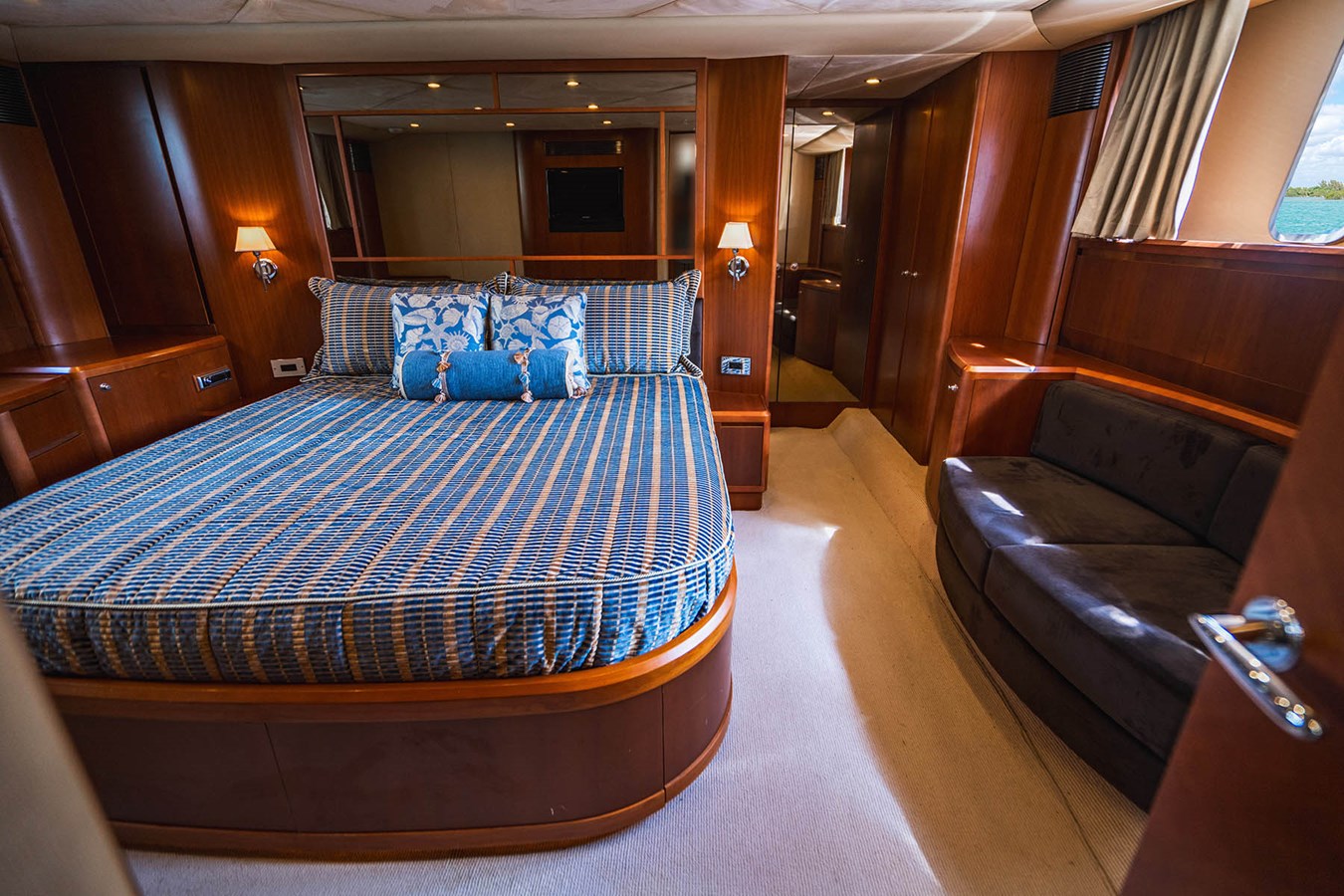

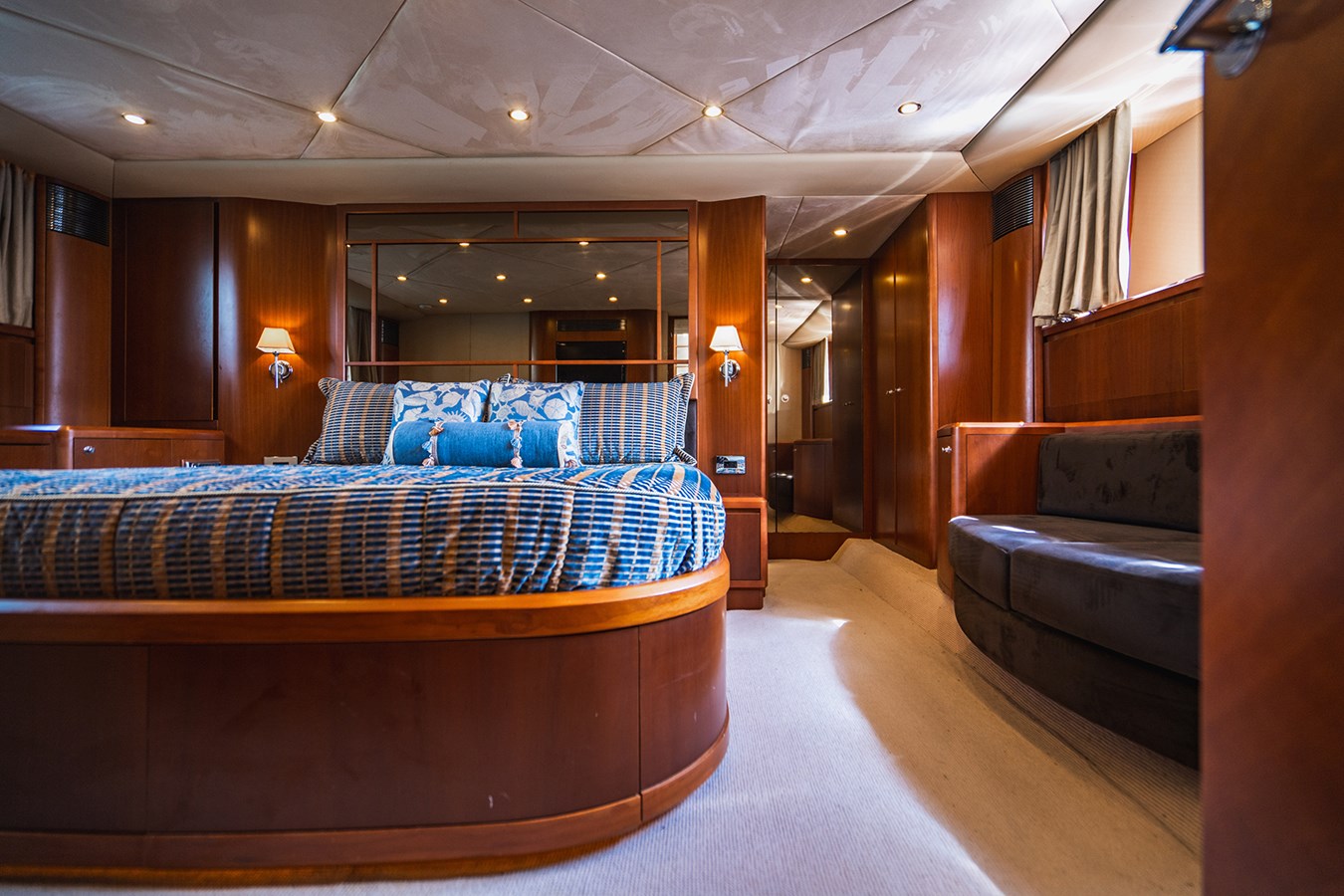

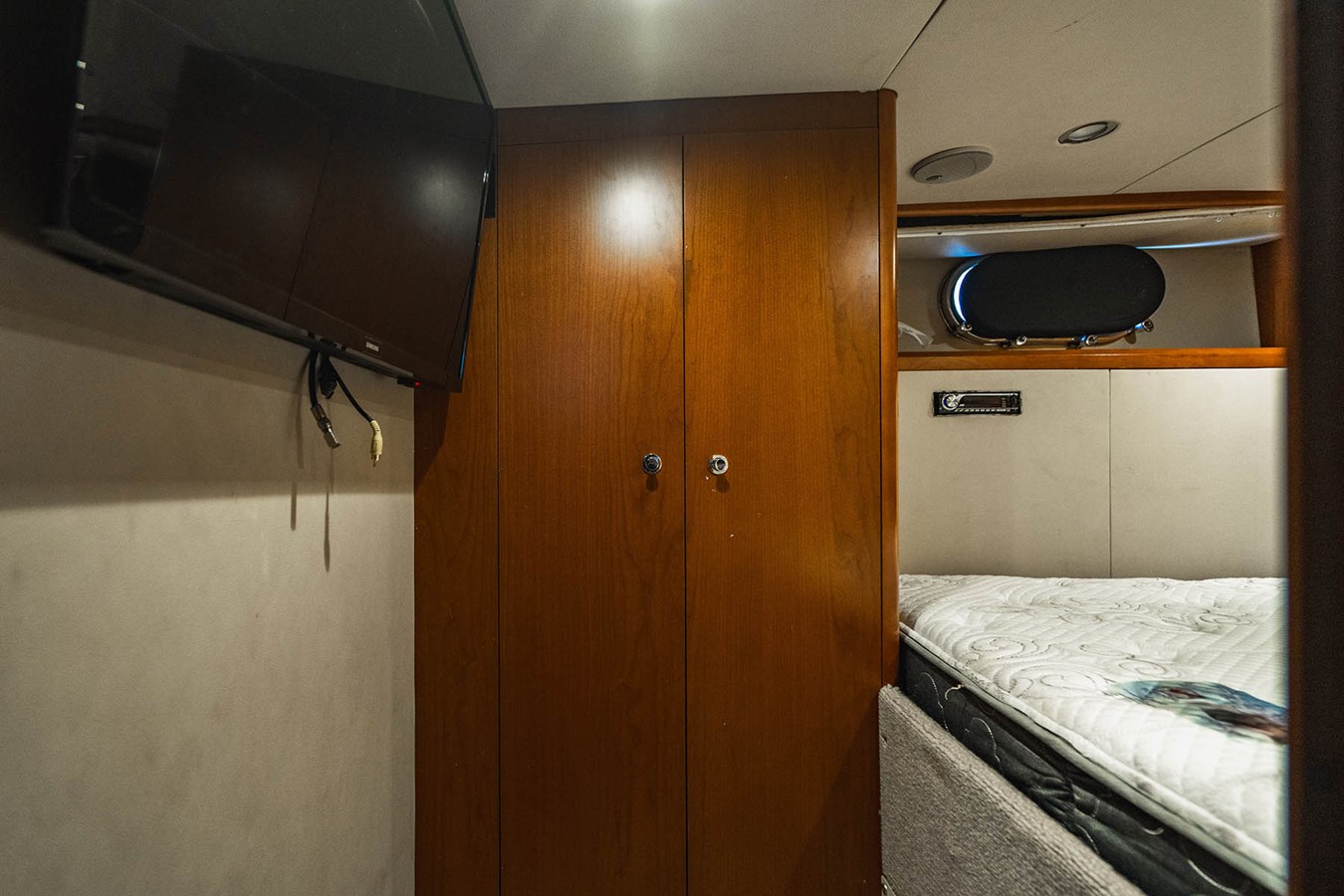

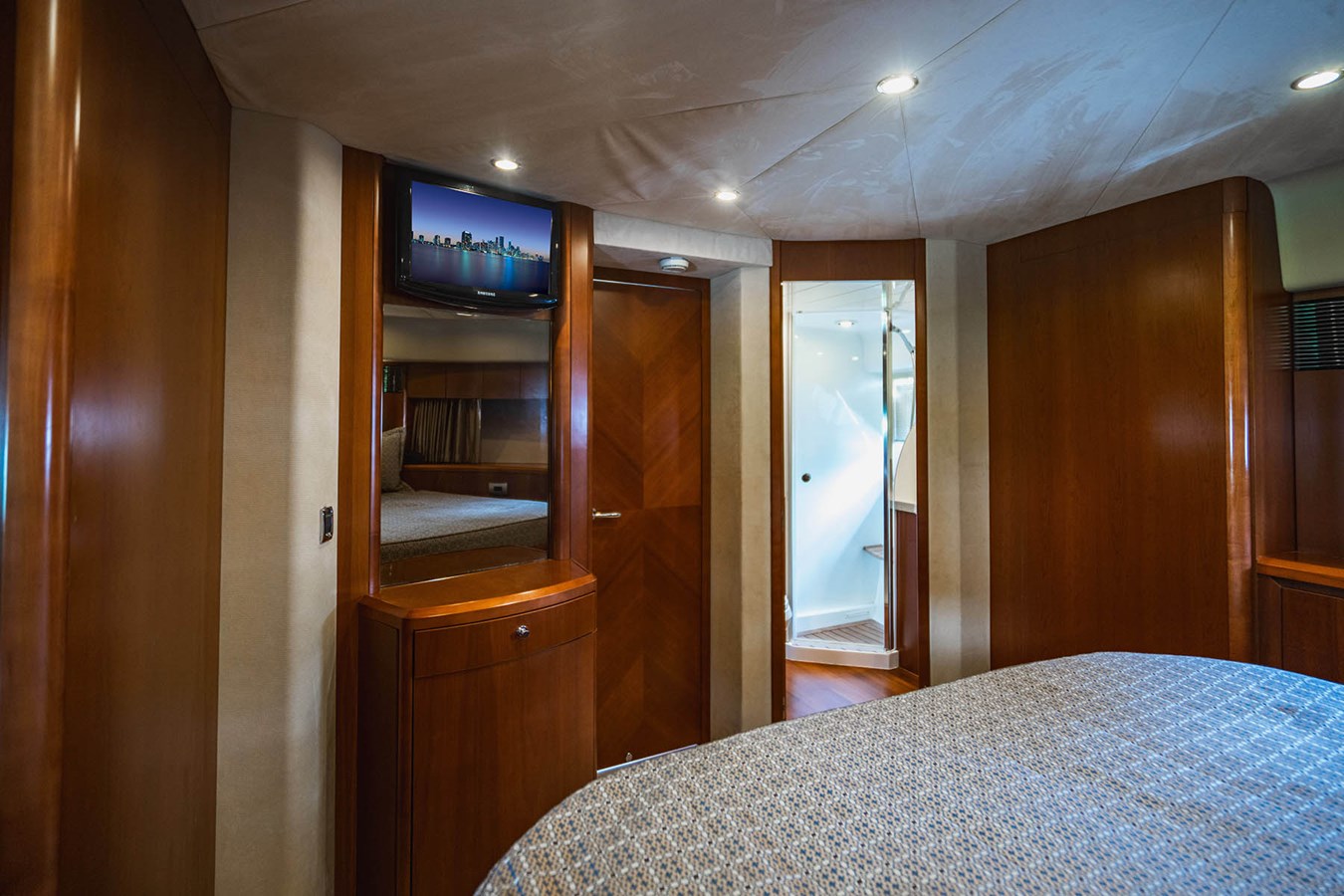

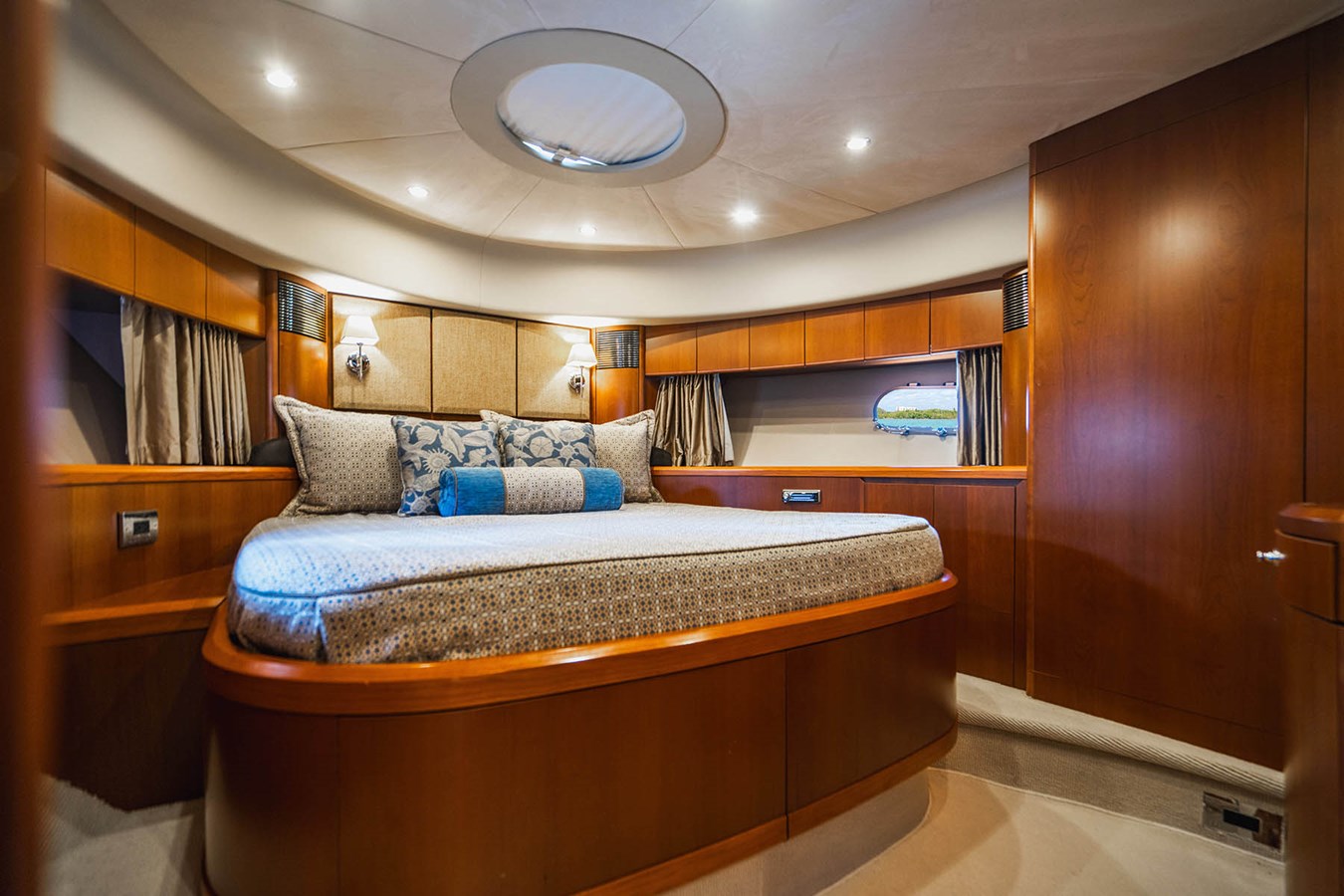

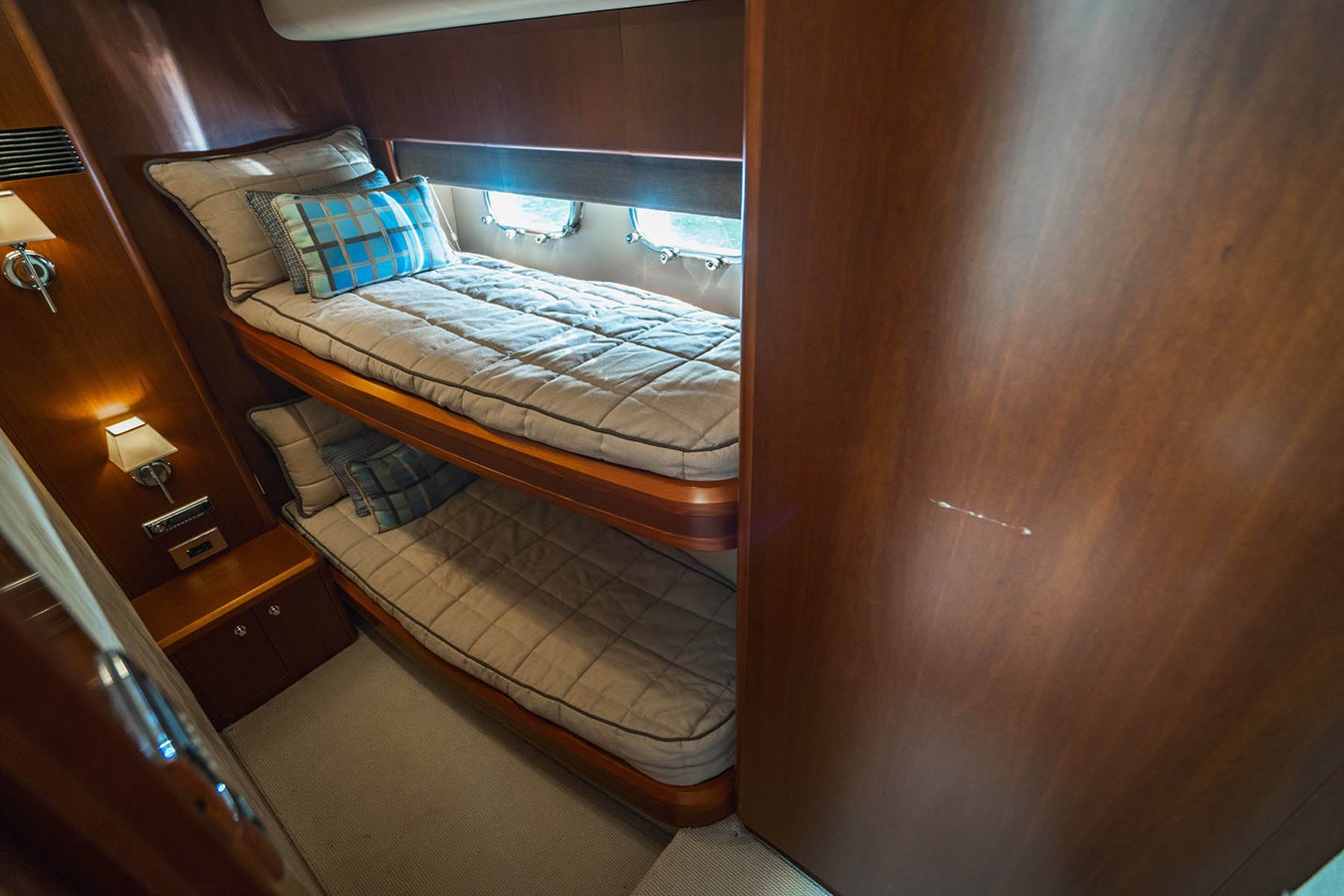

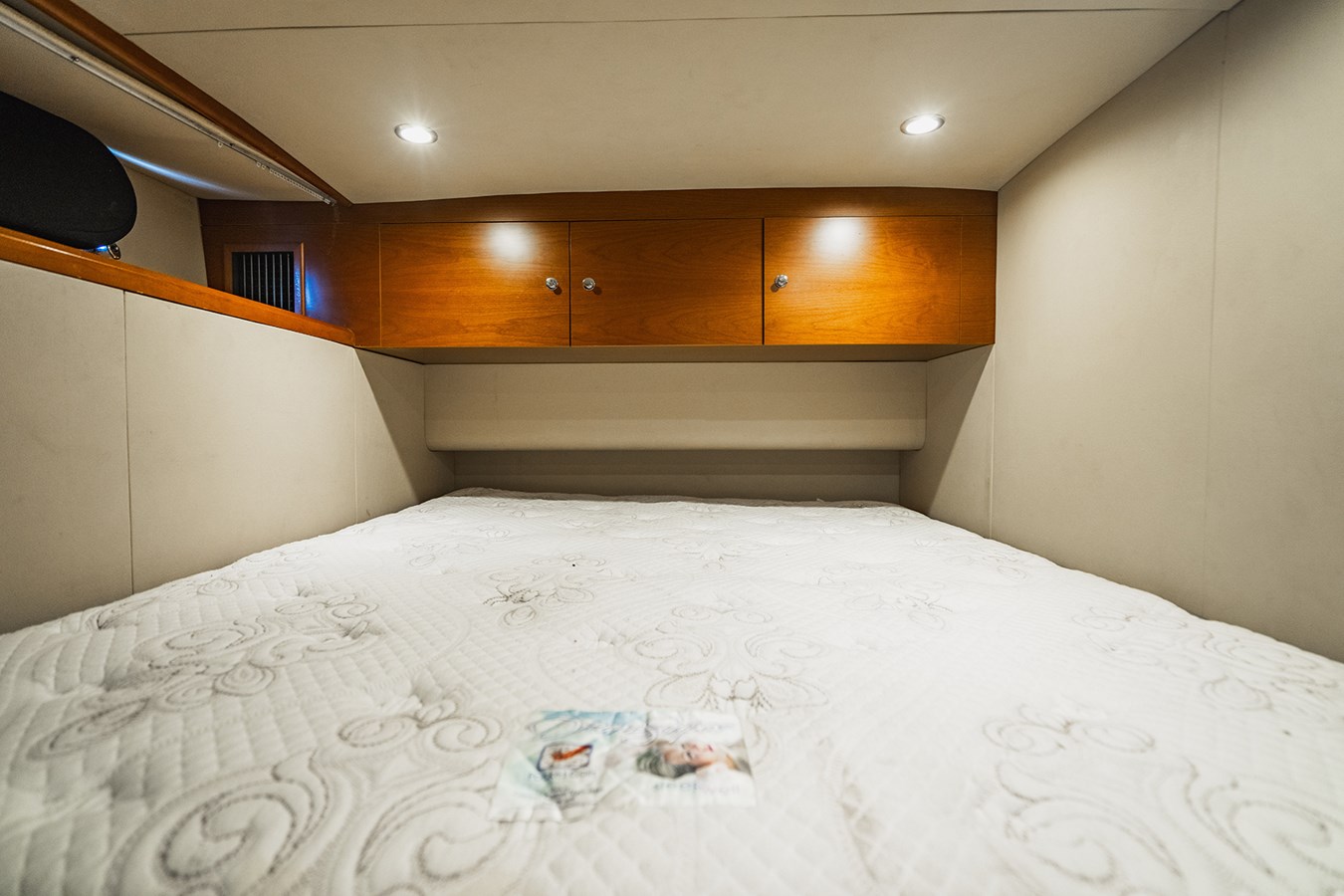

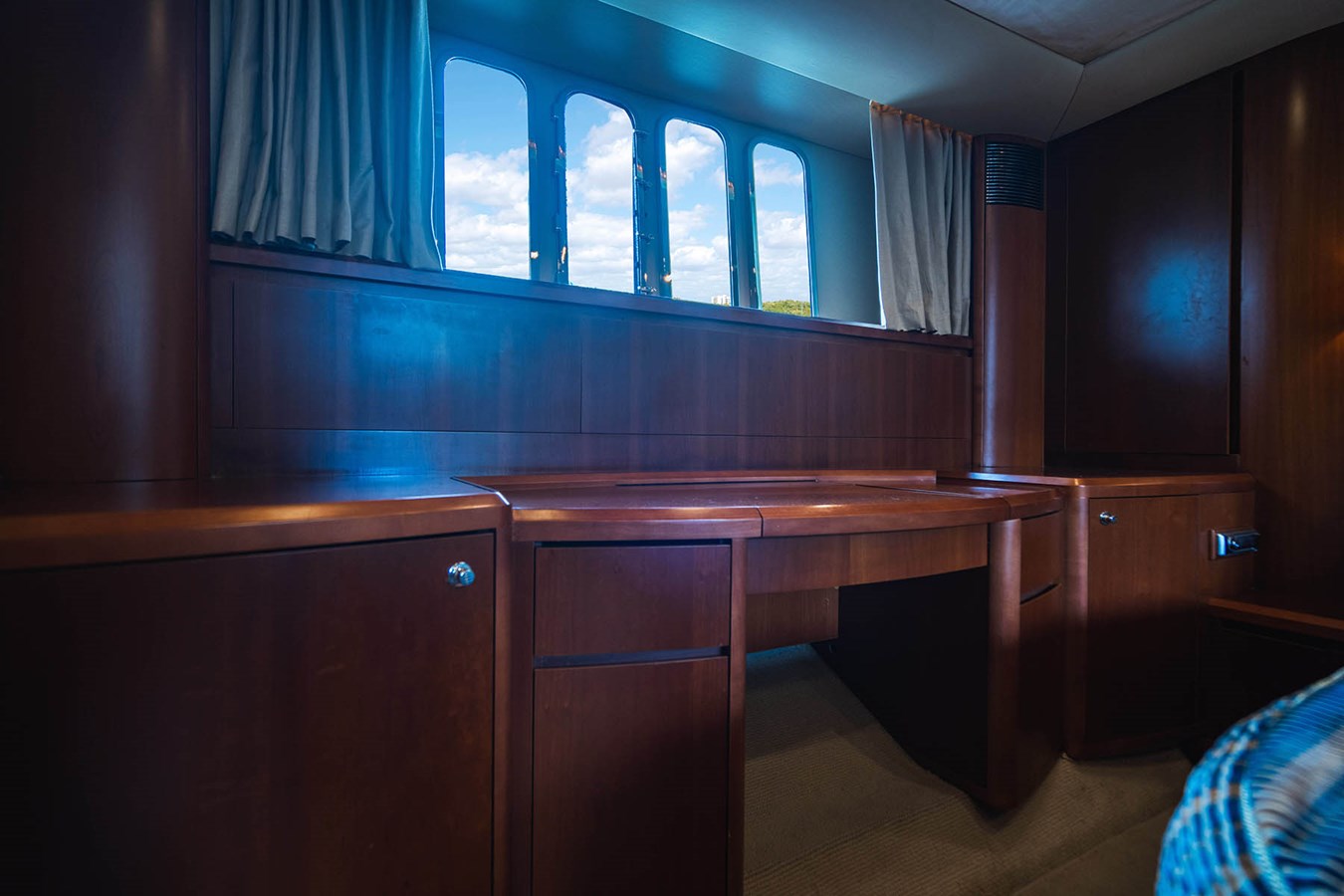

• No. of cabins: Four + crew

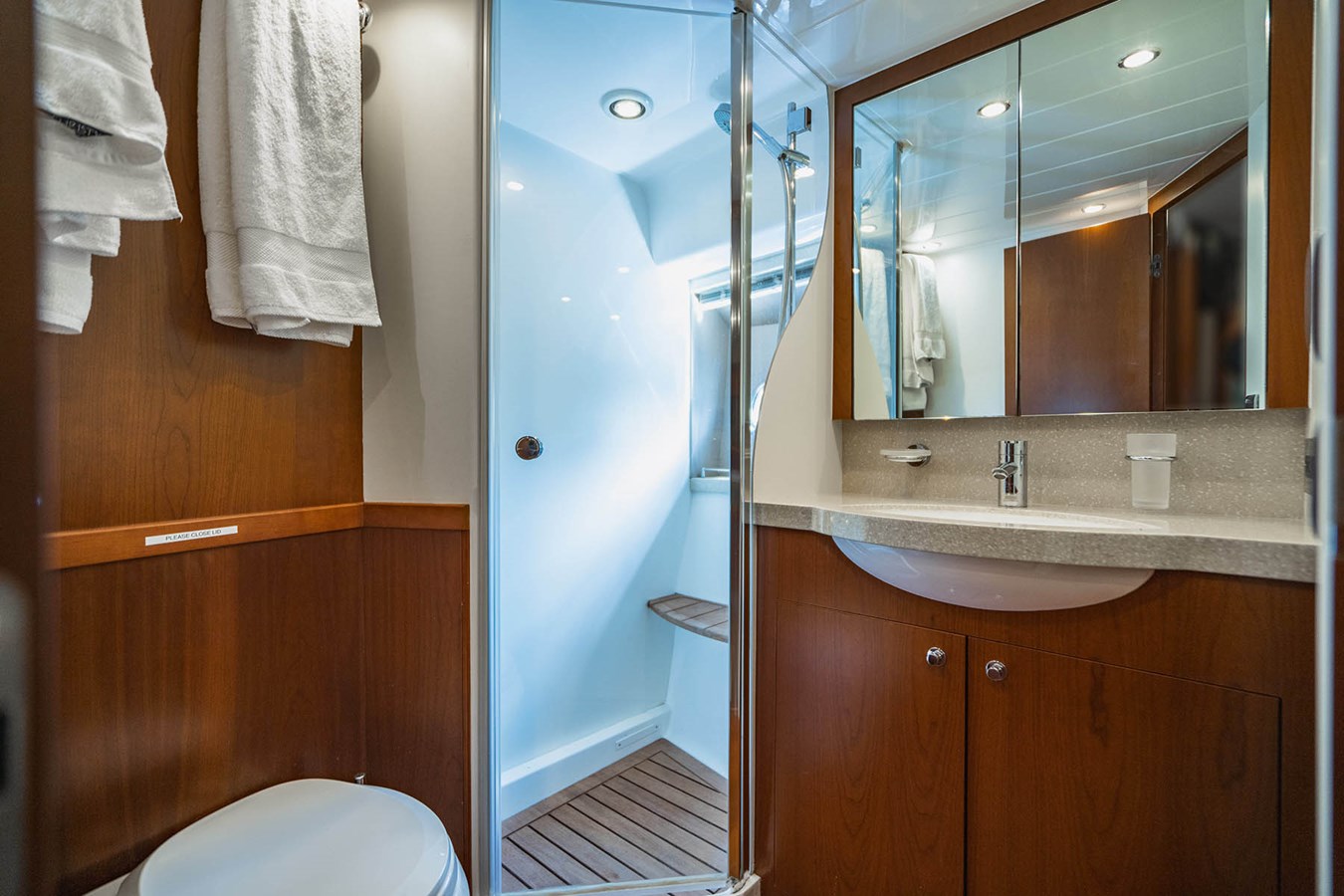

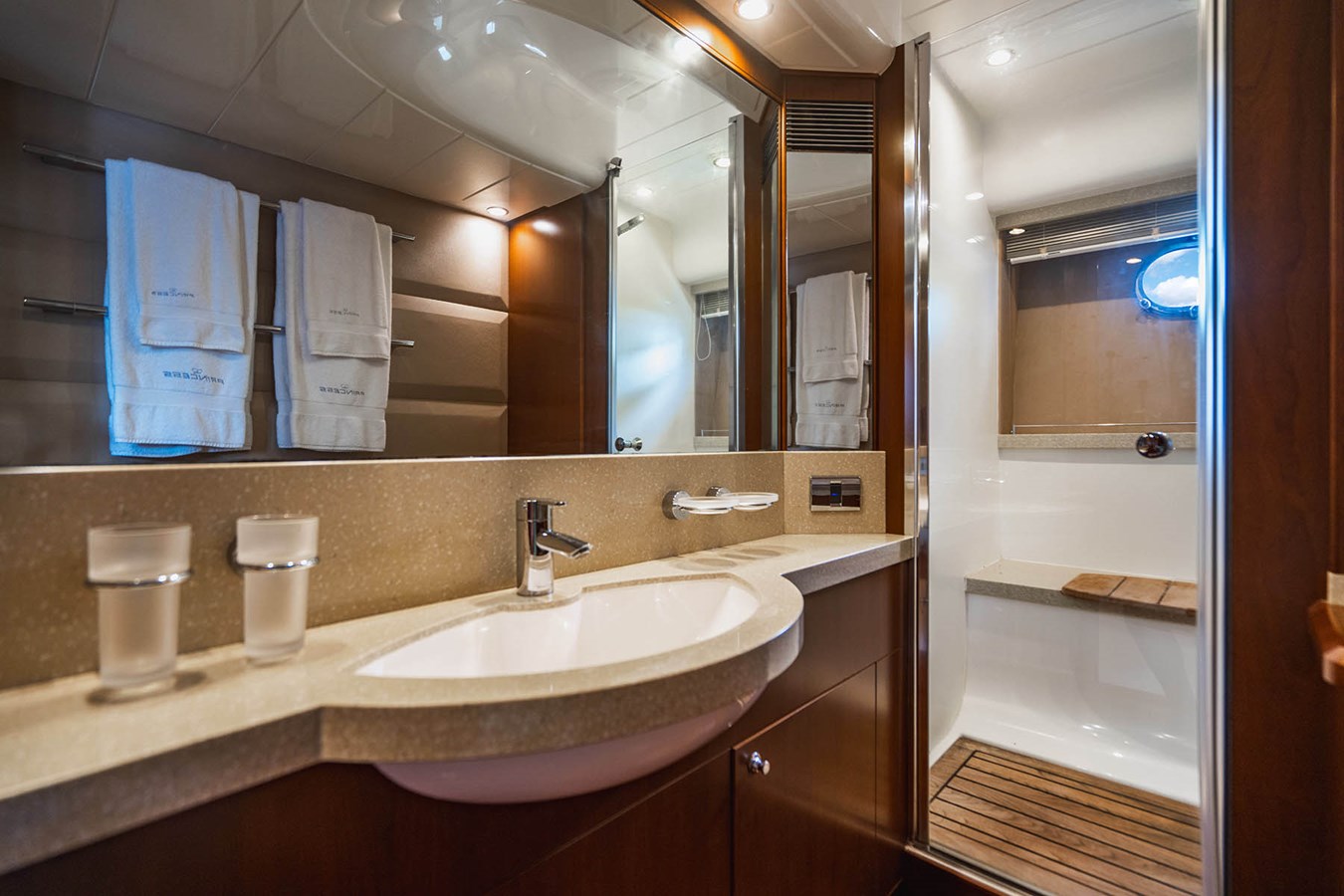

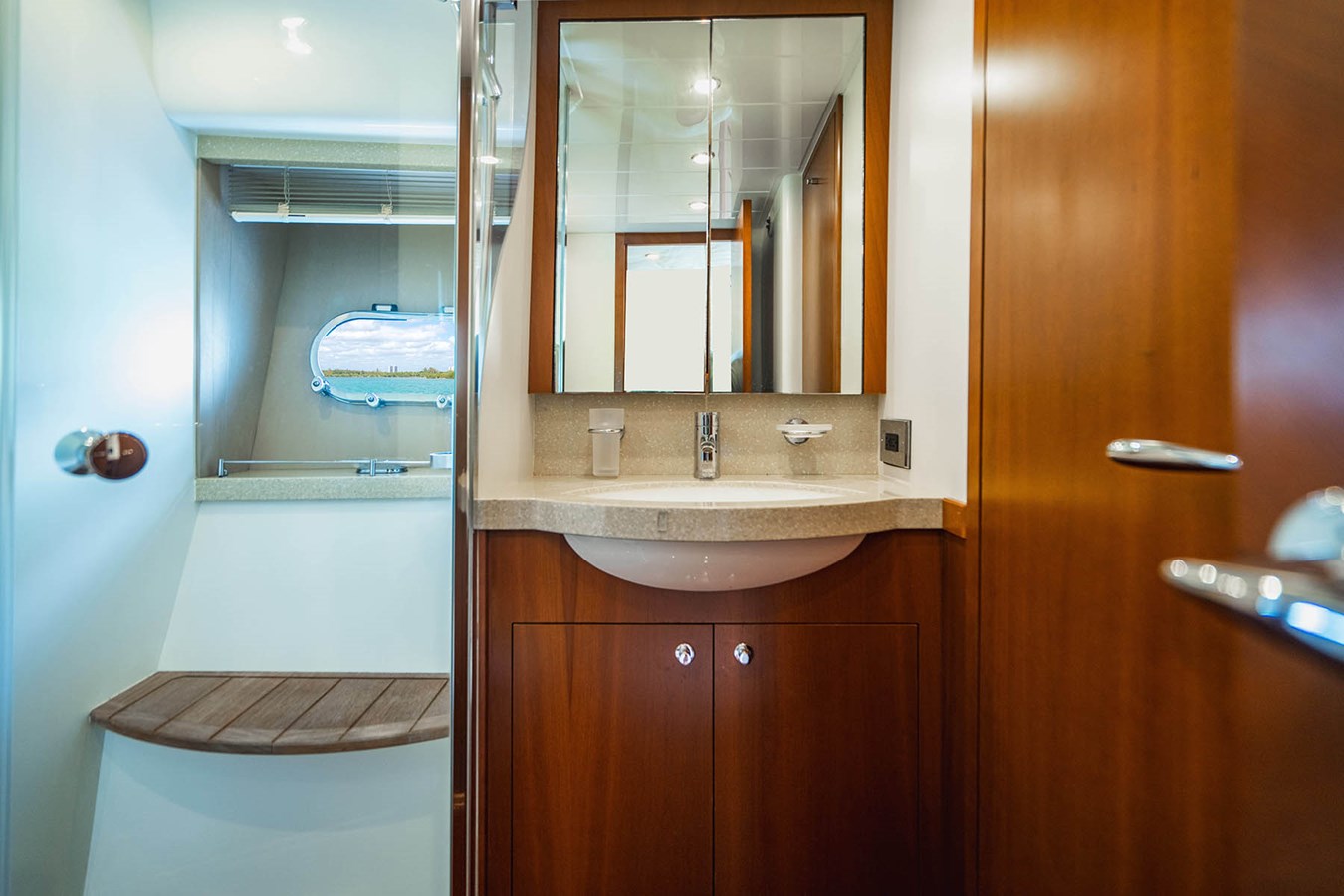

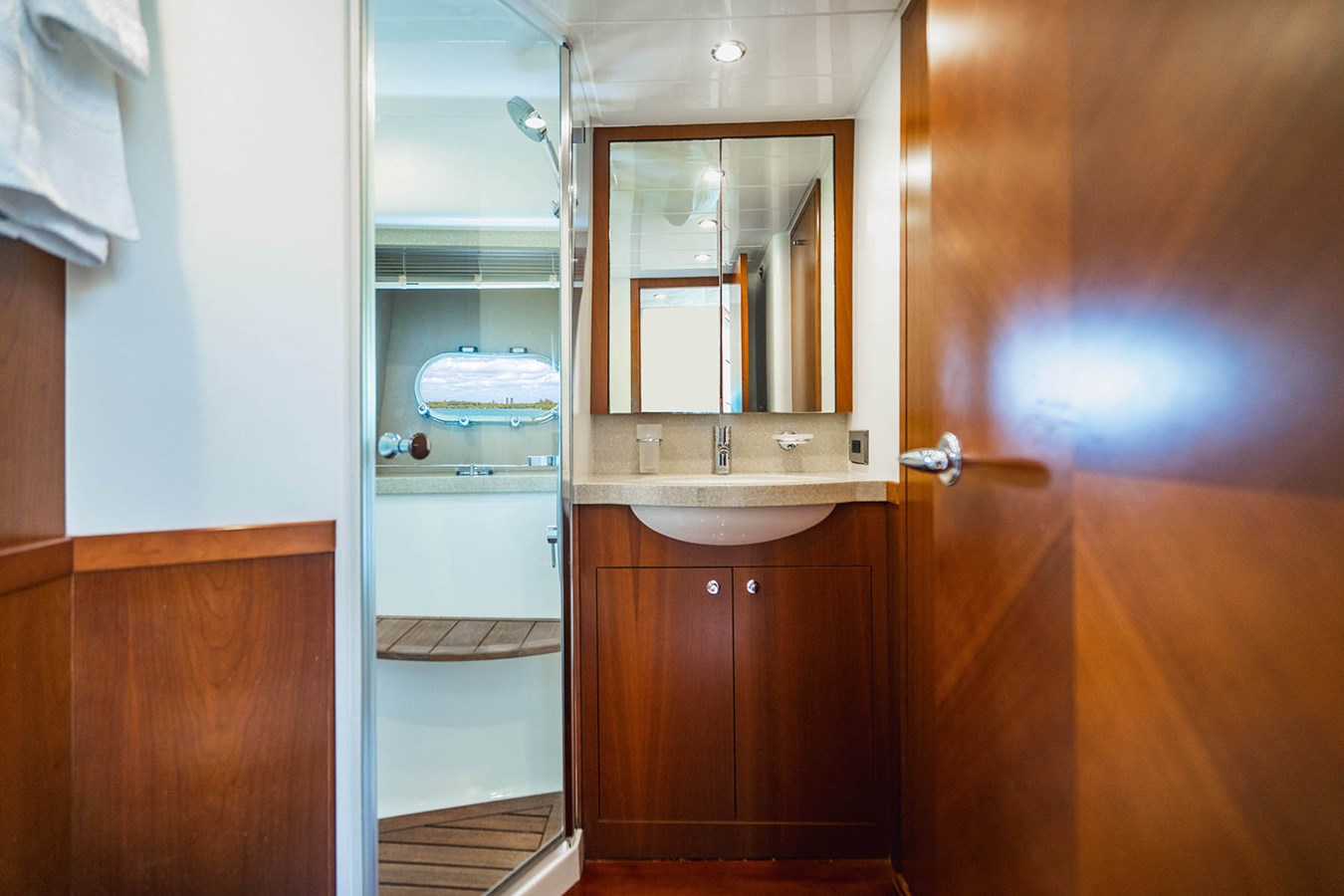

• Enclosed heads: Three + crew

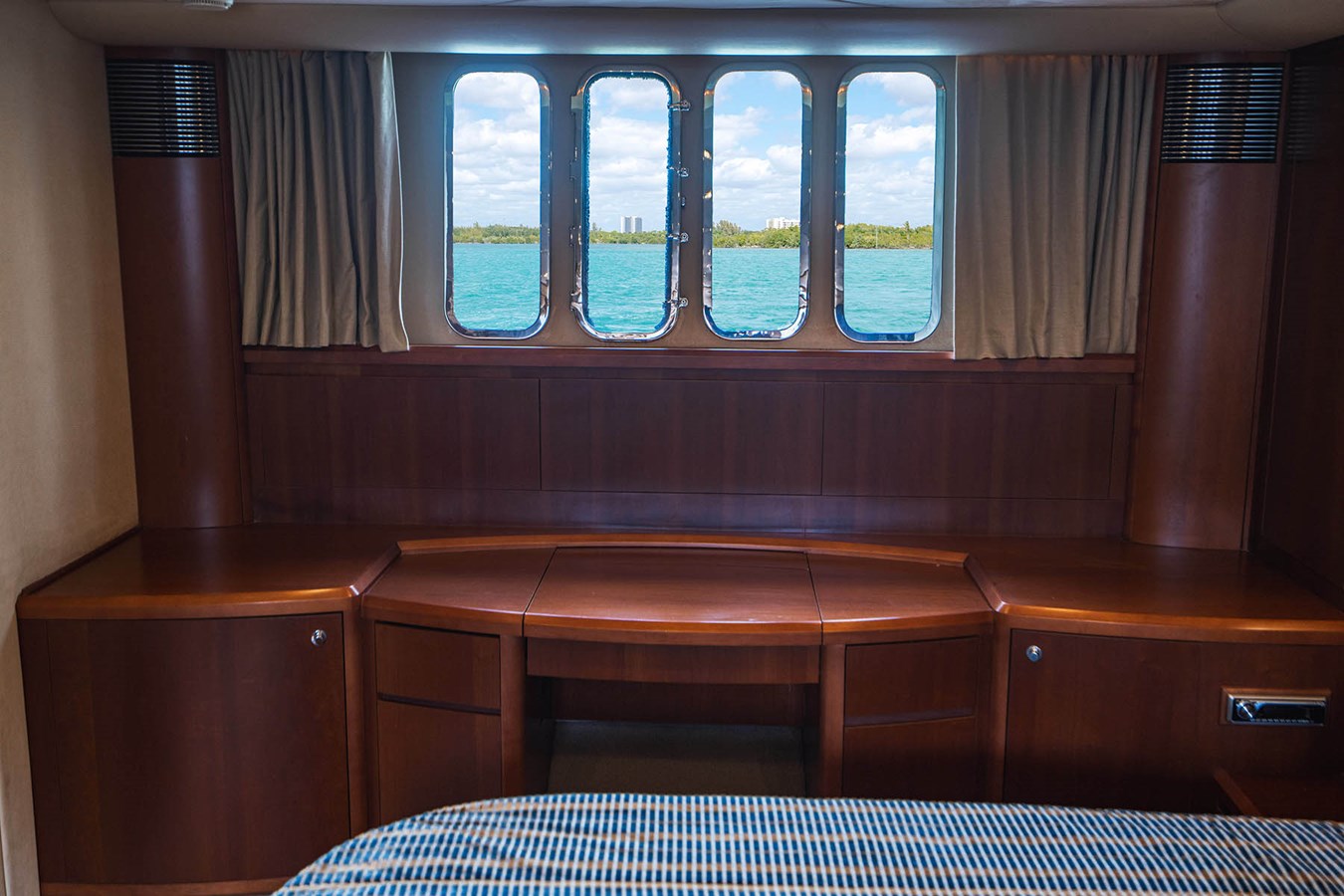

• Interior finish: Satin cherry
• Trim: Satin cherry

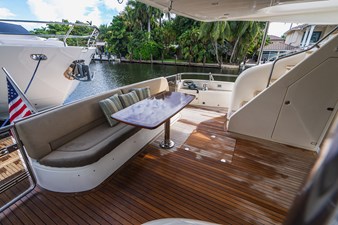

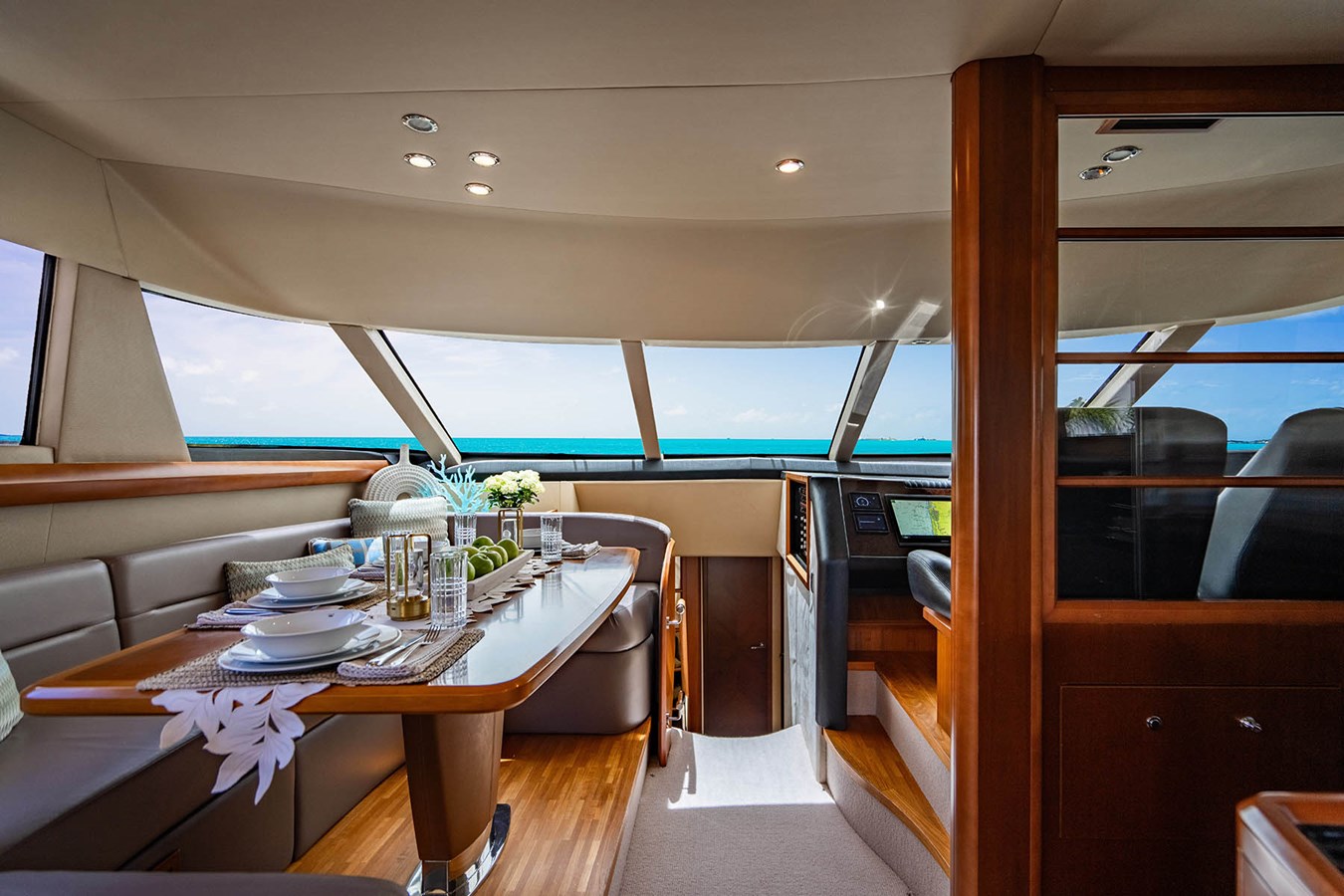

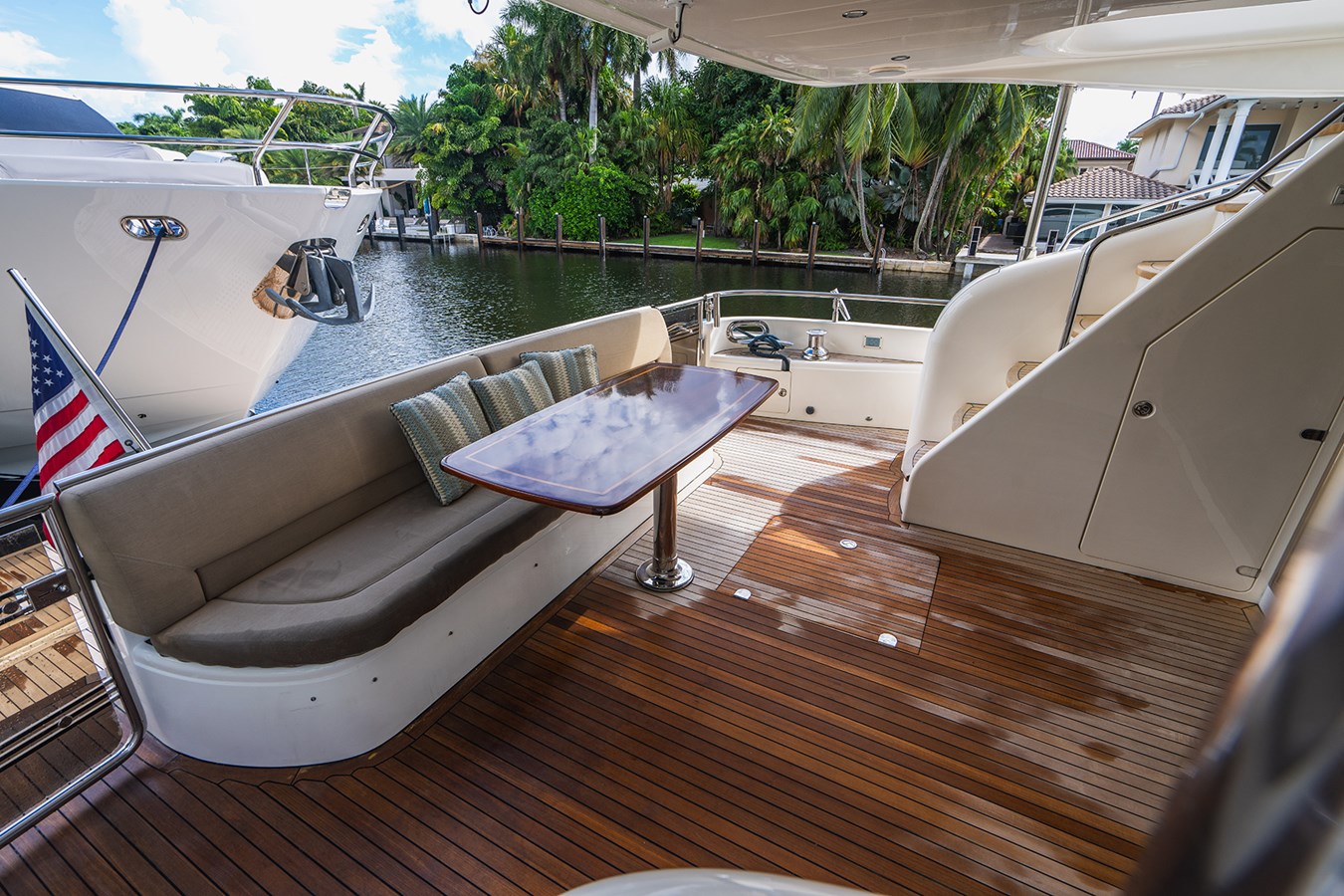

• Dinette: Opposite galley + aft deck & flybridge tables

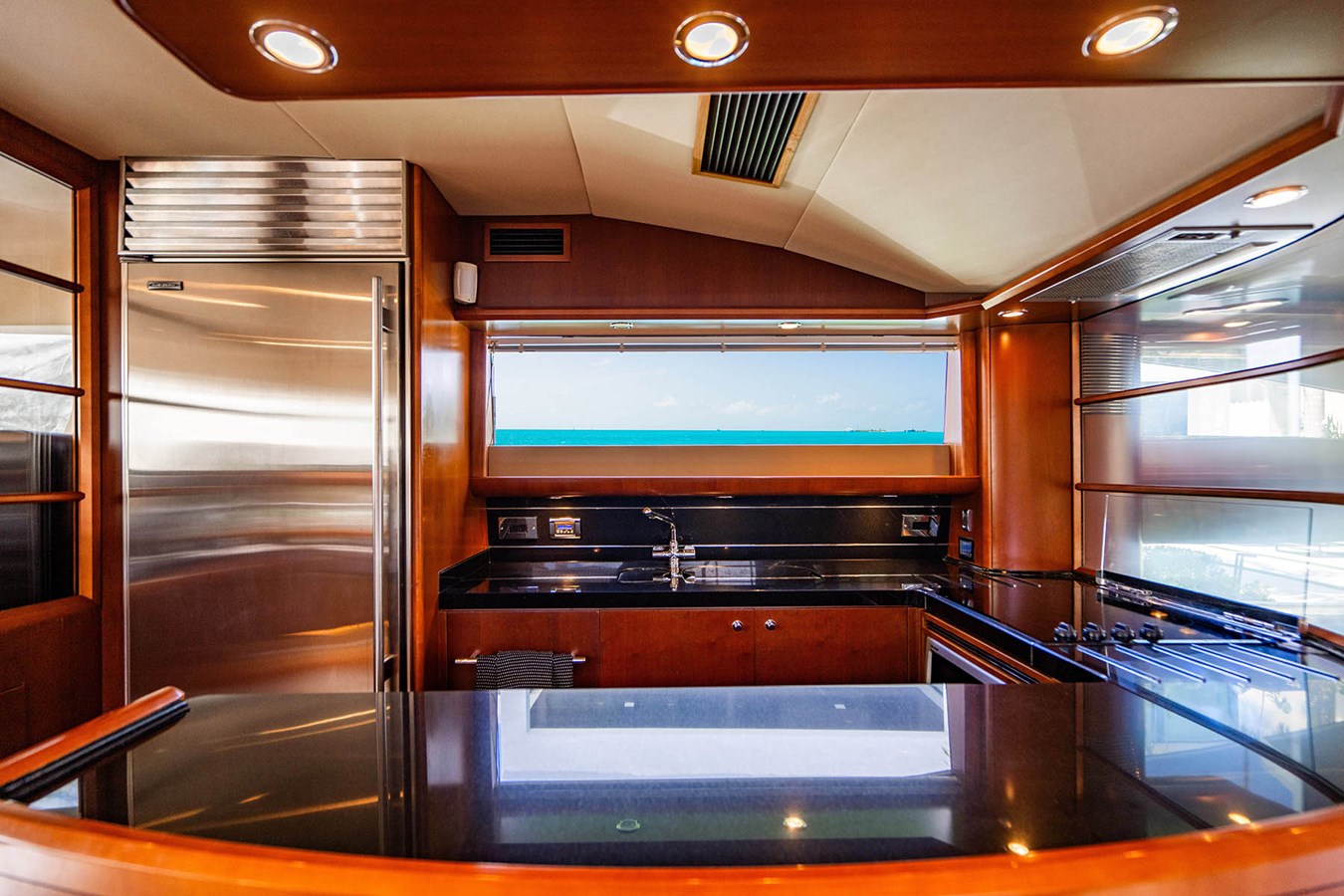

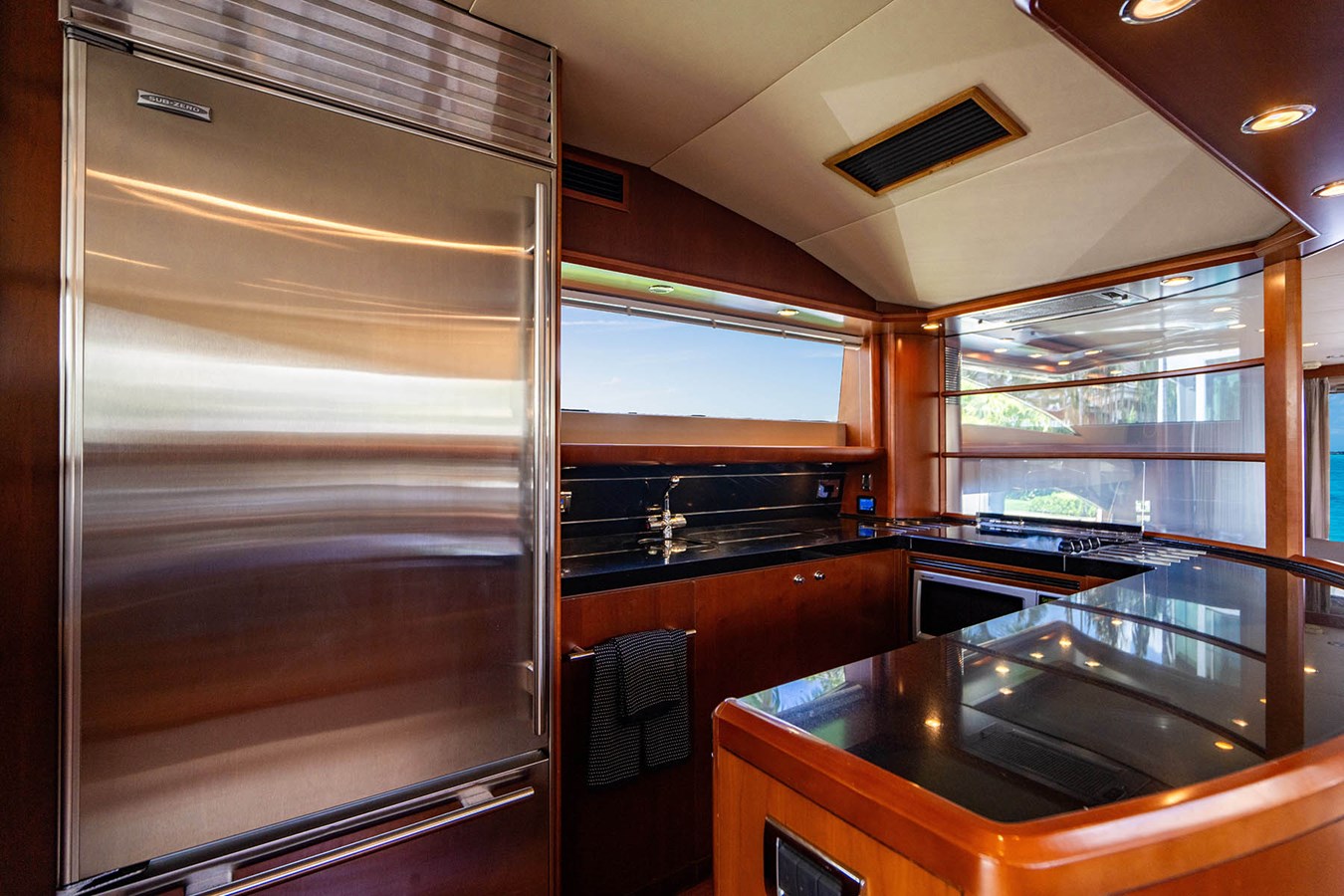

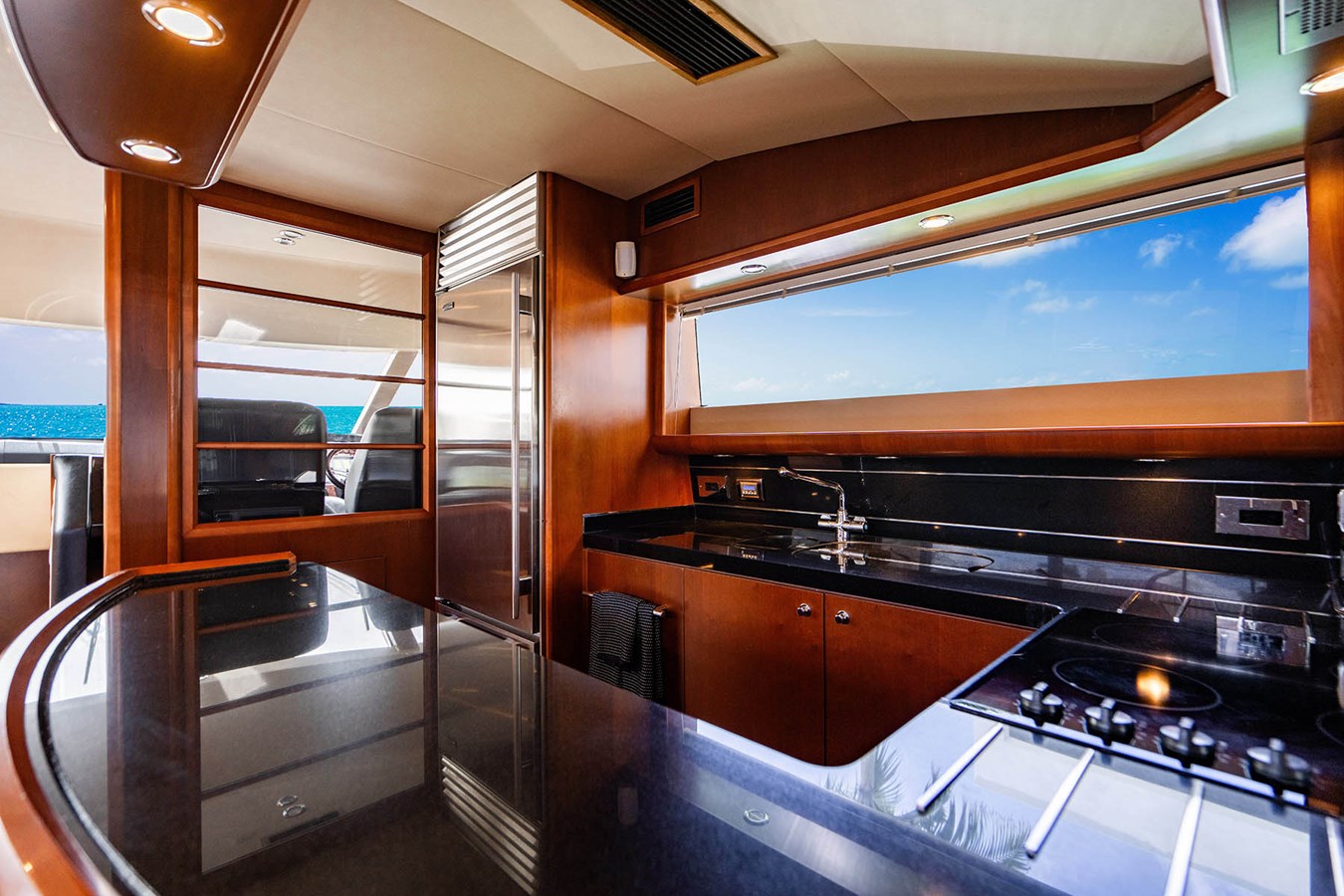

Galley

• Location: To starboard
• Stove top: Four burner, electric glass top
• Stove shut offs: Stove & switchboard

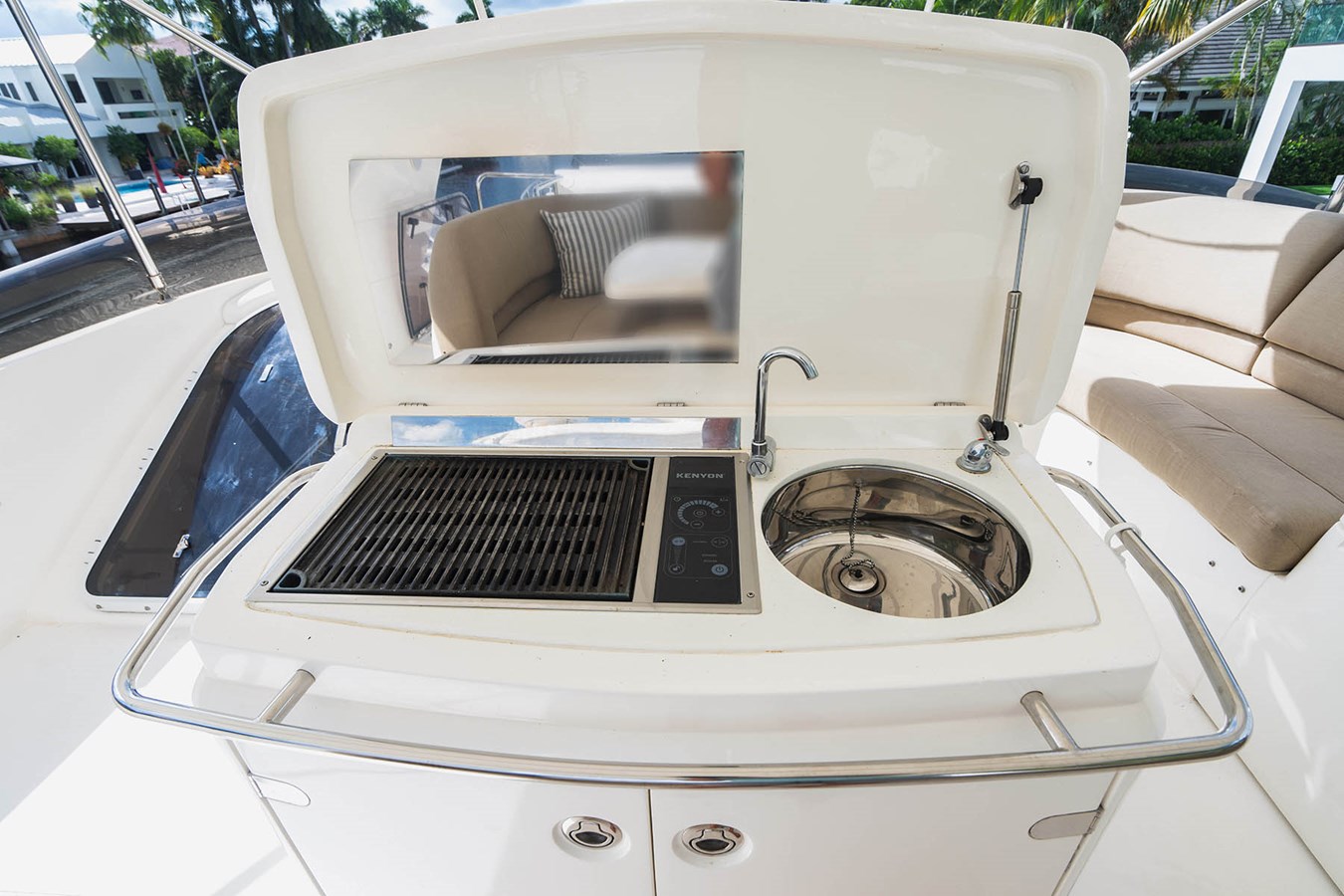

• BBQ: “Neef” on aft deck
• Microwave: “Sharp”
• Convection oven: In above
• Ventilation: Vent hood w/lights
• Refrigerator: “Sub Zero”
• Freezer: In above
• Other refrigeration: “Premium” in salon
• Ice-maker: “Raritan” in salon
• Small appliances: Yes
• Central vacuum system: Yes
• Hot water heater: 45 gallon stainless steel calorifier type
• Water maker: “Sea Recovery” 1400 gpd reported
• Washer/dryer: “Miele” units
• Diswasher: “Miele”
• Galley counter: Granite

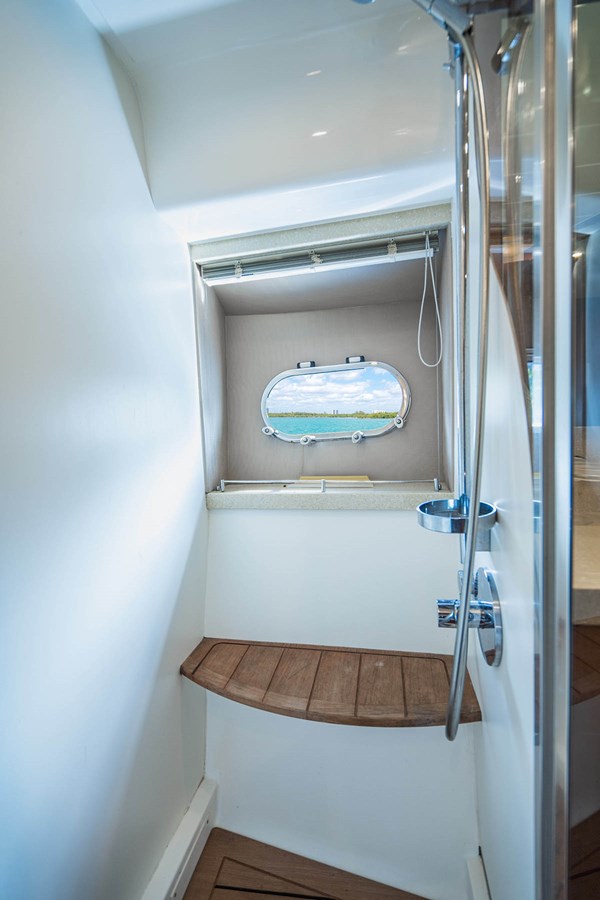

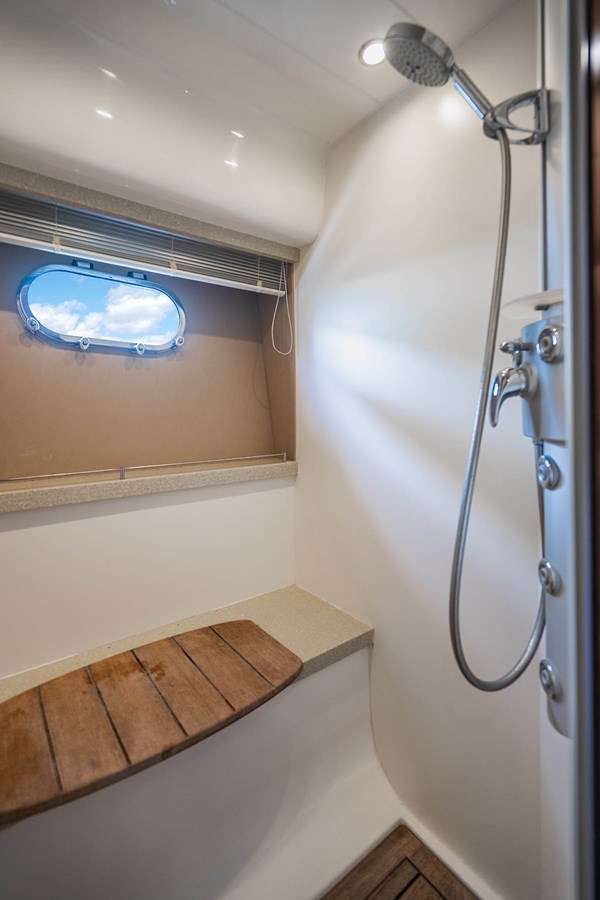

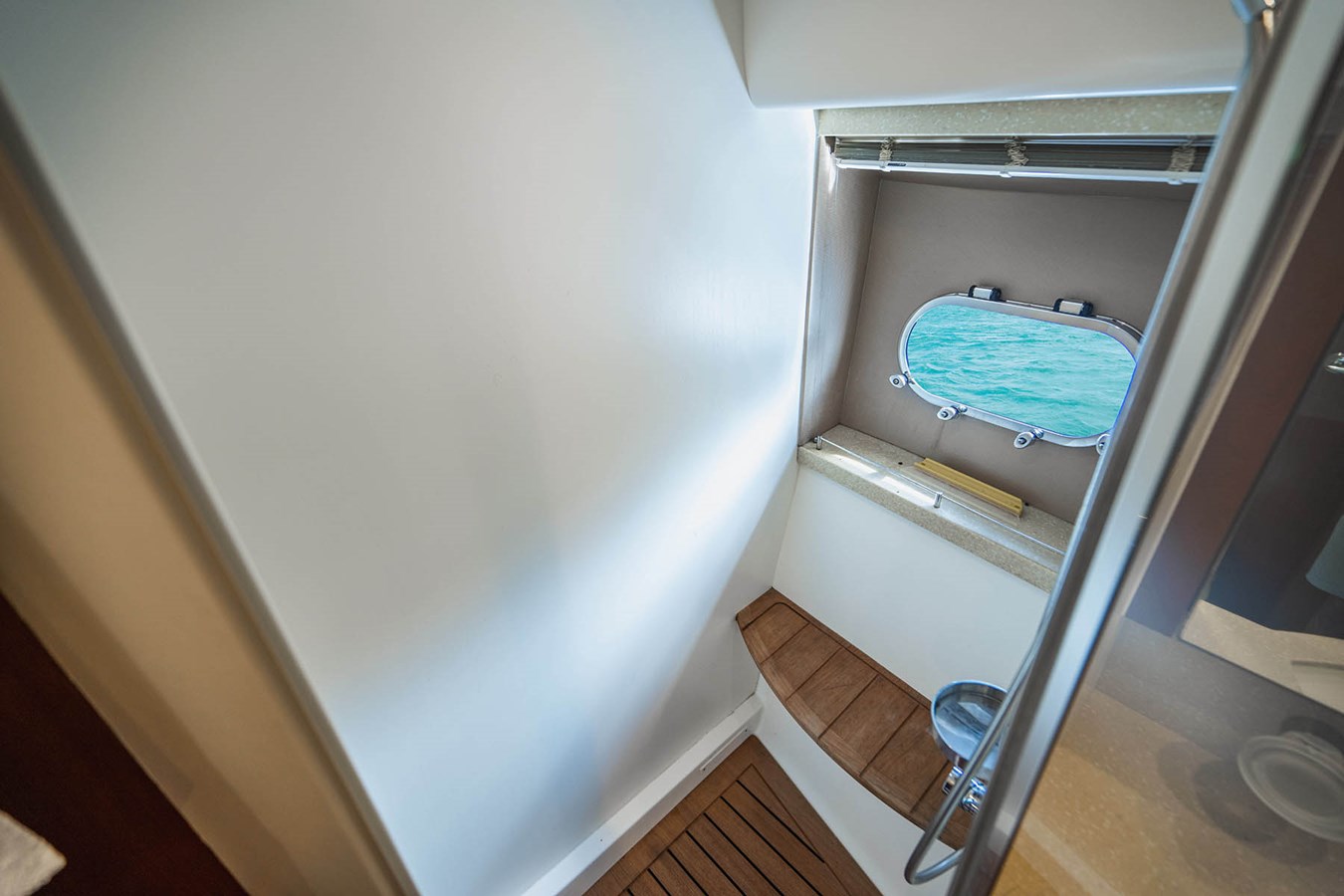

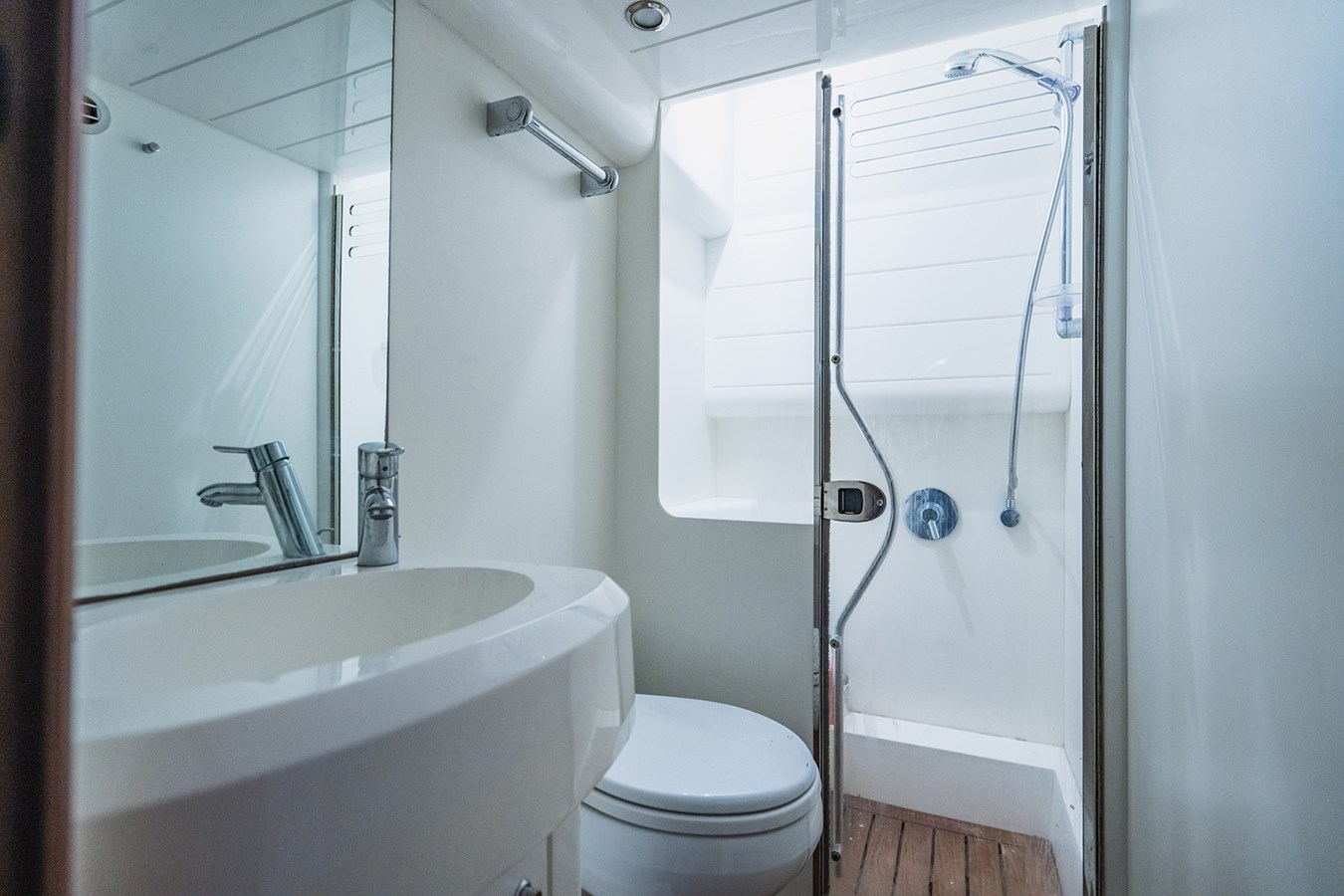

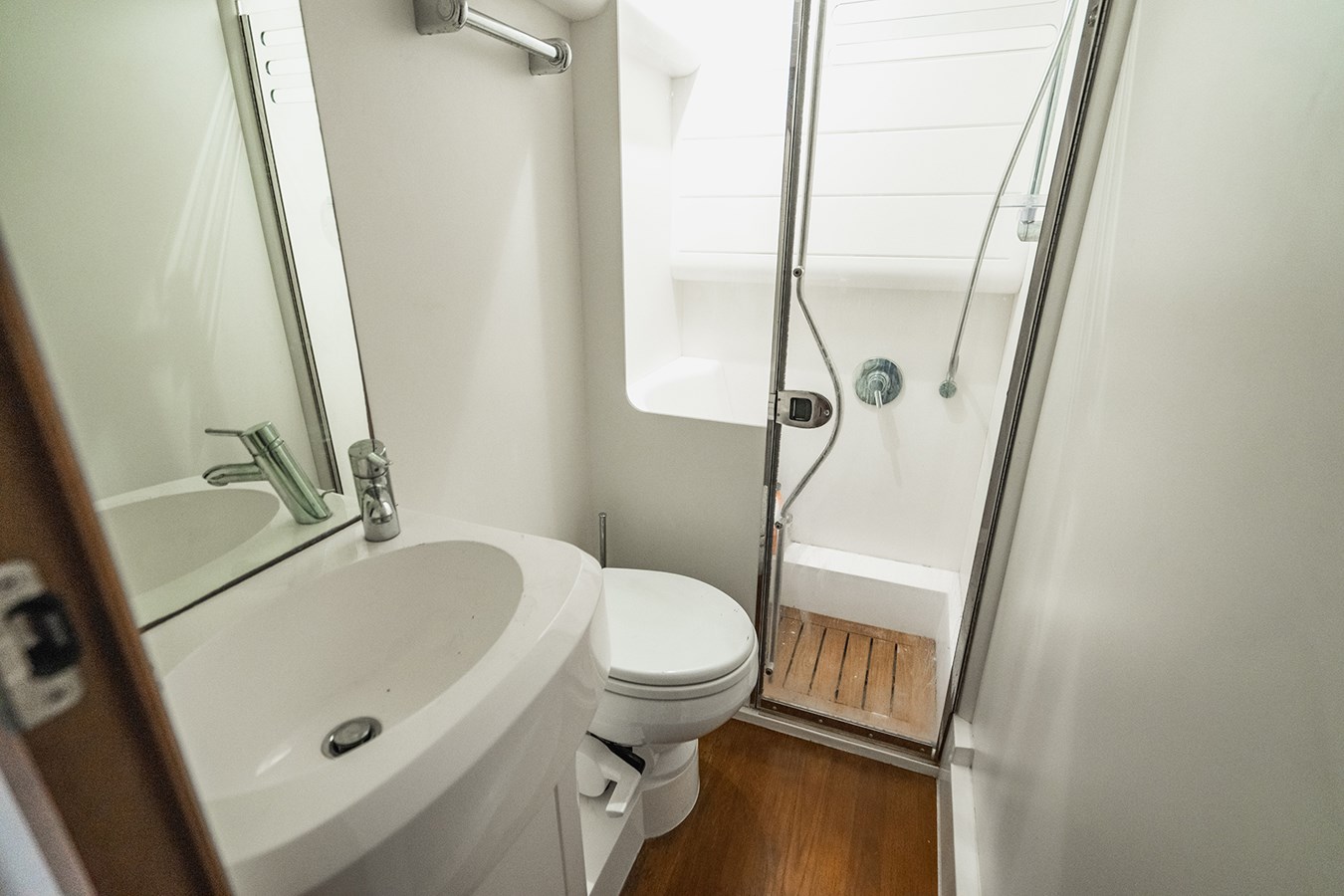

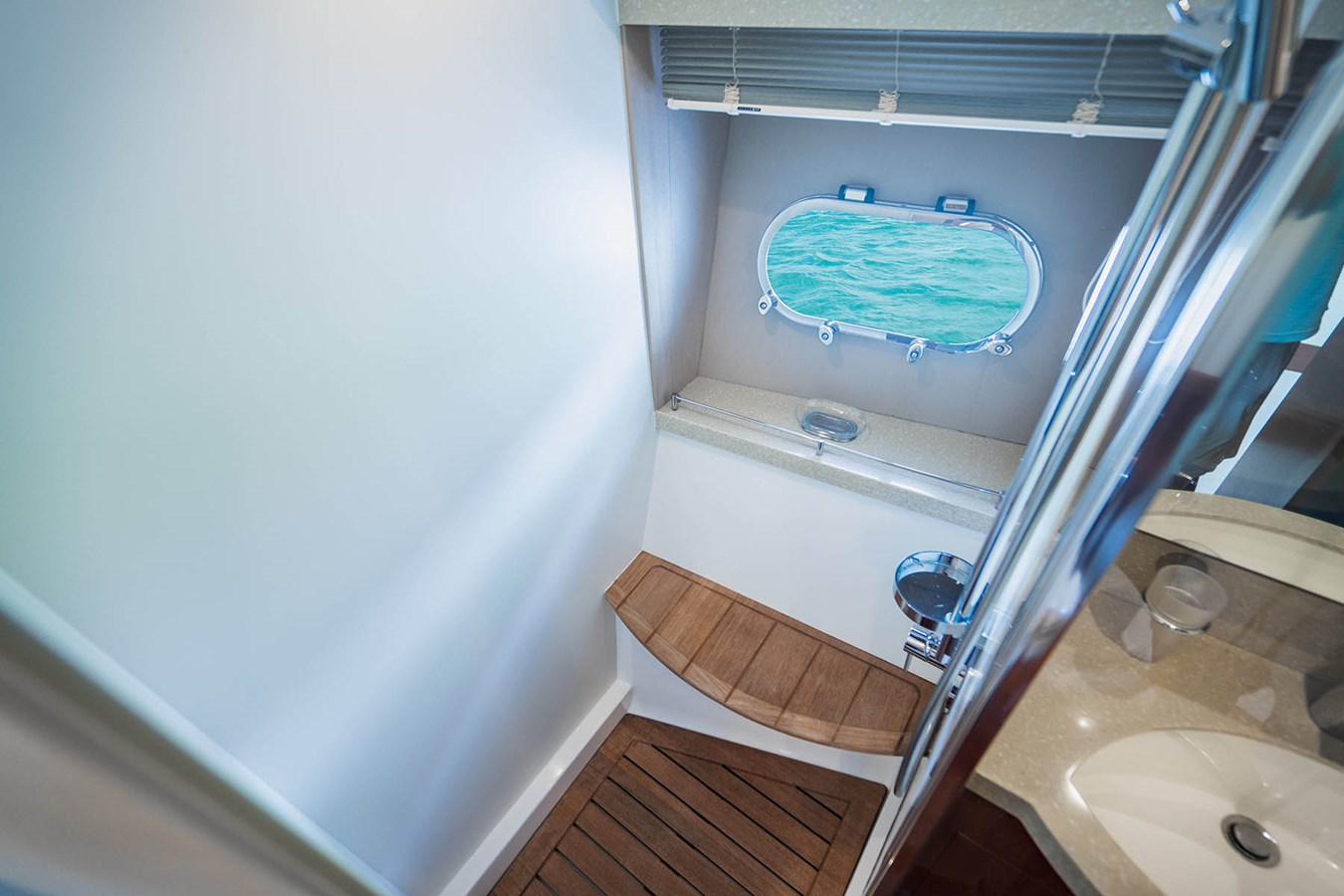

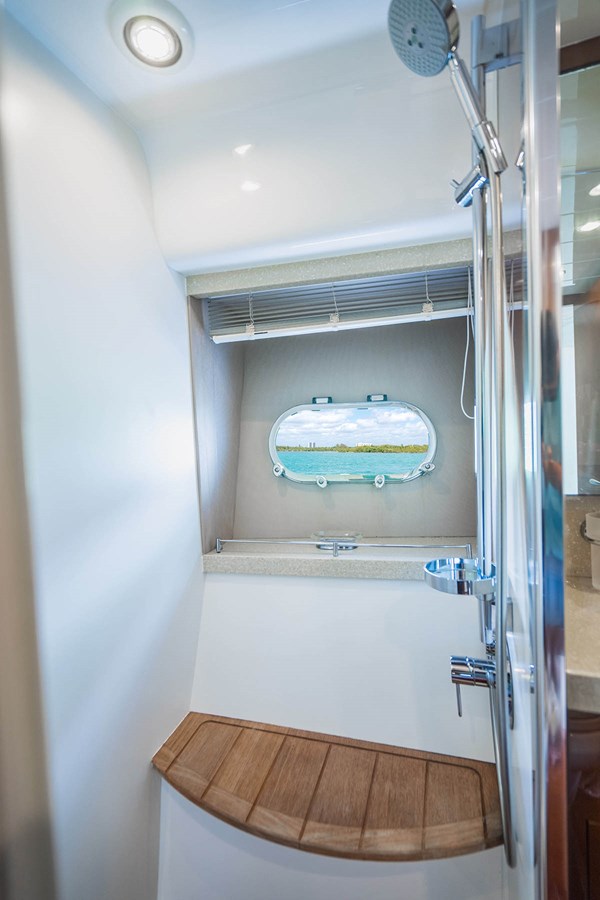

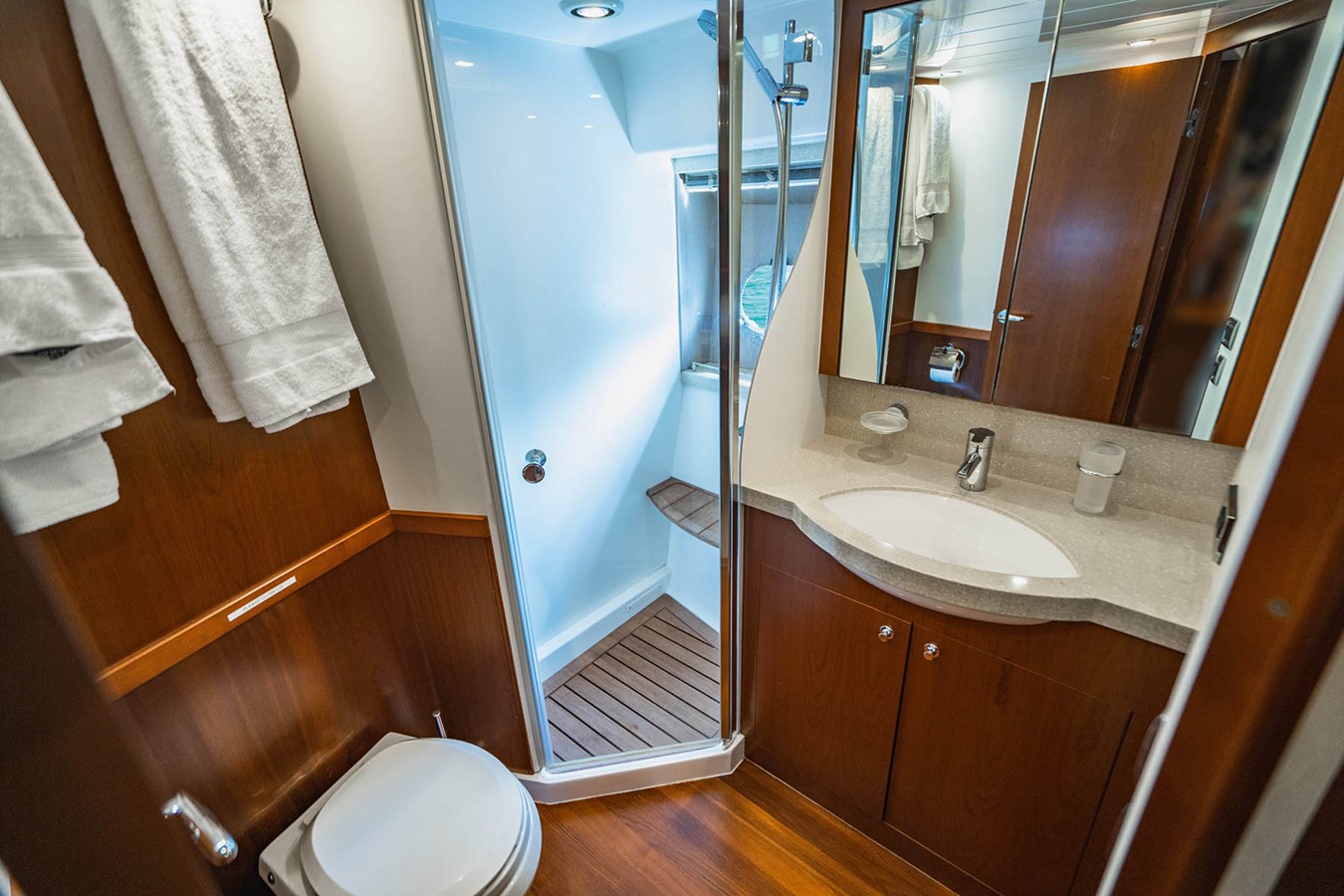

• Shower: Four + deck shower
• Other: Garbage disposal in galley
