GRAYCLIFFS
- Length:
- 33.5m/109'11"
- Builder:
- Feadship
- Year Built:
- 2016
- Year Refit:
- 2024
- Guests:
- 8
- Cabins:
- 4
- Crew:
- 6
- Price:
- €17,000,000

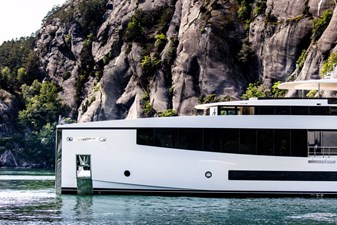

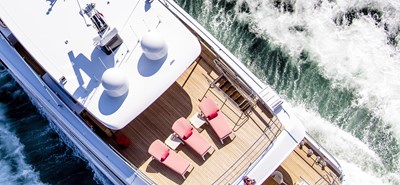

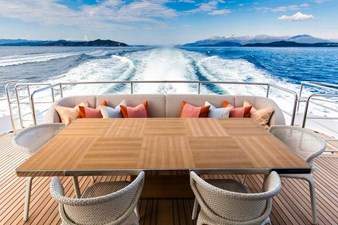

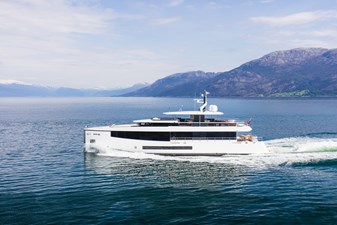

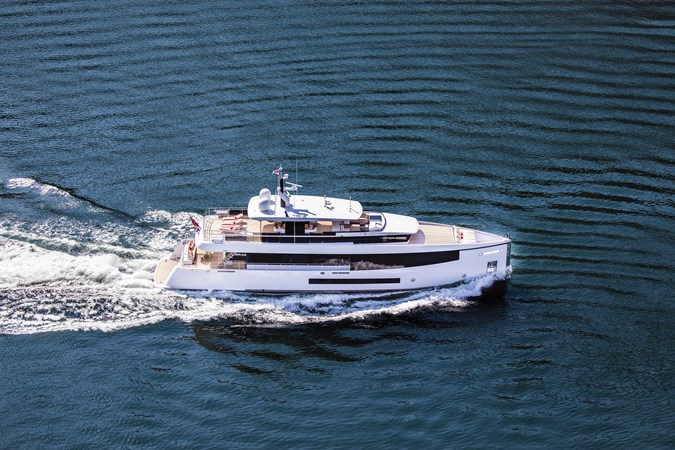

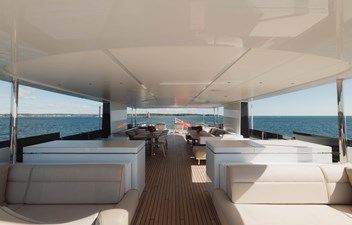

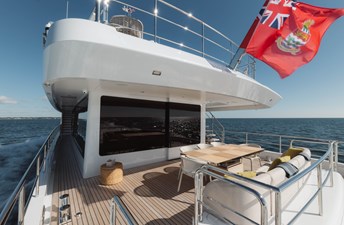

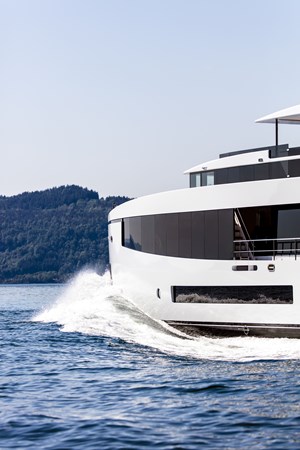

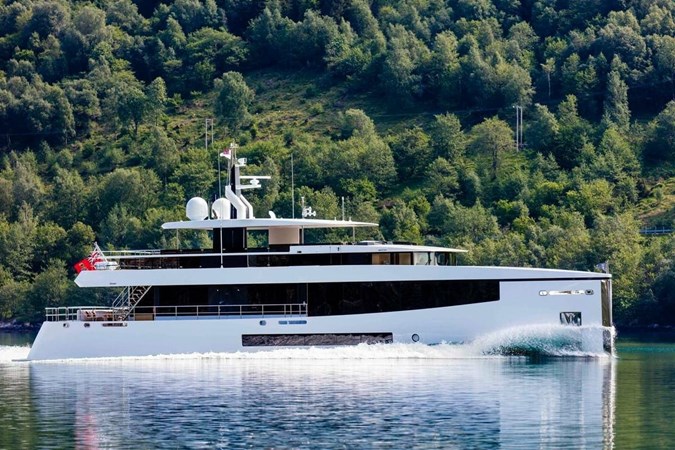

Step onboard Graycliffs (ex-Moon Sand Too), a 33,50-metre Feadship. Graycliffs was conceived for an owner seeking a yacht with a maximum length of 34 metres, shallow draught and full Feadship pedigree. Built in aluminium and boasting a vertical bow and expansive wrap-around windows, her exterior is as purposeful as it is elegant. Inside, Bannenberg & Rowell Design have crafted a refined interior that accommodates up to eight guests across four staterooms, served by a crew of six. With a gross tonnage of 262 GT, Graycliffs delivers a remarkably spacious and tranquil onboard experience – defined by extreme silence and an absence of vibration that set her apart from anything else in this size range. Generous alfresco living areas span multiple decks – from sun loungers and dining on the upper terrace to a welcoming aft deck and swim platform. KEY FEATURES • Rare opportunity to own a Feadship in this highly sought after size category • Interior design by Bannenberg & Rowell • Shallow draft of 1.8m, ideal for coastal cruising • 2.5m ceiling height in main deck salon • Generous VIP cabin on the lower deck that functions as a second master suite
DETAILED DESCRIPTION
#edmiston-espec { font-family: ‘Helvetica Neue LT Std’, ‘Sans’; font-weight: 200; font-style: normal; text-align: justify; text-justify: inter-word; line-height: 1.5em; color: #444; } #edmiston-espec table { border-spacing: 0px; border-collapse: collapse; } #edmiston-espec td { text-align: left; vertical-align: top; padding: 0px; margin: 0px; line-height: 1.5em; } #edmiston-espec th { text-align: left; vertical-align: top; padding: 0px; margin: 0px; width: 5cm; } #edmiston-espec h1 { font-family: ‘Times New Roman’,’Serif’; color: #DB001E; } #edmiston-espec h2 { font-family: ‘Times New Roman’,’Serif’; color: #DB001E; } #edmiston-espec h3 { font-family: ‘Times New Roman’,’Serif’; color: #222; } #edmiston-espec ul { list-style: none; margin: 0; padding: 0 0 0 20px; } #edmiston-espec li.bullet { list-style: disc; }
-
MAIN CHARACTERISTICS
TYPE - Semi Displacement Motor Yacht
BUILDER - Feadship
HULL NO. - 691
IMO NUMBER - 9745275
MMSI NUMBER - 319095700
NAVAL ARCHITECT - De Voogt Naval Architects
EXTERIOR DESIGN - De Voogt Naval Architects
INTERIOR DESIGN - Bannenberg & Rowell
YEAR - 2016
REFIT - 2024
CLASSIFICATION - Bureau Veritas. I Hull Mach, Charter Yacht – Motor – A – Unrestricted Navigation, AUT-UMS
CONSTRUCTION - Aluminium Hull & Superstructure
- Teak Decks
CREW - Up to 6
FLAG - Cayman Islands
ENGINES - 2 x MTU 12V2000M93. 1,340 kW @ 2,450 rpm
GT - 262
-
DIMENSIONS
LOA - 33.50m / 109’11”
BEAM - 7.85m / 25’9″
DRAFT - 1.80m / 5’11” max
-
SPEED & RANGE UNDER POWER
MAXIMUM SPEED - 20.00 knots
CRUISING SPEED - 12.00 knots
RANGE - 3,000nm at 12.00 knots
-
CAPACITIES
ACCOMMODATION - 8 guests in 4 cabin(s)
CREW - 6 crew in 3 cabin(s)
FUEL - 25,000 litres / 6,604 US gallons
FRESH WATER - 5,800 litres / 1,532 US gallons
LUBE OIL - 1,300 litres / 343 US gallons
DIRTY OIL - 2,200 litres / 581 US gallons
GREY WATER - 3,800 litres / 1,004 US gallons
BLACK WATER - 2,300 litres / 608 US gallons
-
ACCOMMODATION

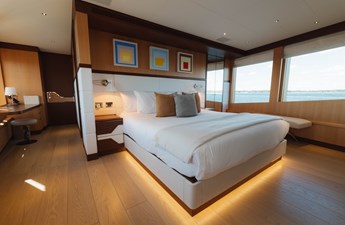

Accommodation for up to 8 guests in 4 cabins and up to 6 crew GUEST CABINS - 1 x Master cabin
- 1 x VIP cabin
- 1 x Double cabin
- 1 x Twin cabin
CREW CABINS - 1 x Captain cabin
- 2 x Crew cabins
-

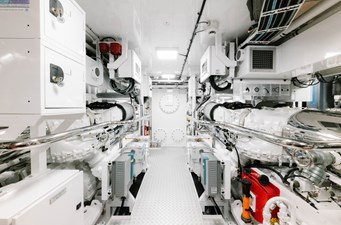

MECHANICAL EQUIPMENT
ENGINES - 2 x MTU 12V2000M93. 1,340 kW @ 2,450 rpm
ENGINE HOURS - Starboard: 3,093 hours
- Port: 3,093 hours
GENERATORS - 2 x Kohler Tier III 70EFOZDJ Generators 70 kW@ 1,500 rpm
GENERATOR HOURS - Port: 8,520 hours
- Starboard: 8,376 hours
GEARBOX - 2 x ZF 3351 / ZF Marine
PROPULSION - Twin screw
PROPELLERS - 2 x 5-blades high skew back fixed pitch, outward turning (1400 diameter)
RUDDER ANGLE - 30 degree turn
STEERING SYSTEM - Full 10 year service done (2025)
STABILISERS - Quantum fins stabilizers QC-1200 Zero Speed
BOWTHRUSTER - 50 kW Ocean Yacht Systems
ELECTRICITY - 400V
SHORE POWER - SP200 105kVA Shore Power Converter
MAIN ENGINE START - Local from engine room/Remove from Pilot House.
GENERATOR START - Local start Kohler panel. Auto start with DEIF units.
CHARGERS - Mastervolt 24/50
CONVERTERS - Mastervolt 24/1500
EMERGENCY HYDRAULICS - Fire Pump
- Diesel Pump
- Bilge Pump
AIR CONDITIONING - Heinen & Hopman, central ducted AC system for worldwide cruising
WATER MAKER - 1 x Spot Zero Seaxchange 1.7 GPM/2,200 GPD
WATER SYSTEM - Spot Zero mobile
SEWAGE SYSTEM - Vacuum jets
FUEL CENTRIFUGE - Connections offshore
FUEL SEPARATOR - Mahle model no KFWA
-
NAVIGATION EQUIPMENT
AIS - Furuno FA50
MAGNETIC COMPASS - Cassens & Plath
GYRO COMPASS - Anschultz Standard 22
FLUXGATE COMPASS - Furuno PG-700
AUTOMATIC PILOT - Simrad AP 70+
ECHO SOUNDER - Yes
RADAR - 2 x Furuno Radar DRS12A with 6ft 12kW scanner
DGPS - Yes
GPS - Furuno GP33
CHART PLOTTER - Furuno NavNet TZ Touch Black Box
NAVTEX - Furuno NX700B
LOG - Yes
WIND INSTRUMENTS - Airmar
SEARCHLIGHTS - Carlisle & Finch
NAVIGATION LIGHTS - Lopo Light LED
HORN - Kahlenberg T3
TILLERS - Non Follow Up: Simrad NF80
- Follow Up: Simrad FU80
RUDDER ANGLE INDICATOR - Simrad IS-80
MISCELLANEOUS - Meteo system
- Chart navigation system
-
COMMUNICATION EQUIPMENT
SATCOM - Inmarsat C with DSC. Thrane & Thrane Sailor 6110
VHF - VHF Radio with DSC
- 2 x Portable GMDSS VHF Jotron TR-20
SSB - SSB radio MF/HF Transceiver with DSC
INTERCOM - Navtex Furuno NX700B
INTERNET - Starlink
MISCELLANEOUS - Epirb Jotron Tron60GPS
- Sarts Jotron,Tronsart-20
- MH/HF (Fixed) Sailor 6310 MF.HF 250w
-
DECK EQUIPMENT
ANCHOR WINDLASSES - Muir
AFT WARPING CAPSTANS - Muir
ANCHORS - 2 x 160 KG Manson (Polished stainless steel)
ANCHOR CHAINS - 2 x 147.5m
BOAT CRANE & DAVITS - Removable 200kg manual davit on aft Flybridge
PASSERELLE - Akerboom Custom Retractable
SIDE BOARDING LADDER - Marquipt
SIDE BOARDING GANGWAY - Yes
SWIMMING PLATFORM - Yes
AWNINGS - Yes
COVERS - Yes
-
ENTERTAINMENT EQUIPMENT
-
GENERAL
- Custom AV system installed during build by specialist Marine AV integrators VBH. System with Crestron control via I-Pads in each area. There are Apple TVs and a central I-Tunes server for movie storage.
- Cisco based WiFi network connected to a 4G GSM Gateway.
- Satellite TV antenna installed on the hardtop.
- Cabling preparation for future installation of a V-Sat communications system.
- All blinds in guest areas (excl bathrooms) are electrically controlled (via manual switches).
-

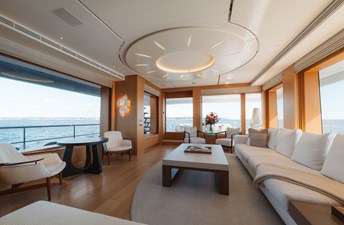

MAIN SALON
- 55” LED TV
- Blu-ray
- Surround sound
- iPod docks
-
MAIN DECK AFT
- High-quality local audio system with 2 pairs of speakers
-

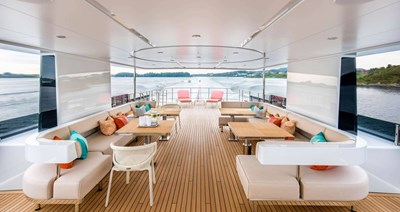

FLYBRIDGE
- High-quality local audio system with 3 pairs of speakers
-
OWNER’S SUITE
- 46” LED TV
- Blu-ray
- Surround sound
- iPod dock
- Good quality local system
-
VIP CABIN
- 40” LED TV
- Blu-ray
- Surround sound
- iPod dock
- Good quality local system
-

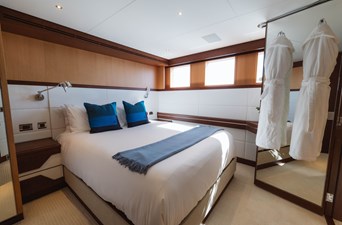

GUEST CABINS
- 32” LED TV
- Blu-ray
- iPod dock
- Good quality local system
- 2 x speakers
-
CAPTAIN’S CABIN
- 22” LED TV
- iPod dock
- CD/DVD with two speakers
-
CREW
- 32” LED TV
- iPod dock
- CD/DVD with two speakers
-
-
GALLEY & LAUNDRY EQUIPMENT
GALLEY - 1 x Gaggenau ceramic cooktop (4 zone)
- 1 x Gaggenau ovens 200 series
- 1 x Gaggenau microwave 200 series
- 1 x Gaggenau grill plate
- 1 x Hood
- 1 x Full height marine refrigerator
- 1 x 3/4 height marine freezer
- 1 x Undercounter refrigerator
- 1 x Ice cube maker
- 1 x Dishwasher
FLYBRIDGE DECK - 2 x Drink Fridges
- 1 x Hoshizaki Icemaker
- 1 x Kenyon Electric BBQ Griddle
- 1 x Sink
MAIN ENTRANCE - 1 x Undercounter U-Line Wine Cooler
STERN GARAGE - 1 x Gram Undercounter Refrigerator
- 1 x Gram Undercounter Freezer
LAUNDRY - 1 x Miele Professional Range Washing Machine
- 1 x Miele Professional Range Tumble Dryer
CREW - 1 x Miele Undercounter Fridge
-
SECURITY & SAFETY EQUIPMENT
SAFETY - 2 x 16 Man life rafts (Flybridge)
- 2 x 8 Man life rafts (MD Aft ceiling)
- Imtech – Free technics alarm and monitoring system
SECURITY - CCTV system with 6 cameras
FIRE FIGHTING - Novec system for Engine Room
- Azcue centrifugal fire pump
- Lombardini fire pump
- Tyco fire detection and alarm system
-
TENDERS & WATERSPORTS EQUIPMENT
TENDER - 1 x 5.60m Pascoe International
-
REFIT & MAINTENANCE NOTES
-
2025:
- Fixed fire helon tank 10-year service completed
- Ice maker replaced
-
2023/2024:
- Underwater lights replaced
- Air conditioning compressor replaced
- Additional Furuno radar added
- Transom door hydraulic system rebuilt
- Magnus power transformer added
- Washing machine replaced
- Cooktop replaced
-
2021 to present:
- Annual ceramic coating on paint (hull and superstructure)
- Annual bottom paint
-
-
COMMENTS
Step onboard Graycliffs (ex-Moon Sand Too), a 33,50-metre Feadship. Graycliffs was conceived for an owner seeking a yacht with a maximum length of 34 metres, shallow draught and full Feadship pedigree. Built in aluminium and boasting a vertical bow and expansive wrap-around windows, her exterior is as purposeful as it is elegant.

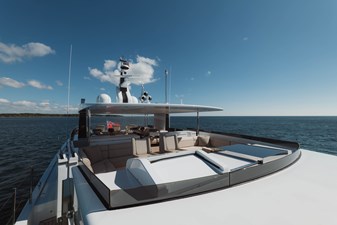

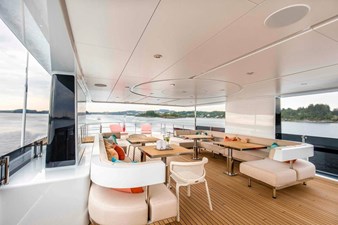

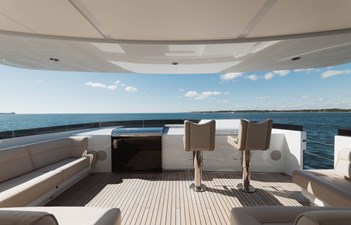

Inside, Bannenberg & Rowell Design have crafted a refined interior that accommodates up to eight guests across four staterooms, served by a crew of six. With a gross tonnage of 262 GT, Graycliffs delivers a remarkably spacious and tranquil onboard experience – defined by extreme silence and an absence of vibration that set her apart from anything else in this size range. Generous alfresco living areas span multiple decks – from sun loungers and dining on the upper terrace to a welcoming aft deck and swim platform.
-
KEY FEATURES
- Rare opportunity to own a Feadship in this highly sought after size category
- Interior design by Bannenberg & Rowell
- Shallow draft of 1.8m, ideal for coastal cruising

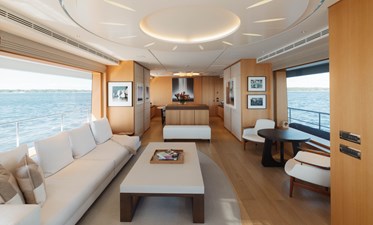

- 2.5m ceiling height in main deck salon
- Generous VIP cabin on the lower deck that functions as a second master suite
- Expansive upper terrace for relaxing and entertaining
-
- Builder
- Feadship
- Year of build
- 2016
- Year of refit
- 2024
- Top speed
- 20 Knots
- Cruising speed
- 12 Knots
- Yacht length
- 33.5m/109'11"
- Yacht type
- Motor Yacht
- Beam
- 7.85m
- Draft
- 1.8m
- Number of guests cruising
- 8
- Number of guests sleeping
- 8
- Number of cabins
- 4
- Crew no.
- 6
- Gross Tons
- 262.00
